Custom Connector Pins
CNCPioneer custom precision connector pins for automotive, aerospace, industrial, EV, telecom and medical programs. We support micro signal pins, high-current power contacts, functional plating, full material traceability and PPAP or FAIR documentation.
What Is Connector
Pin Manufacturing?

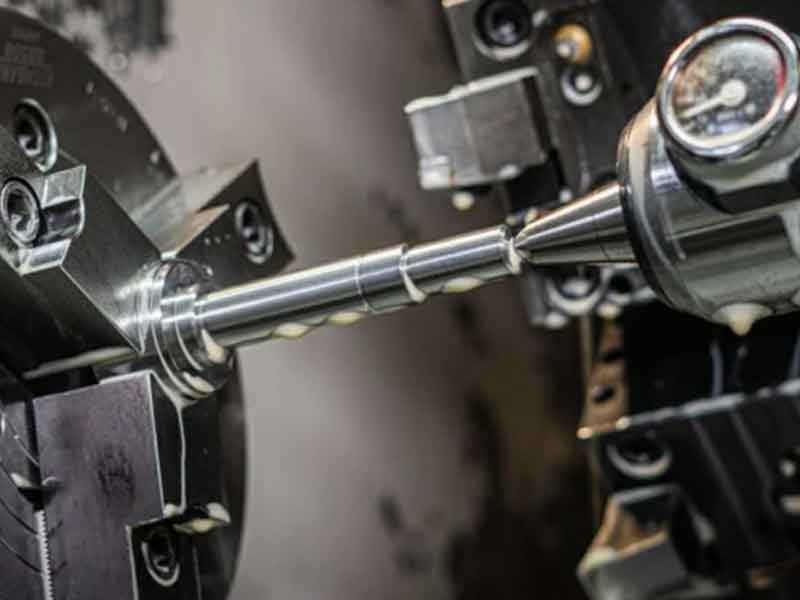

Connector pin manufacturing is the precision machining of male contact pins, terminal pins, studs and insert contacts that create repeatable electrical connections with mating sockets.
Good pins are controlled as functional parts, not just turned metal pieces. Diameter, roundness, surface finish, material, plating thickness and retention geometry all affect mating force, contact resistance, crimp quality and long-term reliability.
-
Swiss CNC pin accuracy Contact pins from Ø0.3mm with diameter tolerance to ±0.003mm, roundness to ±0.002mm and controlled concentricity on slender geometries.
-
Material and plating control Brass, phosphor bronze, beryllium copper, copper, stainless steel, titanium, Kovar, MP35N and Pt-Ir can be matched with gold, silver, tin, nickel or palladium finishes.
-
Production-ready quality records Material certificates, CMM reports, XRF plating records, RoHS/ELV certificates, PPAP and FAIR packages are available according to program requirements.
-
China pin connector supply Shenzhen manufacturing economics with international documentation, suitable for prototype validation, cost-down projects and long-term connector pin supply.
Why Swiss CNC for
Connector Pins?
Swiss CNC machining supports long, slender pins near the cutting tool, helping hold diameter, concentricity and finish on small contact features. That control is what stabilizes mating force, plating performance and electrical contact behavior.
Stable Contact Diameter
Pin diameter tolerance to ±0.003mm helps control mating force and contact resistance, especially in high-pin-count connector assemblies.
100% CCD Sorting Option
Critical pin diameters and crimp barrel bores can be automatically sorted to tighten outgoing variation and support high-volume automotive requirements.
Contact Surface Finish
Ra 0.2µm surface finish on contact zones supports consistent plating coverage and reduces contact resistance variation across production lots.
Retention and Crimp Features
Swiss CNC and mill-turn machining can combine pin shafts, shoulders, retention lances, anti-backout features and crimp barrel geometry in one controlled process.
Automotive Process Control
SPC, Cpk reporting, MSA, control plans and PPAP Level 1-5 support connector pin programs for IATF 16949 supply chains.
Lower Total Sourcing Cost
CNCPioneer combines precision pin machining with China manufacturing economics, helping teams reduce cost while keeping inspection and traceability requirements intact.

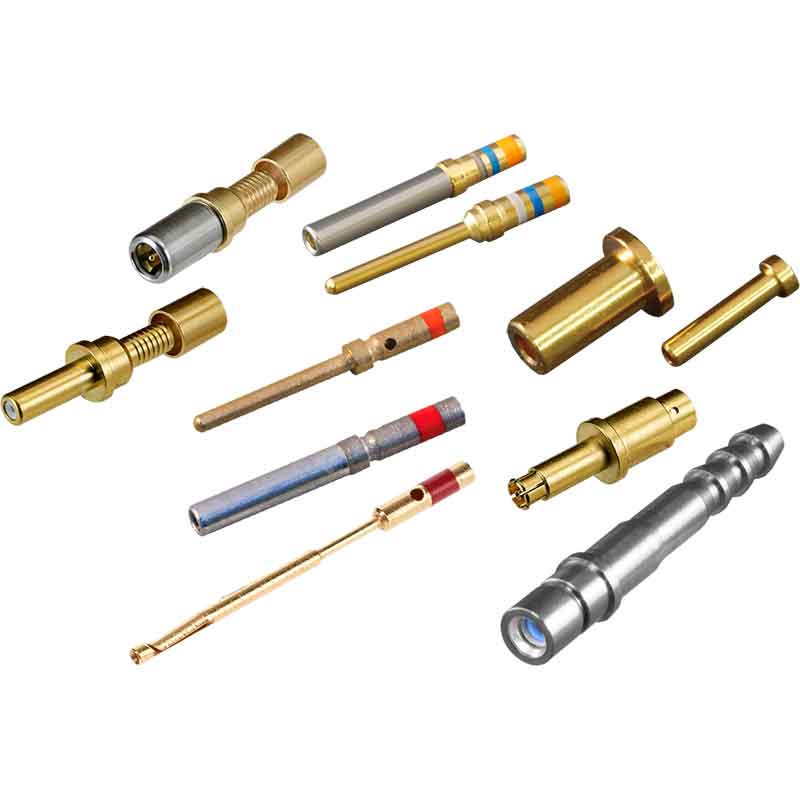

Connector Pin Types We Manufacture
From micro signal contacts to large power pins, CNCPioneer machines connector pin families used in harnesses, circular connectors, RF interfaces, EV chargers and implantable medical devices.
Automotive Connector Pins
Signal pins, sealed connector contacts, EV interlock contacts, charging pins, Ethernet contacts and ADAS sensor pins in brass or phosphor bronze with tin or selective gold plating. PPAP documentation available.
MIL-DTL-38999 Aerospace Pins
Contact pins for MIL-DTL-38999, MIL-DTL-83513, MIL-DTL-26482 and EN 2997 connector programs, with hard gold plating support, AS9100D production and FAIR per AS9102.
Industrial Connector Pins
M8, M12, Han series, DIN 41612 and sealed industrial connector contacts for automation, sensors, robotics, power distribution and harsh-environment equipment.
EV & High-Current Power Pins
CCS, CHAdeMO, GB/T, AGV docking and robot tool-changer power contacts using high-conductivity copper and silver plating where low resistance and thermal performance matter.
RF & Telecom Connector Pins
SMA, N-type, BNC, TNC, 2.92mm and 2.4mm center conductor pins, plus high-density data connector pins for server, storage and module interfaces.
Medical & Implantable Device Pins
Connector pins for IS-1, DF-1, IS-4 and DF-4 systems in Pt-10%Ir, MP35N, titanium and other biocompatible materials, with full lot traceability.
Industries
CNCPioneer supplies connector pin manufacturers, connector OEMs, harness assemblers and equipment builders that need precise contact geometry plus reliable production documentation.
Automotive
Vehicle wiring harness pins, ECU contacts, sealed connector interfaces, EV contacts and ADAS sensor connector pins. IATF 16949, PPAP and RoHS/ELV support available.
Aerospace & Defense
MIL-spec circular, Micro-D and bayonet connector contacts with AS9100D production, FAIR documentation and hard gold plating records for flight and defense programs.
Industrial Automation
M8/M12 sensor pins, industrial power contacts, backplane pins and sealed contacts for automation equipment, robotics and harsh-environment systems.
Electric Vehicles & Energy
Miniature signal contacts and large DC power pins for charging connectors, battery systems, docking stations and power distribution equipment.
Telecommunications & Data Centers
RF center pins, high-density signal pins and module connector contacts for telecom infrastructure, data centers and high-speed electronic assemblies.
Medical Devices
Implantable and instrument connector pins using biocompatible alloys, clean handling options, electropolished surfaces and complete lot traceability.
Connector Pin Manufacturing Capabilities
Our Shenzhen facility combines Swiss CNC lathes for miniature contacts with MAZAK mill-turn centers for larger power pins and complex connector features.
Miniature and Standard Pin Turning
78+ Swiss CNC lathes for pin diameters from Ø0.3mm, diameter tolerance to ±0.003mm, roundness to ±0.002mm and contact surface finish to Ra 0.2µm.
Power Pin and Complex Geometry Machining
66+ MAZAK mill-turn centers for larger connector contacts, EV charging pins, Han series contacts, AGV docking contacts and features requiring milling plus turning.
Signal to High-Current Contacts
Micro signal pins, standard signal contacts, standard power pins and high-current contacts for 0.5A miniature interfaces through 400A power applications.
Connector Pin Alloys
C3604, C2600, C2680, C51000, C17200, C11000, 303, 316L, 17-4PH, titanium, Kovar, MP35N, Pt-10%Ir, Paliney 7 and other specified connector alloys.
Dimensional and Plating Verification
Mitutoyo CMM, air gauges, bore gauges, surface profilometry, CCD sorting and XRF plating thickness measurement support prototype approval and production release.
PPAP, FAIR and Shipment Records
PPAP Level 1-5, FAIR per AS9102, CMM reports, XRF records, material certificates, RoHS/ELV certificates, SPC reports and Certificate of Conformance.
Materials for Connector Pins
Material choice determines conductivity, spring behavior, crimp ductility, corrosion resistance, biocompatibility and plating performance. The tabs below keep the alloy options scannable.
C3604 Free-Cutting Brass
High machinability and stable production economics for automotive, industrial and telecom connector pins.
C2600 Cartridge Brass
High ductility and low lead content for RoHS/ELV connector pins and crimp barrel applications.
C2680 Yellow Brass
Balanced machinability and ductility for high-volume connector contacts requiring lead-free compliance.
CuZn37 / CW508L
European brass option for ELV-sensitive automotive and industrial connector pin programs.
C51000
Good spring behavior and corrosion resistance for signal pins and moderate-cycle contacts.
C17200 AT
High strength, spring performance and fatigue resistance for aerospace and high-reliability contacts.
C11000 ETP Copper
High conductivity for EV charging, industrial power and high-current connector pin applications.
303 / 316L
Corrosion-resistant and non-magnetic options for outdoor, marine, medical and harsh-environment contacts.
17-4PH
High-strength stainless option for structural contact components and demanding mechanical loads.
Grade 5 Ti-6Al-4V
Lightweight, corrosion-resistant and non-magnetic for aerospace, defense and medical connector pins.
ASTM F15 Kovar
Matched expansion alloy for glass-to-metal and ceramic hermetic connector feedthrough pins.
MP35N / UNS R30035
High-strength, corrosion-resistant and biocompatible alloy for implantable connector pins.
Pt-10%Ir
Biocompatible, hard and corrosion-resistant material for cardiac and neural implant contacts.
Paliney 7
Precious metal alloy for burn-in sockets, test connectors and high-temperature spring contact applications.
Plating & Surface Finishing
Connector pin plating is specified for contact resistance, corrosion resistance, mating-cycle life and solderability. CNCPioneer coordinates qualified finishing and verifies plating thickness by XRF when required.
Gold Plating
Hard gold for aerospace, high-reliability and high-cycle contact zones. Selective gold reduces precious metal use when only the mating area needs premium contact performance.
Silver Plating
Preferred for high-current power pins where low contact resistance and thermal performance are more important than tarnish sensitivity.
Tin Plating
Common for automotive and industrial connector pins because it balances solderability, corrosion resistance, compliance and cost. Matte tin is often preferred for whisker risk control.
Palladium-Nickel Plating
A cost-effective hard contact finish for moderate-cycle industrial and telecom connectors that need better wear life than tin without full gold cost.
Nickel Underplate
Used beneath gold, silver and palladium finishes to reduce base-metal diffusion and improve long-term stability on plated connector pin contact zones.
Rhodium Plating
Ultra-hard finish for very high mating-cycle applications such as test fixtures, burn-in sockets and high-throughput electronics assembly contacts.
Gold, silver, tin, palladium-nickel, nickel and rhodium finishes can be supplied with XRF thickness records, adhesion checks, corrosion test records and plating certifications where specified.
Quality Assurance Process
The quality flow is built around the variables that most affect connector pin performance: drawing requirements, alloy condition, first article dimensions, in-process drift, plating thickness and final documentation.
Contract & Drawing Review
Engineering reviews pin geometry, connector series requirements, material callouts, plating notes, special characteristics and PPAP or FAIR needs before production release.
Incoming Material Verification
Material certificates, alloy composition, hardness, temper and restricted-substance requirements are checked and linked to the production lot.
First Article Inspection
CMM and gauge checks confirm contact diameter, roundness, length, shoulder geometry, crimp bore, retention features and surface finish before volume production.
In-Process Statistical Control
SPC, tool-life control, air gauging and optional CCD sorting help prevent drift on critical pin dimensions during production.
Plating Verification
XRF measurement verifies coating thickness on contact zones, with adhesion, visual and corrosion checks added when required by the drawing or specification.
Documentation & Shipment
Shipment packages can include material certs, CMM reports, XRF records, RoHS/ELV declarations, PPAP, FAIR and Certificate of Conformance.
Quality System Support
Connector pin programs often fail because a supplier can machine the shape but cannot support the paperwork, repeatability and release process. CNCPioneer supports both machining and program documentation.
Automotive PPAP Level 1-5
PPAP packages can include process flow, PFMEA, control plan, MSA, dimensional results, material records and capability studies for special characteristics.
- IATF 16949 support
- SPC and Cpk reporting
- MSA / Gage R&R available
100% CCD Diameter Sorting
CCD sorting can be applied to contact OD, crimp barrel bore and other measurable critical features when programs require tighter outgoing variation.
- Contact OD sorting
- Bore sorting
- Production-speed screening
XRF Plating Verification
XRF records verify coating thickness for gold, silver, tin, nickel and palladium finishes and can be included with each production lot.
- XRF measurement by lot
- Plating certification
- Adhesion checks when specified
Aerospace FAIR & AS9100D
AS9100D production and FAIR per AS9102 support aerospace connector pin programs requiring traceability, dimensional evidence and certificate packages.
- FAIR per AS9102
- Material traceability
- Certificate of Conformance
Connector Pin Manufacturing FAQ
Short answers to the questions buyers usually ask before sending drawings, samples or competitor cross-reference parts.
The contact outer diameter is usually the most important dimension because it drives mating force, retention behavior and contact resistance. CNCPioneer controls this with Swiss CNC machining, gauge checks and optional 100% CCD sorting for critical features.
Tin is usually the cost-effective choice for standard automotive harness pins. Gold is used when the contact needs lower resistance drift, higher mating-cycle life or stronger reliability margins in safety-critical or harsh operating conditions.
Yes. We support MIL-DTL-38999 and related aerospace connector contact programs with AS9100D production, hard gold plating coordination, dimensional inspection and FAIR documentation per AS9102.
C2600 and C2680 are common alternatives when lead restrictions rule out free-cutting brass. CuZn37 / CW508L is also used for European automotive and industrial programs with ELV requirements.
The comparison should be made by drawing tolerance, inspection method, plating record and traceability package. CNCPioneer uses Swiss CNC machining, CMM inspection, CCD sorting and XRF verification to support equivalent technical evidence at more competitive production economics.
Simple brass or phosphor bronze prototypes usually take 5-12 business days depending on plating and inspection requirements. Aerospace, medical or specialty alloy programs may require longer material and documentation lead time.
Prototype orders can start from small qualification quantities, while production programs can scale to scheduled blanket orders. MOQ depends on material, plating, inspection level and packaging requirements.
Get a Quote for Connector Pin Manufacturing
Upload your connector pin drawing, connector series requirement or reference sample. CNCPioneer will review material, tolerance, plating, inspection and documentation needs, then return DFM feedback and a production quote within 24 hours.
