Hydraulic Fitting
Manufacturing Specialist
CNCPioneer is a precision hydraulic fitting manufacturer and certified hydraulic fitting manufacturing specialist delivering NPT, BSPP, BSPT, JIC, ORFS, SAE, and Metric thread hydraulic hose fittings, hydraulic adapter fittings, hydraulic pipe fittings, and hydraulic union fittings — ±0.01mm thread pitch diameter tolerance, 10,000 PSI pressure rating verification, and 100% thread gauge inspection for every lot.
What Is Hydraulic Fitting
Manufacturing?

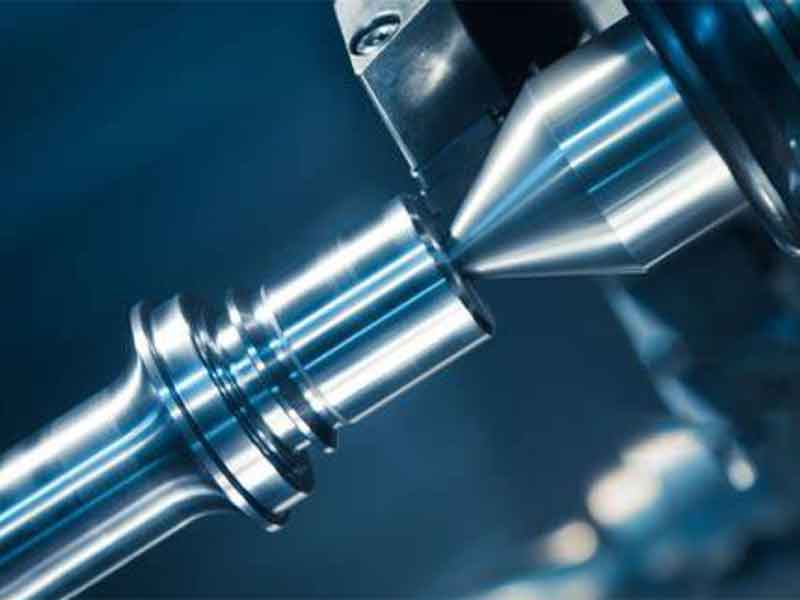

Hydraulic fitting manufacturing is the precision production of machined metal components — hydraulic hose fittings, hydraulic adapter fittings, hydraulic pipe fittings, hydraulic union fittings, and specialized high-pressure connector elements — that establish leak-free, pressure-rated connections between hydraulic hoses, tubes, pipes, and system components in mobile machinery, industrial equipment, aerospace actuation, agricultural implements, construction vehicles, oil and gas systems, and marine hydraulics.
Hydraulic fitting manufacturing differs fundamentally from standard mechanical connector manufacturing in one defining requirement: every thread form, seat angle, and bore diameter must simultaneously seal against pressurized fluid — often exceeding 3,000 PSI in standard systems and 10,000 PSI in high-pressure applications — while resisting mechanical loosening from vibration, thermal cycling, and impulse pressure loading. A thread pitch diameter error of 0.02mm that has negligible effect on a static mechanical joint produces measurable leakage under 6,000 PSI cyclic pressure — making simultaneous control of thread form accuracy, seat surface finish, and bore concentricity the foundational challenge of hydraulic fitting manufacturing.
-
Thread Form Precision ±0.01mm NPT, BSPP, BSPT, JIC 37° flare, ORFS O-ring face seal, SAE O-ring boss, Metric DIN 3853, and UN/UNF thread forms held to ±0.01mm pitch diameter — maintaining seal integrity across production lots for all standard and custom hydraulic fitting series.
-
3,000 to 10,000+ PSI Pressure Range Standard hydraulic hose fittings to 3,000 PSI · Medium-pressure hydraulic adapter fittings to 6,000 PSI · High-pressure hydraulic pipe fittings and hydraulic union fittings to 10,000+ PSI · Burst pressure testing to 4× working pressure for critical hydraulic fitting manufacturing programs.
-
100% Thread Gauge Inspection Included Go/no-go thread gauge inspection and seal seat optical verification confirming thread form conformance and seat surface integrity before shipment on every hydraulic fitting manufacturing lot requiring thread specification.
-
Custom Hydraulic Fitting Manufacturing Proprietary interface geometries, non-standard thread forms, mixed-material adapter transitions, and integrated valve-component designs — DFM review and thread feasibility analysis within 24 hours for every custom hydraulic fitting program.
Why Precision CNC for
Hydraulic Fitting Manufacturing?
Hydraulic fitting manufacturing's pressure-sealing requirement demands dimensional precision beyond standard plumbing connector capability. CNC turning and milling technology eliminates thread form variation and seat surface inconsistency — enabling the thread pitch accuracy, 60°/37°/45° seat angle precision, and Ra 0.4μm surface finish that leak-free hydraulic fitting performance requires from 0 PSI to 10,000+ PSI.
Thread Pitch Diameter ±0.01mm
The thread pitch diameter governs seal integrity in NPT and BSPP tapered thread systems. A pitch diameter error of ±0.01mm produces measurable thread engagement variation and potential leakage path formation under cyclic pressure — CNC thread machining with monitored tool wear compensation maintains this tolerance from 1/8" NPT to 2" BSPP hydraulic fitting bodies.
Seat Angle ±0.5°
JIC 37° flare seat, BSPP 60° cone seat, and ORFS flat face seat angle error of ±0.5° creates localized contact stress concentration and deformation under pressure — producing micro-leakage paths after thermal cycling. CNCPioneer achieves seat angle ±0.5° and surface finish Ra 0.4μm across all hydraulic hose fitting and hydraulic adapter fitting series.
Bore Concentricity ±0.015mm
Hydraulic fitting bore eccentricity relative to the thread axis creates turbulent flow, pressure drop, and asymmetric stress distribution in high-pressure impulse applications — the dominant source of fatigue failure in hydraulic union fittings and hydraulic pipe fittings at pressure extremes. CNCPioneer achieves bore-to-thread concentricity ±0.015mm across all hydraulic fitting manufacturing series.
Ra 0.4μm Seal Surface Finish
At 10,000 PSI, hydraulic fluid will migrate through surface finish imperfections exceeding 0.8μm Ra — producing weepage that violates SAE J514 and ISO 19879 leakage criteria. CNCPioneer's Ra 0.4μm on all seal surfaces minimizes leakage risk and ensures O-ring seating uniformity in ORFS and O-ring boss hydraulic adapter fitting configurations.
High-Pressure Miniature Capability
Miniature hydraulic hose fittings for compact mobile machinery and aerospace actuation systems require M10×1.0 and 7/16-20 UNF threads on Ø8mm tube bodies — the precision extreme of standard hydraulic fitting manufacturing. CNCPioneer's Swiss CNC lathe capability supports reliable hydraulic fitting manufacturing at dimensions approaching the physical limits of conventional CNC machining.
China Hydraulic Fitting Manufacturing Cost Advantage
CNCPioneer's hydraulic fitting China manufacturing delivers 35–55% cost reduction versus US, European, and Japanese hydraulic fitting manufacturers — same thread accuracy, same pressure test documentation, competitive per-unit price for hydraulic hose fitting, hydraulic adapter fitting, hydraulic pipe fitting, and hydraulic union fitting series.
Hydraulic Fitting Types
We Manufacture
CNCPioneer manufactures the complete range of hydraulic fitting types — from hydraulic hose fittings for flexible hose termination to hydraulic adapter fittings for port and thread transition, hydraulic pipe fittings for rigid tube systems, and hydraulic union fittings for maintenance-accessible connections — across all pressure ratings, thread forms, and material specifications from standard to 10,000+ PSI.
Hydraulic Hose Fitting
One-piece and two-piece hydraulic hose fitting designs for SAE 100R1, R2, R12, R13, R15, 4SP, 4SH, and custom hose types. Crimp socket internal serration geometry ±0.02mm for secure hose retention. BSPP, JIC, NPT, ORFS, and Metric thread terminations. Carbon steel, stainless steel 316, and brass hydraulic hose fitting options. Interlock and spiral hose hydraulic hose fitting designs for high-impulse applications.
Hydraulic Adapter Fitting
Port adapter, thread adapter, and configuration adapter hydraulic adapter fitting designs — NPT to BSPP, JIC to ORFS, Metric to SAE, male to female, elbow 45°/90°, tee, cross, and bulkhead configurations. O-ring boss (ORB) hydraulic adapter fitting with captive O-ring groove geometry per SAE J1926. Carbon steel zinc-plated, stainless steel passivated, and brass nickel-plated hydraulic adapter fitting options.
Hydraulic Pipe Fitting
NPT, BSPP, and BSPT threaded hydraulic pipe fitting designs for rigid pipe systems — nipple, coupling, reducer, bushing, cap, plug, and elbow configurations. Schedule 40 and Schedule 80 hydraulic pipe fitting bore matching. 3,000 PSI standard and 6,000 PSI high-pressure hydraulic pipe fitting ratings. Hot-dip galvanized and zinc-nickel plated hydraulic pipe fitting surface options for corrosion resistance.
Hydraulic Union Fitting
Straight, bulkhead, and swivel hydraulic union fitting designs for maintenance-accessible hose and tube connections. O-ring face seal (ORFS) hydraulic union fitting with flat face and O-ring groove geometry per ISO 8434-3. JIC 37° flare hydraulic union fitting with flare nut and sleeve components. Carbon steel and stainless steel hydraulic union fitting with captive O-ring and backup ring configurations.
High-Pressure Hydraulic Fittings
10,000+ PSI high-pressure hydraulic fitting manufacturing for oil and gas, subsea, and hydraulic press applications. Metric bite-type (24° cone) hydraulic fitting per DIN 2353. SAE flange hydraulic fitting for high-flow systems. Banjo hydraulic fitting for compact port connections. Custom hydraulic fitting manufacturing with proprietary geometry, mixed thread transitions, and integrated pressure test port designs.
Hydraulic Quick Connect Fittings
Carbon steel 12L14 / 1215 / 1045 · Stainless steel 303 / 304 / 316 / 17-4PH · Brass C3604 / C2600 · Aluminum 6061-T6 · Super duplex 2507 · Titanium Grade 5. Every hydraulic fitting manufacturing component ships with thread gauge verification, bore diameter CMM records, surface finish profilometry, pressure test records (where specified), and Certificate of Conformance — material certifications with full lot traceability, PPAP documentation for OEM programs, and salt spray corrosion test results for plated hydraulic fitting manufacturing.
Applications
CNCPioneer supplies hydraulic fitting manufacturing components to hydraulic system OEMs, hose assembly manufacturers, fluid power distributors, and industrial equipment builders across mobile machinery, oil and gas, aerospace, agriculture, construction, marine, and industrial automation markets worldwide.
Mobile Machinery & Agriculture
Hydraulic hose fitting and hydraulic adapter fitting manufacturing for excavator boom cylinder lines, loader hydraulic circuits, tractor implement connections, and harvester hydraulic drive systems. ORFS and JIC hydraulic union fitting for field-serviceable connections. Zinc-nickel plated hydraulic fitting for corrosion resistance in agricultural chemical exposure environments.
Oil & Gas & Subsea
High-pressure hydraulic pipe fitting and hydraulic union fitting manufacturing for wellhead control systems, BOP hydraulic circuits, and subsea actuator connections. 10,000+ PSI hydraulic fitting manufacturing with sour gas NACE MR0175 material compliance. Super duplex stainless steel hydraulic adapter fitting for subsea manifold and riser tensioner systems.
Aerospace & Defense
AS9100D certified hydraulic hose fitting and hydraulic adapter fitting manufacturing with FAIR documentation for flight control actuation, landing gear retraction, and weapon system hydraulic circuits. Titanium and corrosion-resistant steel hydraulic union fitting for naval defense and marine patrol aircraft. Passivated stainless steel hydraulic pipe fitting for hydraulic test stand and ground support equipment.
Construction & Mining
Hydraulic hose fitting manufacturing for hydraulic breaker, crusher, and drill rig hose assemblies. High-impulse interlock hydraulic hose fitting for mining shovel and dragline hydraulic circuits. Heavy-duty hydraulic adapter fitting for hydraulic cylinder port connections on bulldozer, grader, and articulated dump truck systems.
Industrial Automation & Machine Tools
Hydraulic pipe fitting and hydraulic union fitting manufacturing for press brake, injection molding machine, and hydraulic press power unit connections. Metric DIN 2353 bite-type hydraulic fitting for European machinery hydraulic circuits. Custom hydraulic adapter fitting for manifold block and hydraulic power pack port configurations.
Marine & Offshore
Stainless steel 316 hydraulic hose fitting and hydraulic adapter fitting manufacturing for ship steering gear, winch, and crane hydraulic systems. Hot-dip galvanized hydraulic pipe fitting for offshore platform hydraulic utility lines. Hydraulic union fitting with ORFS and BSPP configurations for saltwater corrosion resistance in marine hydraulic environments.
Hydraulic Fitting Manufacturing
Capabilities at CNCPioneer
CNCPioneer's Shenzhen facility combines 78+ Swiss CNC lathes for miniature hydraulic fitting bodies and precision thread components with 66+ MAZAK mill-turn centers for multi-port hydraulic adapter fittings, hydraulic union fitting bodies, and complex hydraulic fitting housings — covering all standard thread forms and pressure ratings across hydraulic hose fitting, hydraulic adapter fitting, hydraulic pipe fitting, and hydraulic union fitting series.
Swiss CNC Lathe Fleet
78+ Swiss CNC lathes · Hydraulic fitting body Ø6mm–Ø50mm · Thread pitch diameter ±0.01mm · Seat angle ±0.5° · Surface finish Ra 0.4μm on seal surfaces · Bore concentricity ±0.015mm · Mating face flatness 0.005mm.
MAZAK Mill-Turn Fleet
66+ MAZAK mill-turn centers · Multi-port hydraulic adapter fitting and hydraulic union fitting bodies · 5-axis simultaneous machining for angled port configurations · Internal bore diameter ±0.01mm · Cross-hole drilling and port threading in single setup.
Thread Form Coverage by Series
NPT (ANSI B1.20.1) · BSPP (ISO 228-1) · BSPT (ISO 7-1) · JIC 37° flare (SAE J514) · ORFS O-ring face seal (ISO 8434-3) · SAE O-ring boss (SAE J1926) · Metric DIN 3853 · UN/UNF · Custom: designed to specification.
Hydraulic Fitting Materials
Carbon steel 12L14 / 1215 / 1045 · Stainless steel 303 / 304 / 316 / 17-4PH · Brass C3604 / C2600 · Aluminum 6061-T6 · Super duplex 2507 · Titanium Grade 5 · Specialized: per NACE MR0175 sour gas specification.
Hydraulic-Specific Inspection
100% thread gauge go/no-go inspection · Seal seat optical profile verification · Bore diameter air gauge monitoring · Profilometry Ra 0.4μm on seal surfaces · Pressure test to 1.5× working pressure · Burst test to 4× working pressure (where specified).
Hydraulic Fitting Documentation
Thread gauge records · CMM dimensional reports · Surface finish profilometry records · Pressure test certificates · Material certifications with full lot traceability · PPAP for automotive and OEM programs · Salt spray test reports (ASTM B117) · Certificate of Conformance.
Materials for Hydraulic Fitting Manufacturing
Hydraulic fitting manufacturing material selection must balance mechanical strength for pressure containment, machinability for thread and seat accuracy, corrosion resistance for fluid and environmental exposure, and cost efficiency for high-volume hydraulic hose fitting and hydraulic adapter fitting programs. CNCPioneer machines all primary hydraulic fitting alloys.
12L14 (Free-Machining Steel)
Machinability rating 100 · Good strength-to-cost ratio · Standard hydraulic hose fitting bodies, hydraulic adapter fitting bodies, hydraulic pipe fitting nipples and couplings — the dominant material in hydraulic fitting manufacturing for general industrial and mobile machinery applications.
1215
High sulfur free-machining steel · Excellent thread form surface finish · Hydraulic fitting components requiring finest thread detail and seat surface finish at high production volumes.
1045
Medium carbon steel · Higher strength than 12L14 · High-pressure hydraulic pipe fitting and hydraulic union fitting bodies for 6,000+ PSI applications where base material yield strength must exceed thread stress concentration factors.
303
Free-machining austenitic stainless · Good corrosion resistance · Standard stainless hydraulic hose fitting and hydraulic adapter fitting for food processing, chemical, and marine hydraulic systems requiring general corrosion resistance.
316
Superior corrosion resistance · Marine and chemical exposure · Marine hydraulic hose fitting, subsea hydraulic adapter fitting, and offshore hydraulic union fitting applications where chloride corrosion resistance is critical.
17-4PH
Precipitation-hardening martensitic stainless · High strength · Aerospace and defense hydraulic fitting manufacturing for actuation systems requiring strength-to-weight optimization with corrosion resistance.
C3604
Excellent machinability · Good corrosion resistance · Low-pressure hydraulic hose fitting, pneumatic-hydraulic adapter fitting, and instrumentation hydraulic pipe fitting for fluid systems not exceeding 1,500 PSI.
C2600
High ductility · Good thread form integrity · Hydraulic fitting components requiring post-machining crimping or forming operations without cracking.
6061-T6
Lightweight · Anodizable · Weight-critical aerospace hydraulic adapter fitting and hydraulic union fitting where mass reduction is a primary design constraint — pressure rating limited to lower-pressure hydraulic systems.
2507
Exceptional corrosion resistance · High strength · Subsea and sour gas hydraulic fitting manufacturing per NACE MR0175 for oil and gas downhole and subsea manifold hydraulic connections.
Grade 5 (Ti-6Al-4V)
Lightweight · High strength · Corrosion resistant · Aerospace and defense hydraulic fitting manufacturing for flight control and landing gear systems where strength-to-weight ratio is critical.
Plating & Surface Finishing for
Hydraulic Fitting Manufacturing
Surface plating on hydraulic fitting manufacturing components serves dual functions — corrosion protection for service life in fluid and environmental exposure, and seal surface integrity for leak-free performance under cyclic pressure. CNCPioneer works with qualified plating partners to deliver hydraulic fitting components with certified plating per ASTM B633, ASTM B689, MIL-DTL-53072, and ASTM A967.
Zinc-Nickel Alloy Plating — ASTM B633 Type II
Zinc-nickel (12–15% Ni) is the dominant plating specification in modern hydraulic fitting manufacturing for carbon steel components. Provides 1,000+ hours salt spray resistance per ASTM B117 — exceeding traditional hexavalent chromium plating performance without Cr⁶⁺ environmental hazard. All hydraulic hose fitting, hydraulic adapter fitting, and hydraulic pipe fitting external and internal surfaces receive zinc-nickel plating with blue or yellow passivation for thread lubricity and corrosion protection.
Zinc Plating with Trivalent Passivation — ASTM B633 Type II
Standard zinc plating with trivalent chromium passivation for general industrial hydraulic fitting manufacturing. 240–480 hours salt spray resistance. Yellow, blue, black, and clear passivation color options. Cost-effective for standard mobile machinery and agricultural hydraulic hose fitting and hydraulic pipe fitting programs where extreme corrosion resistance is not required.
Electroless Nickel Plating — AMS 2403 / MIL-C-26074
Electroless nickel for hydraulic fitting manufacturing components requiring uniform thickness on complex internal thread geometry and seal surfaces. 500–1,000 hours salt spray resistance. Hardness HV 500–600 for wear resistance on thread engagement surfaces. Ideal for hydraulic union fitting and hydraulic adapter fitting in high-cycle maintenance environments.
Passivation — ASTM A967
Citric or nitric acid passivation for stainless steel hydraulic fitting manufacturing components. Removes free iron contamination from machining operations and restores the chromium oxide layer for maximum corrosion resistance. Essential for marine, food processing, and pharmaceutical hydraulic hose fitting and hydraulic adapter fitting applications where surface contamination cannot be tolerated.
Hot-Dip Galvanizing — ASTM A153
Hot-dip galvanizing for large hydraulic pipe fitting and hydraulic union fitting in structural and outdoor hydraulic systems. 2,000+ hours salt spray resistance. Heavy-duty corrosion protection for construction, mining, and offshore platform hydraulic pipe fitting applications where component replacement access is limited and maximum service life is required.
Anodizing for Aluminum Hydraulic Fittings
Type II sulfuric anodizing and Type III hard coat anodizing for aluminum hydraulic adapter fitting and hydraulic union fitting in weight-critical aerospace and mobile machinery applications. Type III hard coat for maximum wear resistance on aluminum hydraulic fitting mechanical interface surfaces subject to repeated engagement in field maintenance environments — without altering thread pitch diameter beyond hydraulic fitting tolerance requirements.
All hydraulic fitting manufacturing plating — zinc-nickel, zinc trivalent, electroless nickel — is verified by XRF thickness measurement on every production lot. Plating certifications, XRF thickness records, and salt spray test results are included in the shipment documentation package for every hydraulic fitting manufacturing program. Thread gauge re-inspection after plating confirms thread form conformance post-plate.
Quality Assurance for
Hydraulic Fitting Manufacturing
Hydraulic fitting manufacturing quality requirements extend beyond dimensional conformance to encompass thread form accuracy, seal seat integrity, pressure containment verification, plating thickness, and the complete documentation trail that hydraulic system OEM qualification programs require — including 100% thread gauge inspection confirming go/no-go conformance on every fitting.
Contract & Drawing Review
Engineering review of hydraulic fitting manufacturing drawing requirements, applicable thread standards (SAE J514, ISO 8434, ANSI B1.20.1, ISO 228-1), seat angle callouts, pressure ratings, plating specifications, and PPAP or FAIR requirements before order acceptance. Thread form feasibility and seat machining strategy confirmed during DFM review.
Material Incoming Inspection
XRF composition verification confirms base alloy compliance; hardness verification for carbon steel and stainless steel; NACE MR0175 material certification for sour gas hydraulic fitting orders; RoHS/ELV restricted substance verification; full lot traceability from mill certificate through finished hydraulic fitting retained for every order.
First Article Dimensional Inspection
Complete Mitutoyo CMM dimensional report: thread pitch diameter, seat angle, bore diameter, overall length, hex size, and port spacing on multi-port hydraulic adapter fittings; Ra 0.4μm profilometry on seal surfaces; optical measurement of thread form; balloon drawing with full measurement results.
In-Process Dimensional Control
In-process thread pitch diameter monitoring at defined intervals; seal seat optical profile verification after seat machining; bore diameter monitoring by calibrated bore gauge; thread form verification by optical measurement; dedicated hydraulic fitting tooling with monitored tool life limits; statistical process control (SPC) on critical dimensions for high-volume hydraulic hose fitting programs.
Pressure & Leakage Verification
Pressure test to 1.5× working pressure on representative samples from every hydraulic fitting manufacturing lot; burst test to 4× working pressure for high-pressure hydraulic pipe fitting and hydraulic union fitting programs; helium leak test for aerospace and subsea hydraulic fitting applications; pressure test records included in shipment documentation.
Plating Verification & Final Inspection
XRF plating thickness measurement on zinc-nickel and electroless nickel-plated hydraulic fitting components every production lot; 100% thread gauge go/no-go inspection after plating; seal seat visual inspection under 10× magnification; thread form re-verification post-plate; material certifications, CMM reports, pressure test records, XRF records, and Certificate of Conformance with every shipment.
AS9100D & IATF 16949 Quality System for
Hydraulic Fitting Manufacturing
CNCPioneer's AS9100D certification for aerospace and defense hydraulic fitting programs and IATF 16949 certification for mobile machinery and automotive hydraulic fitting programs provides the structured quality framework demanded by hydraulic system OEM supply chain qualification across defense, aerospace, agricultural, construction, and commercial fluid power markets.
AS9100D & FAIR for Aerospace Hydraulic Fittings
AS9100D certified hydraulic fitting manufacturing with FAIR documentation per AS9102 for flight-critical aerospace hydraulic hose fitting, hydraulic adapter fitting, and hydraulic union fitting programs. Material certification, thread gauge records, pressure test documentation, and CMM dimensional reports for custom aerospace hydraulic fitting qualification.
- FAIR per AS9102 documentation
- Pressure test records included
- Material full lot traceability
100% Thread Gauge Inspection
100% go/no-go thread gauge inspection at production speed ensures thread form conformance across hydraulic fitting manufacturing production lots. Thread pitch diameter variation within the tolerance band is minimized to ±0.005mm in sorted output — maintaining seal integrity for hydraulic union fitting and hydraulic adapter fitting assemblies requiring tightest leakage control.
- Thread form 100% gauged
- Seal seat 100% verified
- Bore concentricity monitored
Pressure Test Verification
Pressure test to 1.5× working pressure verifying structural integrity and seal performance on representative samples from every hydraulic fitting manufacturing lot. Burst test to 4× working pressure for high-pressure hydraulic pipe fitting and hydraulic union fitting programs. Pressure test records identify lot conformance before shipment for all hydraulic fitting assembly programs.
- Pressure test every lot
- 1.5× working pressure standard
- Burst test records included
XRF Plating & Salt Spray Verification
XRF plating thickness measurement on zinc-nickel and electroless nickel-plated hydraulic fitting components every production lot, confirming thickness within ASTM B633 specification. Salt spray test per ASTM B117 for plating qualification. Results documented and included in shipment package for all hydraulic fitting manufacturing programs.
- XRF measurement every lot
- Salt spray 240–1,000+ hours
- Certificate of Conformance (C of C)
Hydraulic Fitting Manufacturing FAQ
Common questions from hydraulic system OEMs, hose assembly manufacturers, fluid power distributors, and industrial equipment builders about CNCPioneer's hydraulic fitting manufacturing and custom hydraulic hose fitting, hydraulic adapter fitting, hydraulic pipe fitting, and hydraulic union fitting capabilities.
The thread pitch diameter and seat angle are the most critical dimensional relationships in hydraulic fitting manufacturing for leak-free performance. For NPT tapered threads, the pitch diameter at gauge plane must be held to ±0.01mm to ensure proper thread engagement depth and seal compression. For JIC 37° flare fittings, the seat angle must be held to 37° ±0.5° with surface finish Ra 0.4μm to ensure uniform circumferential contact against the mating flare tube. A 1° seat angle error or 0.02mm pitch diameter deviation produces localized stress concentration and micro-leakage under cyclic pressure. These tolerances are significantly tighter than standard plumbing fitting specifications and represent the fundamental dimensional challenge of hydraulic fitting manufacturing. CNCPioneer achieves these tolerances through dedicated thread-form tooling, in-process air gauge monitoring, and 100% thread gauge inspection.
CNCPioneer's hydraulic fitting manufacturing supports components from low-pressure instrumentation systems through 10,000+ PSI high-pressure applications, with pressure rating governed by material selection, wall thickness, and thread form: standard carbon steel hydraulic hose fittings to 3,000 PSI; medium-pressure hydraulic adapter fittings to 6,000 PSI; high-pressure hydraulic pipe fittings and hydraulic union fittings to 10,000+ PSI. Burst pressure testing to 4× working pressure confirms structural margin on critical hydraulic fitting manufacturing programs. Our CNC machining dimensional capability — thread pitch diameter tolerance of ±0.01mm and bore concentricity ±0.015mm — supports reliable hydraulic fitting manufacturing performance across all standard pressure series including SAE 100R, ISO 1436, and DIN 20022 hose fitting ratings.
Hydraulic hose fittings and hydraulic adapter fittings serve different connection functions in hydraulic systems, with correspondingly different manufacturing requirements. Hydraulic hose fitting manufacturing produces socket and stem components designed for crimped or reusable attachment to flexible hydraulic hose — the socket internal serration geometry must be machined to ±0.02mm for secure hose retention under pressure impulse, and the termination thread must maintain seal integrity after crimping deformation. Hydraulic adapter fitting manufacturing produces port and thread transition components — male-to-female, elbow, tee, and bulkhead configurations — designed for rigid connection between ports, valves, cylinders, and manifolds. Hydraulic adapter fitting manufacturing requires tighter thread and seat tolerances than hydraulic hose fitting manufacturing because adapter fittings rely entirely on metal-to-metal or O-ring sealing without the compliance of hose rubber.
CNCPioneer verifies thread form accuracy in hydraulic fitting manufacturing by 100% go/no-go thread gauge inspection using calibrated thread ring and plug gauges per ANSI B1.2 and ISO 1502. Go gauge must engage fully; no-go gauge must not engage beyond one turn. For critical aerospace and high-pressure hydraulic fitting programs, additional thread pitch diameter verification by optical measurement or CMM thread scanning confirms pitch, lead, and flank angle conformance. Thread gauge records are included in shipment documentation for all hydraulic fitting manufacturing programs with thread specifications.
Yes. CNCPioneer's custom hydraulic fitting manufacturing produces components for proprietary thread forms, mixed thread transitions (NPT to Metric, BSPP to JIC), and customer-specified seat angles by modifying standard thread machining programs and seat tooling geometry. Custom thread hydraulic fitting manufacturing requires thread form feasibility review, gauge design and manufacture for non-standard forms, and first article thread verification before production release. Our engineering team performs thread feasibility and DFM review during quotation for all custom hydraulic fitting manufacturing programs, with results delivered within 24 hours.
Standard carbon steel hydraulic hose fittings, hydraulic adapter fittings, and hydraulic pipe fittings without plating: 5–7 business days for prototype quantities. Stainless steel hydraulic fitting components: 7–10 business days. Zinc-nickel or electroless nickel-plated hydraulic fitting assemblies: 10–14 business days for prototype quantities. High-pressure hydraulic pipe fittings and hydraulic union fittings requiring pressure test: 7–10 business days. Custom hydraulic fitting manufacturing with non-standard threads or mixed adapter configurations: 10–14 business days. Production quantities: 3–5 weeks for standard series configurations; 4–6 weeks for custom hydraulic fitting manufacturing. Hydraulic fitting manufacturing wholesale programs with blanket orders and committed lead times available for large-volume supply.
CNCPioneer's hydraulic fitting China manufacturing delivers 35–55% cost reduction compared to equivalent hydraulic fitting components from established US, European, and Japanese hydraulic fitting manufacturers at comparable thread accuracy, plating, and documentation levels. The cost advantage reflects manufacturing economics — competitive labor cost, proximity to Asian carbon steel and stainless steel raw material suppliers, and high-volume CNC machining efficiency — rather than specification compromise. Our hydraulic fitting manufacturing components are produced to the same thread pitch diameter tolerances, seat angle specifications, and plating thickness requirements as leading Parker, Eaton, and Bosch Rexroth hydraulic fitting component products. Detailed OEM quotations with transparent pricing are available within 24 hours for specific fitting types, materials, plating specifications, and volume requirements.
Get a Quote for Hydraulic Fitting Manufacturing
Upload your hydraulic fitting drawing, thread specification, or custom hydraulic hose fitting, hydraulic adapter fitting, hydraulic pipe fitting, or hydraulic union fitting requirement and receive a free DFM review and competitive quotation within 24 hours. CNCPioneer's engineering team will review your hydraulic fitting design for manufacturing feasibility, confirm thread form and seat geometry for target pressure rating, recommend optimal material and plating, and provide a complete OEM program quotation for hydraulic hose fitting, hydraulic adapter fitting, hydraulic pipe fitting, hydraulic union fitting, custom, and all standard hydraulic fitting series.
