Precision
Machined Contacts
CNCPioneer produces turned connector, push-pull, crimp, socket, signal, power, cable, and custom conductive contacts for OEM assemblies. Swiss CNC turning, crimp-tail control, selective plating, low-burr finishing, and clean packaging support brass, copper, beryllium copper, phosphor bronze, stainless, and more. Qualified features reach ±0.005mm diameter and ±0.010mm concentricity; quotes arrive in 24 hours.
What Are
Machined Contacts?
Machined contacts are precision conductive components for connectors, cable assemblies, sensors, test equipment, medical devices, aerospace systems, and industrial electronics. They include pins, sockets, crimp and solder contacts, spring interfaces, signal contacts, and power terminals. CNC machining forms the mating zone, retention features, insulator seat, and wire or terminal interface from controlled material stock.
Reliable performance depends on the combined geometry, alloy, conductivity, plating, contact force, crimp retention, mating cycles, burr control, and cleanliness. Before release, CNCPioneer aligns the electrical function with the turning route, critical dimensions, finish, inspection, and packaging plan.
-
Contact DFM for mating, crimp, retention, insulation, and plating We review diameter, nose profile, socket or spring interface, wire barrel, retention, insulator clearance, mating force, finish, and assembly direction before machining.
-
Swiss CNC turning for miniature connector contacts Guide-bushing Swiss CNC supports small pins and sockets. CNC turning and MAZAK mill-turn centres produce larger power contacts, flanged terminals, and complex components from controlled datums.
-
Machined crimp contacts with controlled wire-barrel geometry DFM covers wire gauge, barrel ID and length, insulation support, pull-out target, crimp height, finish, burr control, and approved tooling.
-
24-hour quotes from a China precision factory Send a drawing or STEP file with mating, wire, electrical, plating, tooling, and volume details. Quotes arrive within 24 hours, with DFM feedback in 48 hours.
Why CNCPioneer for
Machined Contacts?
Our Swiss CNC and mill-turn platform combines conductive-alloy expertise, connector and crimp DFM, selective finishing, clean packaging, and traceable documentation for OEM contact programmes. China production can provide a 40–60% cost advantage.
Material Selection for Pins, Sockets, and Crimp Contacts
We match conductivity, strength, spring force, wear, corrosion, machinability, and plating response to the application. C14500 balances conductivity and machinability; C17200 serves resilient contacts; C11000 supports high-current paths; C36000 enables economical terminals; stainless suits guide and retention features.
Push-Pull Contacts with Mating-Zone Control
We review diameter, nose, shoulder, socket or spring interface, insulation clearance, retention, depth, and mating force as one connector stack-up. This helps prevent interference, incomplete engagement, and poor alignment.
Crimp Contacts with Wire and Tooling DFM
Wire barrel dimensions, conductor stop, insulation support, plating, material temper, and approved tooling are aligned to wire size, pull-out target, crimp height, and terminal retention. Required checks can include insertion, crimp height, pull-out, and mating fit.

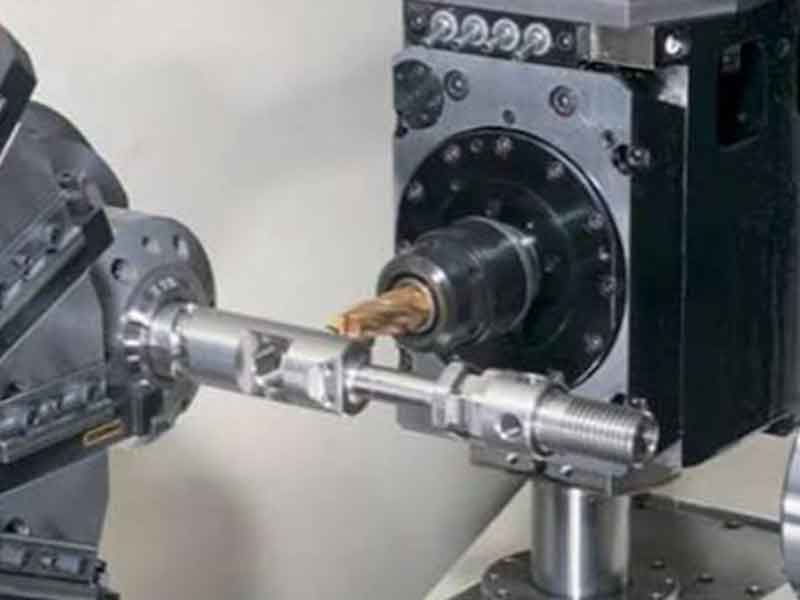

Swiss CNC Turning for Miniature, High-Volume Contacts
Guide-bushing Swiss CNC supports small, long, and detailed contacts. CNC turning and MAZAK mill-turn centres handle larger power terminals, threaded contacts, flanges, busbar interfaces, and complex pins. Process choice follows size, material, tolerance, volume, and finishing needs.
Selective Gold, Nickel, Tin, and Silver Plating
Nickel provides a barrier layer; tin supports solderable terminals; silver serves high-conductivity power contacts; and gold supports signal interfaces. We define thickness, underlayer, masking, dimensional allowance, corrosion protection, and post-plate inspection for each zone.
Clean Packaging and Production Documentation
Programmes can include material and plating certificates, dimensional reports, crimp or electrical records, RoHS/REACH support, COC, PPAP, AS9102 FAIR, and lot traceability. Trays, tubes, reels, clean packs, compartments, and bar-coded labels are available.
Machined Contacts
Product Portfolio
We produce male pins, female sockets, push-pull contacts, crimp contacts, signal and power terminals, solder contacts, guide features, and custom connector components for OEM production.
Circular Push Pull Connector Machined Contacts
Contacts for cable plugs, sockets, panel receptacles, medical connectors, test equipment, industrial controls, and aerospace systems. Pins, sockets, spring interfaces, insulator seats, flanges, and retention features are matched to the connector stack-up, including diameter, depth, tip profile, mating force, clearance, and plating.
Machined Crimp Contacts — Wire Barrel and Terminal Interface
Crimp contacts for circular connectors, cable assemblies, sensors, industrial controls, automotive systems, and instrumentation. DFM covers barrel ID and length, wire stop, insulation support, crimp tail, retention, finish, burrs, tooling, pull-out target, crimp height, and mating fit.
Male Pin and Female Socket Contacts
Precision male pins and female sockets for signal, control, power, sensor, and test connectors. Solid, hollow, slotted, spring, split-beam, and receptacle contact zones are produced to the approved design, with mating, retention, resistance, plating, insulation fit, and cleaning requirements reviewed.
Industries & Applications
We support OEM programmes that require reliable electrical contact, repeatable mating, controlled crimp retention, clean assembly, and traceable connector components.
Automotive, EV & Transportation
IATF 16949 crimp contacts for sensors, battery modules, harnesses, control units, charging connectors, power distribution, and transport systems. Programmes can include PPAP Level 3, specified crimp and plating records, geometry reports, bar-coded packaging, and scheduled delivery.
Aerospace
Precision contacts for circular connectors, avionics, flight equipment, test systems, defence electronics, cable assemblies, and ruggedised instruments. High-strength copper alloys, stainless, gold or nickel plating, crimp or solder interfaces, AS9102 FAIR, and lot traceability are available for approved programmes.
Semiconductor
Power, signal, crimp, busbar, and test contacts for energy storage, inverters, power supplies, charging systems, fixtures, and industrial equipment. Material and finish are selected against current, heat, mating cycles, wear, corrosion, and cost.
Materials
Materials for
Machined Contacts
Our material platform includes brass, high-conductivity and tellurium copper, beryllium copper, phosphor bronze, stainless, nickel alloys, and customer-specified conductive materials. Selection follows current, contact force, mating cycles, heat, wear, corrosion, plating, crimp performance, and volume.
C36000 Free-Machining Brass
C36000 supports efficient production of pins, sockets, crimp contacts, threaded terminals, and signal contacts. It offers clean turning, stable dimensions, practical conductivity, and economical plating. We confirm the mating or wire-barrel function, finish, burr control, tooling, and electrical needs before approval.
C11000 / C10200 Copper
C11000 or oxygen-free copper is selected for high-conductivity current paths. We review machinability, chip and burr control, contact pressure, heat, plating, oxidation, surface finish, interface design, and storage protection. Solid or hollow zones, busbar seats, grooves, and selective plating are available.
C14500 Tellurium Copper
C14500 balances conductivity and machinability for turned contacts, terminals, and power interfaces. It supports complex small features with practical chip control. We review the current path, resistance, finish, corrosion, heat, mating cycles, crimp force, and dimensional stability.
C17200 Beryllium Copper
C17200 is suited to spring sockets, resilient contacts, high-cycle interfaces, and crimp contacts requiring strength with conductivity. We define heat-treatment condition, machining sequence, hardness, contact force, plating, safety controls, and final inspection.
Phosphor Bronze and Copper Alloys
Phosphor bronze and related copper alloys serve spring contacts, sockets, resilient terminals, low-friction interfaces, and corrosion-sensitive components. Before quotation, we review conductivity, spring force, hardness, wear, mating cycles, finish, crimpability, and availability.
303 / 304 / 316L Stainless and Special Alloys
Stainless supports guide contacts, retention features, connector hardware, and corrosion-resistant mechanical interfaces. 303 prioritises machinability, 304 general corrosion resistance, and 316L demanding chemical or marine exposure. Nickel alloys, titanium, and specified materials can also be assessed for temperature, strength, and corrosion.
Surface Treatments for
Machined Contacts
Finish selection follows contact resistance, current, mating cycles, interface performance, corrosion, wear, and cleanliness. We define thickness, masking, dimensional allowance, contact-zone protection, cleaning, and post-finish inspection before production.
Nickel Plating for Barrier and Corrosion Protection
Nickel provides a barrier layer, corrosion protection, wear resistance, and a stable base for selected contact systems. We define thickness, resistance, mating wear, masking, interface zones, diameter growth, and post-plate inspection. It can be applied selectively by function.
Tin Plating for Solderable and Crimp Terminals
Tin can support solderable contacts, crimp tails, wire terminals, and low-resistance interfaces. We review thickness, solderability, wear, wire interface, masking, dimensional allowance, specified storage requirements, and post-plate fit.
Silver Plating for High-Conductivity Contacts
Silver is considered for high-conductivity power contacts, busbar interfaces, specialised terminals, and high-cycle surfaces. We review thickness, resistance, wear, anti-tarnish protection, selective plating, mating material, and packaging. Specified electrical documentation is available.
Gold Plating for Signal and Low-Level Contacts
Gold can be selected for signal contacts, circular pins, pilot contacts, instrumentation, and low-level interfaces requiring stable performance and corrosion resistance. We define thickness, nickel underlayer, contact force, mating cycles, selective plating, interface zones, and dimensional allowance.
Low-Burr Deburring and Contact-Zone Cleaning
Contacts need controlled edges, clean mating noses, burr-free crimp tails, and debris-free grooves. The finishing plan can include precision deburring, brushing, washing, specified ultrasonic cleaning, drying, and visual inspection. Critical zones are protected through packaging.
Laser Marking and Clean Connector Packaging
Part numbers, lot codes, orientation marks, clean trays, tubes, sealed bags, reels, or compartments can protect contact surfaces and prevent mixed lots. We review mark location, contrast, protection, cleanliness, traceability, and receiving labels for automated or manual assembly.
Our DFM covers nickel, tin, silver, or gold plating; masking; deburring; cleaning; marking; specified electrical documentation; post-plate inspection; and clean packaging.
Quality System for
Machined Contacts
Our IATF 16949 and AS9100D system controls four production risks: conductive alloy identity, mating and crimp geometry, plating and cleanliness, and traceable documentation. It supports prototypes, validation parts, and repeat production.
Conductive Alloy, Wire, and Contact DFM
Incoming copper, brass, stainless, and special-alloy lots are checked against certificates and can receive alloy verification. DFM confirms electrical function, wire gauge, crimp barrel, mating zone, spring interface, finish, environment, insulation clearance, assembly, and inspection before machining.
- Material and certificate review for copper, brass, bronze, stainless, and special alloys
- Contact force, mating cycles, wire, tooling, plating, masking, and insulation interface reviewed
- Specified electrical documentation and post-plate gauge plan defined
Swiss CNC and CNC Turning Geometry Control
Swiss CNC, CNC lathes, and MAZAK mill-turn centres are selected by diameter, length, material, mating profile, crimp tail, features, volume, and tolerance. Small contacts are supported close to the cut; larger power contacts and flanged terminals use stable datums. Capability can include ±0.005mm contact diameter, ±0.010mm concentricity, controlled tip radius, and repeatable crimp-barrel dimensions.
- Swiss CNC for miniature pins, sockets, signal, and circular contacts
- CNC turning and mill-turn for power contacts, barrels, flanges, and special features
- Specified first-piece optical, CMM, pin-gauge, crimp, and finish inspection
100% Critical and Post-Plating Inspection
Contacts are inspected to drawing for diameter, length, mating profile, crimp barrel, retention, concentricity, burrs, and finish. Specified post-plate checks cover thickness, contact area, appearance, dimensions, masking, and mating fit. Cleanliness, handling marks, contact-zone damage, and packaging are checked before shipment.
- 100% critical-dimension inspection for qualified programmes
- Specified post-plate diameter and contact-zone review
- Crimp, geometry, insulation, burr, cleanliness, and finish inspection included
Documentation — Reports, Certificates, PPAP, and FAIR
Available documents include dimensional reports, material and plating certificates, alloy verification, specified crimp or electrical records, finish readings, RoHS/REACH, COC, PPAP Level 3, and AS9102 FAIR. Lot traceability links material, machining, plating, inspection, cleaning, and packaging records.
- Dimensional report, material certificate, plating certificate, and COC available
- PPAP Level 3 for automotive, EV, connector, cable, and high-volume programmes
- AS9102 FAIR for aerospace, medical, test, and precision-equipment programmes
Machined Contacts FAQ
Answers for connector buyers and engineers on drawings, push-pull and crimp contacts, materials, plating, prototypes, and production lead times.
Send a 2D drawing or STEP file with contact function, material, pin or socket dimensions, mating details, wire and tooling data, contact force, plating, retention, cleanliness, quantity, and packaging. Without a drawing, connector samples or photos plus mating, electrical, and volume details can support a quote.
These are turned pins, sockets, spring interfaces, power or signal contacts, and retention parts for push-pull plugs and receptacles. Their design must match the insulator, mating contact, contact force, insertion depth, retention method, and connector stack-up. Copper, brass, beryllium copper, phosphor bronze, stainless, and plated configurations are available.
Crimp contacts are matched to conductor size, insulation diameter, wire entry, barrel ID and length, approved tooling, crimp height, pull-out target, terminal retention, finish, and mating contact. DFM can include specified pull-out, crimp-height, conductor-insertion, and mating checks.
Simple turned contacts typically take 5–8 business days after drawing confirmation and material availability. Push-pull, crimp, selectively plated, spring, high-current, clean-packaged, or documentation-heavy parts commonly take 8–15 days. Volume lead time depends on material, cycle time, finishing, inspection, packaging, and quantity. Most inquiries receive a 24-hour quote and 48-hour DFM.
Get a Quote for Machined Contacts
Upload a drawing or 3D model with mating connector, wire and tooling data, electrical requirements, plating and cleanliness notes, quantity, or annual usage. Receive a quote within 24 hours and DFM feedback within 48 hours.
