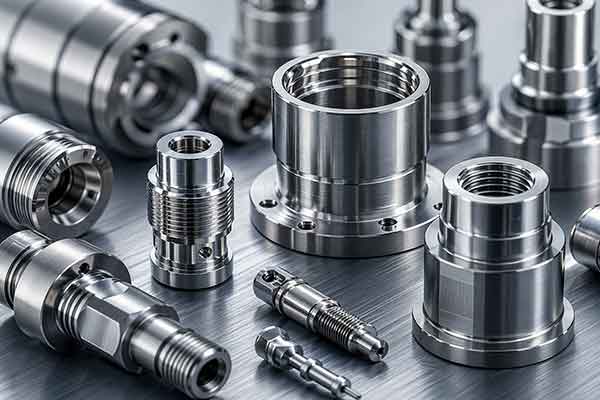

Nickel Swiss Machining Parts
for Extreme Environments
CNCPioneer manufactures high-precision nickel swiss machining parts with tolerances as tight as ±0.005mm — Inconel, Hastelloy, Monel, and Waspaloy for aerospace, oil & gas, chemical processing, and semiconductor industries.
What Are Nickel
Swiss Machining Parts?
Nickel swiss machining parts are precision components produced on Swiss-type CNC lathes using nickel or nickel alloy bar stock. The guide bushing supports the workpiece immediately at the cutting zone, minimizing deflection caused by nickel alloys' high cutting forces — enabling consistent tolerances and superior surface finishes on long, slender components that would be impossible to achieve on conventional CNC lathes.
Combined with the ability to complete turning, milling, drilling, threading, and grooving in a single setup, Swiss machining is the most efficient and precise process for complex nickel alloy parts that demand extreme performance in harsh operating environments.
-
Guide-bushing deflection control Supports nickel alloy workpieces at the cut — prevents deflection from high cutting forces.
-
Tight tolerances to ±0.005mm Consistent dimensional output across full production volumes with CMM verification.
-
Complete features in one cycle Threads, grooves, cross-holes, and milled details — no re-fixturing on difficult nickel alloys.
-
L/D ratios up to 15:1 Slender nickel alloy shafts and fittings that exceed conventional lathe capability.
Why Nickel Alloys for
Swiss Machining?
Nickel alloys are specified when no other material can survive the operating environment. Extreme heat, aggressive chemicals, and high pressure are conditions where nickel outperforms stainless steel, titanium, and virtually every other engineering metal.
High-temperature strength
Nickel alloys retain mechanical properties at temperatures exceeding 1000°C — irreplaceable in jet engine, gas turbine, and industrial furnace applications.
Outstanding corrosion resistance
Resistant to oxidation, acids, alkalis, and seawater — ideal for chemical processing, oil & gas, and marine environments where stainless steel fails.
High-pressure performance
Superior creep resistance under sustained high-pressure loading in oil & gas downhole tools and pressure vessel components operating in extreme conditions.
Magnetic properties
Pure nickel is ferromagnetic — suitable for electromagnetic components, sensors, and actuators where specific magnetic characteristics are required by design.
Thermal stability
Minimal dimensional change across wide temperature ranges — critical for precision components used in high-temperature environments requiring long-term dimensional stability.
Oxidation resistance
Natural oxide layer protects against scaling at elevated temperatures — essential for aerospace and industrial applications demanding long service life without protective coatings.

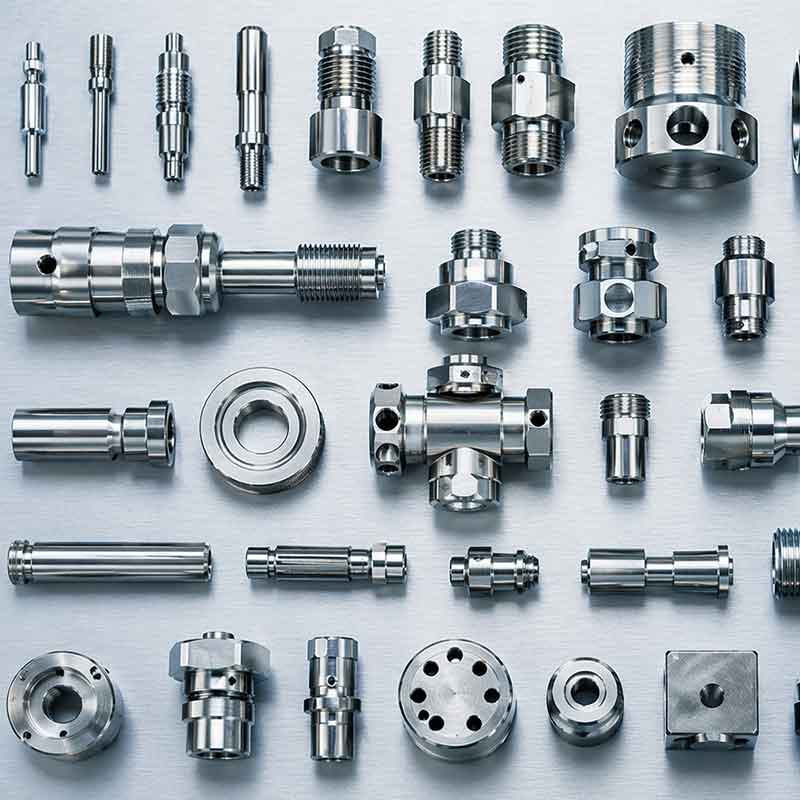

Nickel Swiss Machining Parts We Commonly Produce
Our nickel alloy swiss machining capability is optimized for small, complex, feature-rich components deployed in the world's most demanding operating environments.
Aerospace Turbine Fasteners & Fittings
Inconel 625 and Inconel 718 swiss machined fasteners, structural pins, and fuel system fittings for jet engine and gas turbine applications operating at extreme temperatures.
Oil & Gas Downhole Components
Monel K-500 and Inconel 718 shafts, pump components, valve bodies, and wellhead fittings for H₂S, CO₂, and chloride environments in downhole and subsea applications.
Chemical Processing Fittings & Valves
Hastelloy C-276 and C-22 valve components, reactor fittings, and pump parts for aggressive acids, alkalis, and oxidizing media where stainless steel is insufficient.
Marine & Subsea Fittings
Monel 400 fittings, shafts, and structural fasteners for seawater-exposed assemblies requiring outstanding corrosion and biofouling resistance in long-service marine applications.
Pharmaceutical & Medical Components
Nickel 200 and Hastelloy parts for pharmaceutical processing equipment, surgical instruments, and laboratory devices requiring electropolished surfaces and sterilization compatibility.
Semiconductor Process Hardware
High-purity nickel fittings, flanges, and process equipment components for semiconductor fabrication requiring extreme chemical resistance and EP-polished ultra-clean surfaces.
Industries We Serve with Nickel Swiss Machining Parts
CNCPioneer's AS9100D certification and dedicated nickel alloy machining protocols ensure every part meets the stringent quality, traceability, and performance requirements of regulated and high-reliability industries.
Aerospace & Defense
Inconel and Waspaloy swiss machining parts for jet engine components, turbine fasteners, fuel system fittings, and structural hardware. AS9100D certified with full FAIR documentation and AMS material compliance.
Oil & Gas
Monel and Inconel components for downhole tools, valve bodies, wellhead fittings, and subsea equipment exposed to H₂S, CO₂, chlorides, and high-pressure environments.
Chemical Processing
Hastelloy and Inconel parts for reactor vessels, heat exchangers, pump components, and piping fittings handling aggressive acids, alkalis, and oxidizing media.
Semiconductor
High-purity nickel fittings and process equipment hardware for semiconductor fabrication environments. EP polishing and passivation available for process gas and chemical delivery systems.
Medical & Pharmaceutical
Nickel 200 and Hastelloy components for pharmaceutical processing equipment, surgical instruments, and laboratory devices requiring electropolished surfaces and sterilization compatibility.
Power Generation & Marine
Inconel turbine parts and nuclear fittings for power generation; Monel 400 shafts and fittings for seawater-exposed marine assemblies requiring outstanding corrosion resistance.
Nickel Alloy Swiss Machining
Capabilities at CNCPioneer
CNCPioneer operates dedicated nickel alloy machining protocols across 78+ Swiss lathes — optimized tooling, reduced cutting speeds, high feed rates, and high-pressure coolant strategies specifically developed for nickel's work-hardening and heat-generation characteristics.
Bar Stock Range
Ø1mm to Ø32mm nickel alloy bar stock — covering miniature aerospace fittings through large downhole tool components.
Tolerance Capability
Standard ±0.01mm; high-precision ±0.005mm with full CMM verification. Roundness ±0.002mm; surface finish Ra 0.8μm standard, Ra 0.4μm achievable.
Nickel Alloys We Machine
Nickel 200/201, Inconel 600/625/718, Monel 400/K-500, Hastelloy C-276/C-22, Waspaloy. Grade confirmed at quoting stage.
78+ Swiss CNC Lathes
Star SR-32J, Citizen A20/A16, Tsugami B206 — up to 9-axis simultaneous turning with high-pressure through-tool coolant for nickel alloy heat management.
Nickel-Specific Controls
Carbide and ceramic tooling for nickel; reduced cutting speeds with high feed rates to prevent work hardening; dedicated tool life management protocols.
DFM & Engineering Review
24-hour DFM report on uploaded CAD. Alloy recommendation, surface treatment selection, and FAIR documentation for aerospace and oil & gas programs.
Nickel Alloys We Machine for Swiss Parts
From commercially pure nickel to complex superalloys, we machine the full range of nickel grades. Alloy selection is based on operating temperature, chemical environment, mechanical load, and machinability requirements of your application.
Nickel 200 (N02200)
Commercially pure · Excellent corrosion resistance · Ferromagnetic · Chemical processing, electronics, food equipment
Nickel 201 (N02201)
Low-carbon pure nickel · Superior elevated-temperature use · Caustic handling, alkaline environments
Inconel 625
Outstanding corrosion & oxidation resistance · No heat treatment required · Aerospace, marine, chemical processing
Inconel 718
High strength · Age-hardenable · Excellent weldability · Aerospace turbine components, oil & gas downhole tools
Inconel 600
Good oxidation resistance at high temperatures · Heat treating equipment, nuclear applications
Monel 400
Excellent seawater corrosion resistance · Good strength · Marine fittings, oil & gas, chemical valves
Monel K-500
Age-hardenable · Higher strength than Monel 400 · Pump shafts, fasteners, oil & gas downhole tools
Hastelloy C-276
Outstanding resistance to pitting & crevice corrosion · Chemical reactors, pollution control equipment
Hastelloy C-22
Superior resistance to oxidizing and reducing media · Pharmaceutical, chemical processing applications
Waspaloy
High-temperature strength · Oxidation resistant · Aerospace turbine discs and fasteners
Surface Finishing Options for
Nickel Swiss Machining Parts
Nickel swiss machining parts are often used in environments where surface condition directly impacts performance and service life. We offer a comprehensive range of finishing options suited to the demanding applications where nickel alloys are deployed.
Electropolishing (EP)
Removes surface contaminants and micro-roughness from nickel alloy components — enhancing corrosion resistance and cleanliness. Widely used for semiconductor process hardware and pharmaceutical nickel components.
Passivation & Nickel Plating
Passivation enhances the natural oxide layer for aggressive chemical and biological environments. Electrolytic and electroless nickel plating available for corrosion protection, wear resistance, and dimensional buildup on complex geometries.
Electropolishing
Electrochemical process that removes a thin surface layer, resulting in ultra-smooth, bright finishes. Commonly specified for medical and semiconductor components.
Heat Treatment & Bead Blasting
Age hardening for Inconel 718 and Monel K-500 to achieve maximum mechanical properties after machining. Bead blasting delivers a uniform matte finish for aerospace and industrial nickel components requiring consistent surface texture.
PVD Coating & Mirror Polishing
Physical vapor deposition coatings for extreme wear resistance on nickel alloy aerospace components and tooling. Mirror-finish polishing for pharmaceutical processing equipment and high-purity chemical applications.
EP + Passivation Combination
For Hastelloy components in highly aggressive chemical media, a combined electropolishing and passivation treatment provides maximum surface protection and cleanability for the most corrosive service environments.
Surface finish requirements on nickel alloy components often directly impact performance in aggressive chemical, high-temperature, and high-purity environments. We review finishing specifications together with alloy selection, geometry, and tolerance during the quote stage.
From Drawing Review to Finished Nickel Alloy Parts
Our workflow manages the additional complexity of nickel alloy machining — from alloy selection and dedicated tooling protocols through inspection and full material traceability documentation.
Drawing Review & DFM
Upload your CAD file. Our team reviews nickel alloy suitability, geometry, tolerances, and critical features — returning a DFM report with alloy grade and process recommendations within 24 hours.
Alloy & Process Confirmation
We confirm the optimal nickel alloy (Inconel 625/718, Hastelloy C-276, Monel 400/K-500, etc.), tooling protocol, and surface treatment for your part's operating environment and regulatory requirements.
First Article / FAIR Production
For new programs, we produce sample parts or First Article Inspection Reports for dimensional and material review before volume production is released — especially critical for aerospace and oil & gas programs.
Nickel Alloy Swiss Machining
Parts are produced on dedicated nickel alloy programs — carbide and ceramic tooling, reduced cutting speeds, high feed rates, and high-pressure coolant to prevent work hardening and tool failure.
Surface Finishing & Heat Treatment
Parts move into finishing — EP polishing, passivation, nickel plating, bead blasting, PVD coating, or age hardening (Inconel 718, Monel K-500) — per application and specification requirements.
Inspection, Documentation & Shipment
100% CMM inspection for aerospace and oil & gas parts. Ships with material certificates, CMM inspection reports, FAIR documentation, and full lot traceability from raw bar stock to finished component.
Quality Assurance for Nickel
Swiss Machining Parts
Nickel alloy machining demands a higher level of quality oversight than standard materials. Work hardening, tool wear progression, and heat-affected surface conditions require dedicated monitoring at every production stage.
Incoming Material Verification
SII X-ray fluorescence analyzer confirms nickel alloy grade and composition. Hardness testing on every batch. Mill test reports and material certifications reviewed and retained for full lot traceability.
- XRF alloy grade confirmation
- Hardness testing every batch
- Mill test report review & retention
In-Process Inspection
Real-time dimensional checks with Mitutoyo micrometers and height gauges. Tool wear monitoring to prevent surface work hardening. In-process hardness checks for age-hardenable alloys like Inconel 718 and Monel K-500.
- Real-time dimensional checks
- Tool wear & work-hardening monitoring
- In-process hardness verification
Final Inspection
Mitutoyo CMM (±0.001mm) for complex geometries. Profile projector for thread and form verification. Surface roughness tester confirms Ra values. Visual inspection for surface integrity and work-hardening indicators.
- CMM ±0.001mm measurement
- Thread & form verification
- 100% inspection for aero/oil & gas
Documentation & Delivery
Ships with full material certificates, CMM inspection reports, and FAIR reports for aerospace programs. Full lot traceability from raw material receipt through final inspection and shipment for every nickel alloy order.
- Material certs & mill test reports
- CMM reports & FAIR documentation
- Full lot traceability on every order
- Protective packaging for precision parts
Nickel Swiss Machining Parts FAQ
Common questions from engineers and buyers about our nickel alloy swiss machining capabilities.
Nickel alloys present three primary machining challenges: rapid work hardening when cutting parameters are not precisely controlled; extreme heat generation at the tool-workpiece interface; and high cutting forces that cause deflection on slender workpieces. Swiss machining addresses deflection through the guide bushing system, which supports the workpiece immediately at the cutting zone. CNCPioneer's dedicated nickel alloy protocols manage work hardening and heat through optimized cutting speeds, high feed rates, high-pressure coolant, and carefully selected carbide tooling — enabling consistent precision on even the most demanding nickel alloy grades.
Inconel 625 offers outstanding corrosion and oxidation resistance in the as-machined condition without requiring heat treatment — preferred for marine, chemical processing, and aerospace structural applications. Inconel 718 is an age-hardenable alloy that achieves higher strength after heat treatment, making it the dominant material for aerospace turbine components, fasteners, and oil & gas downhole tools where both high strength and corrosion resistance are required. Inconel 718 is more challenging to machine due to its higher hardness after aging.
Our standard tolerance for nickel alloy parts is ±0.01mm. For high-precision aerospace and semiconductor applications, we achieve ±0.005mm with full CMM verification. Nickel alloys' tendency to work harden and spring back after cutting requires careful process parameter management to consistently hold tight tolerances across production runs — an area where CNCPioneer's dedicated nickel alloy experience is critical.
Due to nickel alloys' longer cycle times compared to aluminum or brass, prototype lead times are typically 7–10 days for standard grades (Inconel 625, Monel 400). Standard production volumes are completed in 4–6 weeks depending on alloy grade, part complexity, quantity, and surface finishing requirements. Rush options are available for repeat orders with existing programs.
Yes. CNCPioneer machines Hastelloy C-276, C-22, and Waspaloy using dedicated tooling and cutting parameter protocols developed specifically for these high-performance superalloys. Both materials require reduced cutting speeds, high feed rates, and aggressive coolant strategies to prevent work hardening and tool failure. Our experience with these alloys ensures consistent dimensional output and surface integrity across production volumes.
Yes. We provide full material certifications including mill test reports confirming alloy composition, mechanical properties, and compliance with relevant material specifications (AMS, ASTM, DIN) for every nickel alloy order. For aerospace applications, we maintain full lot traceability from raw material receipt through final inspection and shipment.
Electropolishing is the preferred surface treatment for nickel alloy components used in chemical processing and pharmaceutical applications. EP removes surface contaminants, micro-roughness, and free iron from the machined surface, significantly enhancing corrosion resistance and cleanability. For Hastelloy components in highly aggressive media, a combination of EP and passivation provides maximum surface protection.
Upload your CAD file (STEP, IGES, or SolidWorks) and receive a free DFM review and competitive quote within 24 hours. Include your nickel alloy grade preference, operating environment, surface finish requirement, and target quantity. Our engineering team will confirm the optimal alloy and process for your application.
Need a Reliable Supplier for Nickel Swiss Machining Parts?
Upload your CAD file to CNCPioneer for a free DFM review and competitive quote within 24 hours. Our engineering team will recommend the optimal nickel alloy grade and surface treatment for your operating environment, and confirm the tightest tolerances achievable for your geometry.
