Satellite Bracket
Manufacturer & Machining Specialist
CNCPioneer is an AS9100D certified satellite bracket manufacturer delivering custom spacecraft mounting hardware with tolerances as tight as ±0.005mm — 78+ Swiss CNC lathes and 66+ MAZAK mill-turn centers, mounting face flatness 0.005mm, hole position ±0.02mm, ASTM E595 outgassing-compatible materials, and 24-hour DFM review for satellite bracket programs worldwide since 2011.
What Is a
Satellite Bracket?

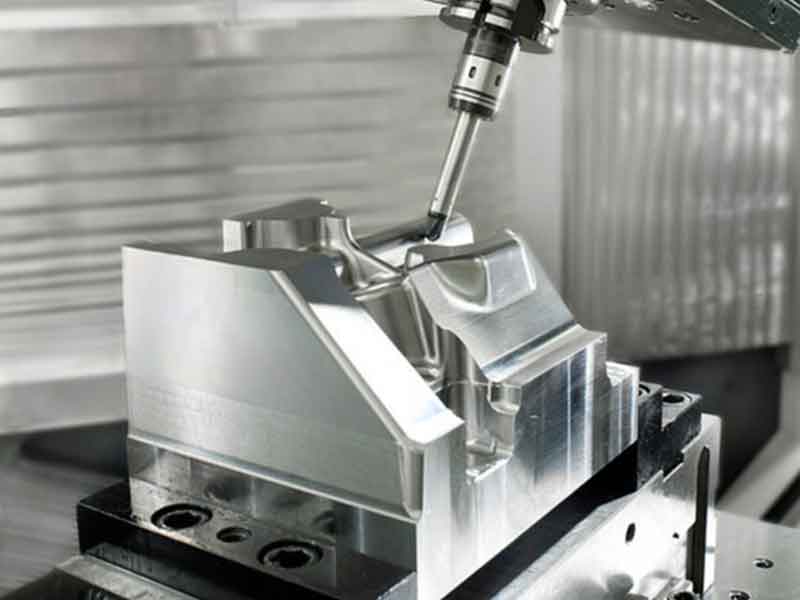

A satellite bracket is a precision-machined structural interface component that attaches satellite subsystem equipment — electronic units, sensors, actuators, propulsion hardware, thermal control elements, and payload instruments — to the satellite bus structural panels, frames, or truss structures that form the spacecraft primary load-bearing framework. Satellite brackets transmit operational loads between mounted equipment and the satellite bus structure during both the launch environment (acoustic vibration 20–150 grms, structural vibration, pyrotechnic shock) and the orbital operational environment (thermal cycling loads from temperature differentials and equipment thermal dissipation).
The satellite bracket is deceptively simple in function but technically demanding in manufacture. It must be stiff enough that mounted equipment's fundamental resonant frequency exceeds the satellite attitude control system bandwidth; strong enough to carry worst-case launch vibration loads with required safety factor; light enough to fit within the satellite mass budget allocation; and manufacturable with dimensional accuracy ensuring correct equipment alignment within the satellite coordinate reference frame — all while meeting ASTM E595 outgassing compliance, surface treatment requirements, and complete AS9100D quality documentation.
-
Mounting face flatness 0.005mm Satellite bracket machining mounting face flatness 0.005–0.01mm governs bolt preload distribution uniformity — uneven flatness causes unequal joint stiffness and fatigue life that can cause bolt loosening under 20–150 grms launch vibration loading that commercial bracket flatness tolerances of 0.05–0.2mm cannot prevent.
-
Hole position ±0.02mm for multi-bolt engagement Bolt pattern hole position accuracy ±0.02mm — significantly tighter than commercial bracket manufacturing — prevents position error accumulation across the satellite bracket-to-panel insert-to-equipment interface stack-up that causes multi-bolt pattern misalignment preventing simultaneous fastener engagement.
-
Mass compliance ±1g verified on every first article Every custom satellite bracket first article weighed on a calibrated precision balance (±0.1g) with mass measurement documented in the FAIR report — a space-specific quality verification step with no equivalent in commercial bracket machining.
-
30–50% China satellite bracket manufacturer cost advantage AS9100D certified satellite bracket machining at 30–50% lower cost than equivalent US, European, and Japanese aerospace precision machining facilities — DFM review, FAIR documentation, and outgassing compliance verification included in China satellite bracket manufacturer program pricing without surcharges.
Why CNCPioneer as Your
Satellite Bracket Manufacturer?
Satellite bracket machining differs from commercial bracket manufacturing in five fundamental areas: dimensional accuracy for structural interface compliance, flatness for uniform bolt preload, mass control for satellite mass budget, outgassing-compatible materials and processes, and complete documentation for space program configuration management. CNCPioneer's satellite bracket machining capability addresses all five requirements.
Mounting Face Flatness 0.005mm
Uneven satellite bracket mounting face flatness causes non-uniform bolt preload distribution creating unequal joint stiffness and fatigue life that causes bolt loosening under 20–150 grms launch vibration. CNCPioneer's MAZAK mill-turn satellite bracket machining achieves mounting face flatness 0.005mm — 10× tighter than commercial bracket manufacturing standards.
Hole Position Accuracy ±0.02mm
Bolt pattern hole position error accumulates across the satellite bracket-to-panel insert-to-equipment interface stack-up — CNCPioneer's satellite bracket machining achieves ±0.02mm, preventing multi-bolt pattern misalignment that requires individual fastener adjustment satellite assembly procedures cannot accommodate at the launch site.
Mass Compliance ±1g Verified
Every custom satellite bracket first article weighed on a calibrated precision balance (accuracy ±0.1g) with mass measurement documented in the FAIR report and compared to the drawing mass specification. Mass optimization through rib-and-pocket stiffened geometry achieving 30–50% mass reduction versus solid machined satellite brackets at equivalent structural stiffness.
24-Hour DFM Review Service
Every satellite bracket inquiry receives a DFM report within 24 hours covering tolerance feasibility, outgassing compatibility, material selection, mass optimization recommendations, and manufacturing sequence recommendation — at no cost. Catching design issues before prototype production reduces total satellite bracket program cost and schedule risk far more than correcting them after first article fabrication.
MAZAK Mill-Turn & Swiss CNC Coverage
Complex multi-feature satellite bracket bodies with pocket geometry, rib stiffening, and multiple hole patterns machined on MAZAK mill-turn centers in single setups — eliminating re-fixturing errors. Miniature satellite bracket standoff elements and precision interface fittings on Swiss CNC lathes. Single-source satellite bracket machining across the complete size and complexity range.
30–50% China Satellite Bracket Manufacturer Cost Advantage
CNCPioneer's China satellite bracket manufacturer cost structure delivers 30–50% cost reduction versus equivalent US, European, and Japanese aerospace precision machining facilities — DFM review, FAIR documentation, and outgassing compliance verification included in China satellite bracket manufacturer program pricing without separate documentation surcharges.
Satellite Bracket Types
We Manufacture
CNCPioneer's satellite bracket machining covers the complete range of spacecraft mounting bracket types across all satellite system domains — equipment mounting brackets, thermal control brackets, payload instrument support brackets, mechanism mounting hardware, CubeSat/SmallSat brackets, and ground support equipment brackets — with FAIR per AS9102 and 24-hour DFM review for every program.
Equipment Mounting Brackets
Electronic unit (OBC, PCDU, transponder) mounting brackets (face flatness 0.005mm, hole position ±0.02mm, Al 6061-T6/7075-T6), battery module mounting elements, reaction wheel mounting brackets (spin axis perpendicularity 0.01mm/100mm, isolation bore ±0.005mm), thruster mounting brackets (thrust vector ±0.1°), and attitude sensor installation brackets (non-magnetic 316L, alignment accuracy governing attitude determination error budget).
Thermal Control Brackets
Heat pipe saddle mounting brackets (saddle bore roundness ±0.005mm, Ra 0.8μm for thermal contact resistance compliance), thermal strap interface brackets (face flatness 0.005mm), radiator panel hinge bracket elements, and MLI blanket attachment brackets (non-magnetic Al or 316L, dimensional accuracy on blanket attachment geometry for reliable retention across launch vibration loading).
Payload Instrument Brackets
Optical instrument mounting brackets in Invar 36 (CTE 1.3 ppm/°C) for earth observation and science satellite dimensional stability, SAR antenna panel structural brackets (element position ±0.05mm), science instrument support brackets (non-magnetic 316L for magnetically sensitive instruments), camera and imaging system brackets (optical axis alignment geometry governing field of view coverage).
Mechanism & Drive Mounting Brackets
Solar array drive assembly (SADA) mounting brackets (bearing housing concentricity ±0.003mm, rotation axis alignment for maximum solar power generation), deployment mechanism support brackets (deployable antenna boom hinge, solar panel deployment arm, instrument boom mounting), and antenna pointing mechanism brackets (single-axis and two-axis gimbal support hardware).
CubeSat & SmallSat Brackets
CubeSat internal component mounting brackets (reaction wheel, propulsion module, radio/computer board support) within CDS Rev. 14 geometric constraints, CubeSat external sensor brackets (GPS antenna, sun sensor, magnetometer) with deployer clearance compliance, SmallSat equipment mounting brackets (ESPA-class and smaller platforms), and small satellite-to-launch-vehicle structural interface fitting brackets. Single piece EM prototype accepted.
GSE & Test Fixture Brackets
Satellite handling fixture interface bracket elements (precisely replicating satellite structural interface geometry), vibration test fixture satellite interface brackets (steel or titanium high-stiffness material, rigid shaker-to-satellite coupling), thermal vacuum chamber satellite support bracket components (outgassing-compatible materials and surface treatments for clean room thermal vacuum chamber compatibility), and launch vehicle integration bracket elements.
Industries & Applications
CNCPioneer's satellite bracket machining supplies satellite OEMs, commercial space program developers, government space agencies, and university CubeSat programs across commercial earth observation, communications, scientific research, military, small satellite, on-orbit servicing, and space exploration satellite bracket programs worldwide.
Commercial Earth Observation
Custom satellite bracket machining for earth observation satellite camera mounting brackets, reaction wheel support elements, solar array drive mounting hardware, and attitude sensor installation brackets for high-resolution commercial remote sensing satellite constellation programs. Earth observation satellite bracket programs benefit from CNCPioneer's rapid prototype delivery and competitive China satellite bracket manufacturer pricing for constellation-scale production quantities.
Communications Satellites
Custom satellite bracket machining for GEO and LEO communications satellite transponder chassis mounting brackets, antenna pointing mechanism support elements, battery module installation hardware, and PCDU mounting bracket components for commercial satellite communications infrastructure programs requiring flight-qualified satellite bracket hardware with full AS9100D documentation.
Scientific Research Satellites
Custom satellite bracket machining for science satellite optical instrument mounting brackets in Invar 36, telescope mirror cell support elements, spectrometer detector mounting hardware, and magnetometer boom attachment bracket components requiring minimum outgassing and maximum dimensional stability custom satellite brackets for astronomy, heliophysics, and Earth science research programs.
Military & Intelligence Satellites
Custom satellite bracket machining for military reconnaissance satellite structural mounting brackets, electronic payload attachment hardware, and satellite bus interface fitting components with AS9100D quality documentation and full material traceability supporting classified satellite program configuration management requirements.
Small Satellites & CubeSats
Custom satellite bracket machining for commercial small satellite constellation operators, university CubeSat programs, and government technology demonstration missions requiring rapid-delivery custom satellite bracket hardware at competitive China satellite bracket manufacturer pricing. CubeSat internal mounting bracket machining, SmallSat equipment installation bracket manufacturing, and rideshare payload adapter interface bracket production for small satellite launch integration. Single piece prototype accepted.
On-Orbit Servicing & Space Exploration
Custom satellite bracket machining for on-orbit servicing vehicle satellite robotic arm base mounting bracket elements, client satellite grasping tool attachment hardware, and servicing vehicle structural interface bracket components. Custom satellite bracket machining for lunar orbiter science instrument mounting brackets, Mars mission camera installation hardware, and deep space probe structural interface bracket components for robotic planetary exploration spacecraft.
Satellite Bracket Machining
Process & Capabilities
CNCPioneer's custom satellite bracket machining process takes customer requirements from initial concept through flight-qualified production in four structured steps — 24-hour DFM review and quotation, prototype production (Week 1–2), first article inspection and FAIR (Week 2–3), production qualification and volume release (Week 3–6) — with maximum schedule predictability and minimum design iteration cycles.
DFM Review & Quotation (24 Hours)
Tolerance feasibility assessment vs. MAZAK (±0.005mm) and Swiss CNC (±0.003mm) capability · Outgassing ASTM E595 material confirmation · Material selection review (6061-T6 vs 7075-T6 vs Ti-6Al-4V vs Invar 36) · Mass optimization recommendations (pocket geometry modifications, wall thickness reductions) · Surface treatment space compatibility · Unit price, lead time quotation.
Prototype Production (Week 1–2)
78+ Swiss CNC lathes (standoff elements, pivot pins, precision interface fittings) and 66+ MAZAK mill-turn centers (complex bracket bodies Ø10–Ø300mm) · Cutting sequence and fixturing design — critical for thin-wall pocket geometry preserving dimensional accuracy · In-process gauging of flatness, hole position, and wall thickness · Post-machining surface treatment (hard anodize, Alodine, passivation, gold plating).
FAIR Documentation per AS9102 (Week 2–3)
Complete Mitutoyo CMM dimensional verification (±0.001mm) · All drawing dimensions balloon-referenced, measured, and recorded · Mounting face flatness and hole position verified · Surface roughness verification · Thread gauge verification · Mass measurement from calibrated precision balance (±0.1g) · Material certification · Surface treatment certification · FAIR package submitted for customer approval before production release.
Production Qualification (Week 3–6)
Process capability Cpk ≥ 1.33 on critical satellite bracket dimensions · 100% hole position verification for critical bolt pattern satellite brackets · Production control plan (inspection frequency, reaction plans) · Engineering change management for drawing revision incorporation · Long-term supply agreements for multi-satellite constellation satellite bracket production programs.
Satellite Bracket Design Guidelines
Minimum Al wall thickness: 1.5mm (structural) / 1.0mm (ribs) / 2.0mm (pocket floors) · Min Ti wall: 1.0mm (structural) · Pocket corner radius min 1.5mm · Min pocket access width 3mm · Rib thickness = 1.5–2× pocket floor · Bolt clearance hole: M3=Ø3.4mm, M4=Ø4.5mm · Dowel pin: H7 tolerance · 0° draft acceptable (unlike casting).
AS9100D Quality Documentation
FAIR per AS9102 for every new satellite bracket part number · 100% CMM for all flight critical dimensions · Material certifications with full lot traceability · XRF alloy verification · ASTM E595 outgassing data references · Surface treatment certifications · Mass measurement records · Certificate of Conformance · Records retained 20 years.
Materials for Satellite Bracket Machining
Satellite bracket material selection balances ASTM E595 outgassing compliance, specific strength for minimum mass at required structural stiffness, CTE compatibility between the bracket and adjacent satellite bus structure or CFRP panels, corrosion resistance for clean room and orbital environments, and machinability for complex pocket and rib geometry at minimum satellite bracket machining cost. CNCPioneer's DFM review provides material selection guidance for every satellite bracket program.
Ti-6Al-4V Grade 5
TML <0.05% · Outstanding specific strength · CTE 8.6 ppm/°C (CFRP compatible) · Satellite brackets interfacing aluminum satellite bus structure with CFRP structural panels — titanium's CTE match with CFRP minimizes thermal stress at bonded structural interfaces across satellite lifetime orbital thermal cycling
Ti-6Al-4V Grade 23 ELI
TML <0.05% · Superior fracture toughness · High-reliability satellite bracket mechanism interface components and deployment mechanism mounting elements where fracture toughness is a primary design criterion in satellite bracket structural joint design
7075-T6 / 6061-T6
TML <0.1% · Excellent/Good specific strength · CTE 23.4/23.6 ppm/°C · Standard equipment mounting satellite brackets (6061-T6), high-load structural mounting brackets at load concentration points (7075-T6), CubeSat rails, and panel insert hardware
17-4PH H900
TML <0.1% · Excellent specific strength · CTE 10.8 ppm/°C · High-load compact satellite bracket structural elements, mechanism actuator mounting hardware, and reaction wheel mounting bracket components where 17-4PH yield strength advantage enables minimum satellite bracket cross-section at required structural load rating
316L
TML <0.1% · Non-magnetic · Good corrosion resistance · Non-magnetic science instrument satellite brackets, sensor installation hardware, magnetometer boom attachment elements, and MLI blanket attachment satellite brackets requiring non-magnetic material compliance for proximity to magnetically sensitive instruments
440C
TML <0.1% · CTE 5.5 ppm/°C · Matched CTE with glass and ceramics · Hermetic interface satellite brackets and glass-to-metal seal interface bracket hardware for satellite communications and RF systems requiring hermetic sealed mechanical interfaces
Invar 36
TML <0.1% · Ultra-low CTE 1.3 ppm/°C · Precision optical instrument satellite brackets for earth observation and science satellite telescope and optical bench mounting applications — Invar's ultra-low CTE minimizes instrument pointing error from thermal distortion of the satellite bracket geometry across orbital thermal cycling
Inconel 718
TML <0.1% · Excellent specific strength · CTE 13.0 ppm/°C · High-temperature satellite bracket structural elements for propulsion system installation brackets and high-temperature deployment mechanism satellite bracket mounting hardware where Inconel strength at elevated temperatures exceeds titanium and stainless capability
C17200 AT
TML <0.1% · Good conductivity and spring properties · Satellite bracket electrical bonding contact surface components and spring contact elements where electrical conductivity is combined with structural stiffness requirements in the satellite bracket assembly
PTFE Space Grade
Verified TML <1.0% · Low friction · Self-lubricating satellite bracket bushing elements and dry-lubricated pivot pin bearing components for deployable mechanism support satellite brackets requiring lubrication-free operation in orbital vacuum service
Vespel SP-3
Verified TML <1.0% · MoS₂-filled polyimide · Superior space vacuum dry lubrication · Satellite bracket bearing cage and bushing components for mechanism support satellite brackets in high-radiation orbital environments where PTFE degradation would compromise deployment mechanism function
PEEK Space Grade
Verified TML <1.0% · Good dielectric · Radiation resistant · Satellite bracket electrical isolation inserts and non-metallic standoff components where electrical isolation between the satellite bracket and mounted electronic equipment is required to prevent ground loop interference in satellite power distribution circuits
Surface Treatments for
Satellite Bracket Machining
Satellite bracket surface treatment selection is governed by ASTM E595 outgassing compliance (TML ≤ 1.0%, CVCM ≤ 0.1%), electrical conductivity for satellite structure bonding and grounding, thermal control optical properties, corrosion resistance for satellite clean room and orbital environments, and dimensional impact from coating thickness on satellite bracket precision features. CNCPioneer's DFM review includes satellite bracket surface treatment specification guidance for every satellite bracket program.
Hard Anodizing — MIL-A-8625 Type III / Type II
Standard surface treatment for aluminum satellite bracket machining structural hardware. Type III hard anodize (HV 400+, 25–50μm) for wear resistance at satellite bracket assembly contact interfaces and deployment mechanism brackets. Type II (5–25μm) for standard corrosion protection on satellite bracket hardware where thinner coating reduces dimensional impact on satellite bracket precision features. Black anodize for satellite bracket surfaces requiring high solar absorptivity (α > 0.95).
Chemical Film — MIL-DTL-5541 (Alodine)
Standard satellite bracket surface treatment for aluminum satellite brackets requiring electrical conductivity for satellite structure bonding, RF grounding, and ESD protection. Class 3 for satellite structure electrical bonding (contact resistance <5 mΩ/cm²). Class 1A for maximum corrosion protection on non-bonding satellite bracket surfaces. The standard satellite structure bonding surface preparation for aluminum satellite brackets across the spacecraft industry.
Passivation — ASTM A967
ASTM A967 passivation for stainless steel and titanium satellite bracket components including 316L non-magnetic sensor brackets, 17-4PH high-load bracket elements, and Ti-6Al-4V CFRP interface brackets. Removes free iron and machining surface contamination, enhancing passive layer for outgassing compatibility and corrosion resistance in satellite propellant handling and clean room environments adjacent to satellite bracket-mounted equipment.
Gold Plating — MIL-G-45204 (Tribological)
Hard gold plating per MIL-G-45204 for satellite bracket electrical contact surfaces — structural bonding contact areas, RF grounding strap attachment points, and electrical connector alignment surfaces. Gold's negligible vacuum vapor pressure and complete oxidation resistance provide lifetime electrical continuity for satellite bracket electrical bonding applications across satellite operational lifetimes. XRF thickness verification every production lot.
Vacuum Bake-Out
Post-machining vacuum bake-out at 100–125°C for 24–48 hours for satellite bracket hardware requiring accelerated outgassing reduction before satellite integration. Standard practice for satellite optical bench components and components in close proximity to sensitive detector surfaces where outgassing-induced contamination risk is highest. Vacuum bake-out reduces residual volatile content by 1–2 orders of magnitude beyond standard cleaning.
Black Anodize for Thermal Control
Specific black anodize treatment for satellite bracket surfaces requiring high solar absorptivity (α > 0.95) for thermal control in satellite bracket-mounted equipment thermal management — heat rejection surfaces that must absorb equipment thermal radiation before conducting heat to the satellite bus panel thermal control system. Black anodize is inherently ASTM E595 compliant and provides corrosion protection equivalent to standard Type II anodize while achieving the high absorptivity thermal control requirement.
All satellite bracket surface treatments — hard anodize, chemical film (Alodine), passivation, gold plating, and black anodize — are ASTM E595 compliant with TML ≤ 1.0% and CVCM ≤ 0.1%. Surface treatment certifications are included in the shipment documentation package for every satellite bracket program. Satellite bracket surface treatment selection is included in CNCPioneer's 24-hour DFM review service — addressing dimensional impact from coating thickness on precision satellite bracket features before prototype machining commences.
AS9100D Quality System for Satellite
Parts CNC Machining Factory
Satellite bracket machining quality requirements are among the most rigorous of any precision manufacturing application — a single non-conforming satellite part that passes inspection and is integrated into a spacecraft may cause mission failure worth hundreds of millions of dollars with no possibility of recovery. CNCPioneer's AS9100D quality system applies dedicated space-grade protocols to every satellite bracket machining order.
Contract & Drawing Review
Engineering and quality review of custom satellite bracket drawing requirements, applicable ECSS, NASA GSFC, MIL, and customer OEM satellite specifications, outgassing material requirements, surface treatment callouts, and FAIR requirements per AS9102 before order acceptance. All drawing ambiguities resolved with the customer before satellite parts production release — non-conformance during satellite bracket machining is unacceptable for flight hardware.
Material Incoming Inspection
XRF composition verification confirms base alloy compliance; hardness and temper verification for beryllium copper and phosphor bronze materials; beryllium content documentation per OSHA for beryllium copper orders; RoHS/ELV restricted substance verification; full lot traceability from mill certificate through finished connector pin retained for every order.
First Article Inspection (FAIR) per AS9102
Complete CMM dimensional verification of all drawing-dimensioned features on the first production article for every new custom satellite bracket part number. FAIR documented in AS9102 balloon drawing format with full measurement results, material certifications, surface treatment certifications, and mass measurement results. FAIR approval by customer required before satellite parts production quantity release.
In-Process Statistical Control
Real-time dimensional monitoring with Mitutoyo gauging at defined satellite bracket machining production intervals. 100% CCD automatic sorting for safety-critical satellite parts dimensions. Dedicated process travelers with mandatory inspection sign-off points for satellite-specific critical features. Statistical process control with Cpk ≥ 1.33 for all flight satellite bracket critical dimensions on key characteristics.
Final Inspection & Cleanliness Verification
Mitutoyo CMM (±0.001mm) full dimensional report. Surface roughness verification on bearing, sealing, and functional surfaces. Thread gauge verification per applicable aerospace thread standards. Visual inspection under clean room lighting for surface defects and contamination. Mass measurement against drawing mass specification. Particle count cleanliness verification for satellite bracket machining components requiring clean room delivery condition.
Shipment Documentation
Certificate of Conformance, CMM dimensional report, material test reports with full lot traceability, FAIR per AS9102, surface treatment certifications, ASTM E595 outgassing data references for non-metallic materials, mass measurement records, cleanliness verification records, and any satellite program-specific documentation. All satellite bracket machining factory quality records retained minimum 20 years for satellite program configuration management support.
AS9100D Quality System for
Satellite Bracket Machining
CNCPioneer's AS9100D certified satellite bracket machining factory confirms independent audit compliance with the quality management framework demanded by satellite OEMs and space agency prime contractors — covering risk management, configuration control, FAIR per AS9102, key characteristics management, and counterfeit part prevention across all satellite bracket programs.
FAIR Documentation per AS9102
Complete FAIR documentation for every new custom satellite bracket part number — AS9102 balloon drawing format with all drawing dimensions ballooned, measured, and recorded, with material certifications, surface treatment certifications, and mass measurement results. FAIR approval by customer required before satellite parts production quantity release. FAIR records retained 20 years for satellite program configuration management.
- FAIR per AS9102 for every new P/N
- Customer approval before production
- Records retained 20 years
Material Traceability & Authentication
Full material traceability chain from mill certificate heat number through finished satellite component shipment. SII XRF composition verification on incoming material for every satellite bracket machining component order. Counterfeit material prevention through approved supplier list management and incoming material certification authentication — a fundamental AS9100D satellite bracket machining factory requirement.
- XRF alloy verification every order
- Mill cert heat number traced
- Counterfeit part prevention
Outgassing Compliance Verification
All satellite bracket machining factory materials documented against ASTM E595 outgassing test data — TML ≤ 1.0% and CVCM ≤ 0.1%. Non-metallic satellite bracket machining materials including PEEK and PTFE require material-grade-specific ASTM E595 test data. Outgassing data references documented in material qualification records retained in satellite parts quality documentation. Vacuum bake-out coordinated for parts proximate to optical and detector surfaces.
- ASTM E595 data documented
- TML ≤ 1.0% / CVCM ≤ 0.1%
- Vacuum bake-out capability available
Cpk ≥ 1.33 Process Capability
Statistical process control with Cpk ≥ 1.33 minimum for flight satellite bracket critical dimensions on key characteristics. 100% CCD automatic sorting for safety-critical satellite bracket critical dimensions. SPC control charts maintained for bearing seat diameter, concentricity, and thread pitch diameter on all satellite bracket programs with identified key characteristics.
- Cpk ≥ 1.33 on key characteristics
- 100% CCD sorting for safety-critical dims
- Certificate of Conformance (C of C)
Satellite Bracket Machining FAQ
Common questions from satellite OEMs, payload integrators, small satellite developers, and CubeSat programs about CNCPioneer's satellite bracket machining factory capabilities, ASTM E595 outgassing compliance, and AS9100D quality system.
Three dimensions govern satellite bracket structural and functional performance across the majority of satellite bracket types. First, mounting face flatness (target 0.005–0.01mm) — uneven satellite bracket mounting face flatness causes non-uniform bolt preload distribution that creates unequal joint stiffness and fatigue life, potentially causing bolt loosening under launch vibration loading. Second, bolt pattern hole position accuracy (target ±0.02–0.05mm) — hole position error accumulates across the satellite bracket-to-panel-insert-to-equipment interface stack-up, causing multi-bolt pattern misalignment that prevents simultaneous bolt engagement and requires individual fastener adjustment that satellite assembly procedures cannot accommodate. Third, wall thickness compliance (target ±0.05–0.1mm) — thin-wall satellite bracket pocket features that are undersized fail to meet structural margin requirements; oversized exceed satellite mass budget allocation. CNCPioneer's satellite bracket machining verifies all three critical parameters by Mitutoyo CMM on every first article with results documented in the FAIR report per AS9102.
The choice between aluminum 6061-T6 and 7075-T6 for custom satellite bracket machining depends on structural load requirements and mass budget allocation. Aluminum 6061-T6 is preferred for standard equipment mounting satellite brackets with moderate load requirements — adequate yield strength (276 MPa), excellent machinability enabling complex pocket geometry at low satellite bracket machining cost, and lower material cost make it the most cost-efficient satellite bracket material for the majority of equipment mounting applications. Aluminum 7075-T6 is specified for satellite brackets at structural load concentration points — reaction wheel mounting brackets, separation system interface fittings, and satellite bus structural junction hardware — where 6061-T6's lower yield strength would require a thicker bracket cross-section exceeding the satellite mass budget. 7075-T6's 50% higher yield strength (503 MPa) enables satellite bracket wall thickness reduction that compensates for its slightly higher density. For satellite brackets interfacing aluminum structure with CFRP panels, titanium Ti-6Al-4V is recommended regardless of load magnitude to minimize CTE mismatch thermal stress at the bonded structural interface across orbital thermal cycling.
CNCPioneer controls satellite bracket machining mass compliance through three sequential measures. During DFM review, mass calculation from the drawing geometry confirms that the designed satellite bracket geometry falls within the drawing mass specification — if calculated mass exceeds the specification, DFM feedback identifies specific pocket geometry modifications, material pocket extensions, or wall thickness reductions that bring the satellite bracket design within mass compliance. During satellite bracket machining production, in-process dimensional verification confirms that pocket depths, wall thicknesses, and rib geometry match the drawing dimensions that produce the target satellite bracket mass. After satellite bracket machining completion, every first article satellite bracket is weighed on a calibrated precision balance (accuracy ±0.1g), with the mass measurement result documented in the FAIR report and compared to the drawing mass specification. For production satellite bracket quantities, mass measurement is performed on a statistical sampling basis or 100% basis per the satellite bracket program control plan.
For aluminum satellite brackets requiring both corrosion protection and electrical conductivity for satellite structure bonding and ESD protection, we recommend MIL-DTL-5541 Class 3 chromate conversion coating (Alodine). Class 3 provides adequate corrosion resistance for satellite clean room and orbital environments while maintaining specific electrical resistance below 5 mΩ/cm² — the contact resistance specification typically required for satellite structure electrical bonding compliance. Class 3 Alodine produces the standard satellite structure bonding surface preparation for aluminum satellite brackets across the spacecraft industry. For satellite brackets where maximum corrosion protection is required without electrical conductivity constraint, MIL-DTL-5541 Class 1A provides thicker chromate film with maximum corrosion resistance. For satellite brackets requiring both hard surface protection and electrical conductivity, hard anodize Type III unsealed and undyed (Class 3) provides HV 400+ surface hardness while maintaining electrical conductivity through the unsealed anodize pore structure — contact resistance must be verified against the satellite structure bonding specification requirements.
CNCPioneer's custom satellite bracket machining prototype lead times: standard complexity aluminum 6061-T6 or 7075-T6 satellite brackets without surface treatment 5–7 business days; aluminum satellite brackets with hard anodize Type III 7–10 business days; aluminum satellite brackets with Alodine chemical film 6–8 business days; titanium Ti-6Al-4V custom satellite brackets 7–12 business days; Invar 36 custom satellite brackets 10–14 business days; 17-4PH stainless steel custom satellite brackets 7–10 business days. FAIR documentation per AS9102 preparation adds 2–3 business days to prototype delivery lead time. For urgent engineering model requirements, aluminum satellite bracket prototype delivery can be expedited to 3–4 business days with premium scheduling. Production quantity lead times for standard complexity satellite brackets: 3–5 weeks. Complex satellite brackets with extensive pocket geometry, multiple precision features, and surface treatment: 5–7 weeks.
Yes. CNCPioneer accepts custom satellite bracket machining orders for CubeSat programs from single engineering model prototype pieces with no minimum order quantity restriction. CubeSat satellite bracket programs benefit from the same AS9100D certified quality system, ASTM E595 outgassing-compatible materials, and FAIR documentation per AS9102 as larger satellite programs — space-grade quality at CubeSat-compatible order quantities and pricing. For CubeSat programs requiring multiple custom satellite bracket configurations (reaction wheel brackets, propulsion module brackets, payload instrument brackets), we accept simultaneous multi-part-number orders with unified engineering review, combined shipping, and single FAIR documentation submission. CubeSat satellite bracket wholesale programs for constellation CubeSat manufacturers requiring consistent multi-year supply of standardized bracket configurations are supported with blanket order scheduling and dedicated satellite bracket machining production capacity.
Rib-and-pocket stiffened satellite bracket designs provide 30–50% mass reduction compared to solid machined satellite brackets at equivalent structural stiffness — the dominant satellite bracket structural design approach for mass-critical spacecraft. CNCPioneer's satellite bracket machining design guidelines for rib-and-pocket geometry: rib thickness equal to 1.5–2× pocket floor thickness for balanced mass-stiffness optimization; pocket corner radius minimum 1.5mm for end mill tool access — sharp internal corners are not achievable in satellite bracket machining and create stress concentration points; pocket floor-to-side wall draft angle 0° (no draft required in satellite bracket machining unlike casting); minimum pocket access width 3mm for standard end mill tool approach (narrower pockets require specialized satellite bracket machining tooling at increased cost); minimum wall thickness 1.5mm for aluminum satellite bracket general structural walls, 1.0mm for rib stiffening elements, and 2.0mm for pocket floor surfaces where Ra 1.6μm is required. These guidelines are provided as part of CNCPioneer's 24-hour DFM review service for every custom satellite bracket program.
