Customized Stainless Steel
Bushing
CNCPioneer makes custom stainless steel bushings, threaded sleeves, flanges, spacers, and inserts for OEM assemblies. Choose 304, 316L, 17-4 PH, duplex, or a specified grade with the thread, bore, wall, groove, and finish your application requires. Material verification, ±0.005mm thread pitch diameter capability, 100% thread gauging, and a 24-hour quote keep the project moving.
Custom Stainless Steel
Bushing Solutions
A custom stainless steel bushing is a machined sleeve, insert, spacer, reducer, bearing surface, or threaded interface built around a specific assembly. It can combine internal or external threads with a bore, shoulder, flange, groove, cross hole, slot, or sealing feature.
Good performance depends on the complete design: grade, thread fit, wall thickness, bore finish, concentricity, galling risk, surface treatment, and host-hole fit. CNCPioneer confirms the material, process, inspection scope, and packaging before production.
-
100% thread gauge inspection Plug gauges check internal threads and ring gauges check external threads, with post-finish re-gauging when required.
-
Alloy and corrosion DFM We match 303, 304, 316L, PH, duplex, or specified grades to the environment, load, mating material, finish, and cleaning needs.
-
Swiss CNC and MAZAK production Swiss CNC supports miniature and thin-wall parts; MAZAK mill-turn handles larger flanged, slotted, and cross-drilled geometries.
-
24-hour quote response Send a drawing, STEP file, mating dimensions, environment, finish, quantity, or annual usage for pricing within 24 hours and DFM feedback within 48 hours.
Why CNCPioneer for
Stainless Steel Bushings?
One production partner for stainless grades, thread control, anti-galling DFM, finishing, inspection, and OEM documentation. Built for demanding medical, food, fluid, semiconductor, automotive, aerospace, and industrial programs.
Full Alloy Selection
Choose 303 for machinability, 304/304L for general use, 316/316L for chloride or chemical exposure, PH grades for strength, duplex for demanding environments, or a customer-specified alloy. XRF and certificate review can verify each lot.
100% Thread Gauge Control
OD and length alone do not guarantee assembly. We check pitch diameter, thread form, burrs, and finish buildup with calibrated plug or ring gauges. Capability can reach ±0.005mm, with thread class and mating fit reviewed for metric, UNC/UNF, BSP, NPT, and custom threads.
Anti-Galling Thread DFM
We review mating alloy, thread fit, engagement, lead-in chamfer, surface finish, speed, torque, and lubrication before machining. The DFM can recommend a dissimilar mating alloy, controlled clearance, passivation, or dry-film lubricant for repeated assembly.
Single-Setup Geometry Control
Guide-bushing Swiss CNC reduces deflection on miniature parts. MAZAK mill-turn supports larger flanged, stepped, blind-bore, slotted, and cross-drilled designs. Targets can include ±0.010mm bore-to-OD concentricity, ±0.010mm OD, and 0.010mm/25mm flange perpendicularity.
Finishing and Clean Assembly Support
Passivation, electropolishing, bead blasting, deburring, laser marking, ultrasonic cleaning, and clean packaging are available. We confirm Ra, edge condition, masking, post-finish thread fit, and documentation before production.
OEM Documentation and Traceability
Material certificates, XRF, dimensional and thread-gauge records, finish certificates, RoHS/REACH, C of C, PPAP Level 3, AS9102 FAIR, and lot traceability are available. Packaging can follow your receiving process.
Stainless Steel Bushing
Product Portfolio
Threaded sleeves, flanged bushings, bearing sleeves, spacers, valve bushings, slotted inserts, and fully custom parts, made from your drawing or application requirements.
Internal-Thread Bushings — Sleeves and Inserts
Through-thread, blind-thread, counterbored, stepped, shoulder, and closed-end designs for housings, valves, sensors, and serviceable enclosures. Available in 304, 316L, 17-4 PH, and specified grades with controlled engagement, chamfer, burrs, gauging, and passivation.

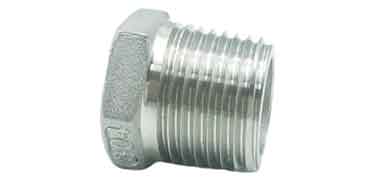

External-Thread and Male-Female Bushings
Reducers, adapters, and threaded standoffs that connect different interfaces. Metric, BSP, NPT, UNC, UNF, and custom combinations are checked for thread-root wall thickness, concentricity, sealing lands, wrench flats, and installation torque.

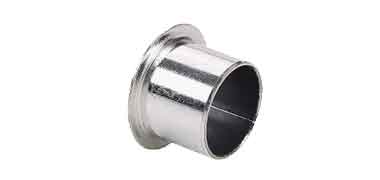

Flanged and Shoulder Bushings
Positive-stop and load-spreading designs for panels, manifolds, pumps, and precision equipment. We control flange size, shoulder height, face flatness, runout, and finish, with internal or external threads, bearing bores, O-ring grooves, or sealing faces.

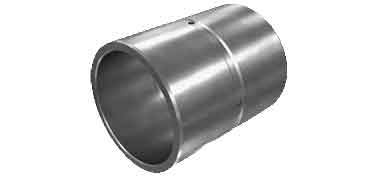

Precision Sleeve, Bearing, and Thin-Wall Bushings
For bearing surfaces, spacers, shaft guides, wear sleeves, and alignment. Thin-wall or long-length parts are reviewed for deflection, bore finish, roundness, distortion, oil holes, relief grooves, and shaft-to-housing concentricity.

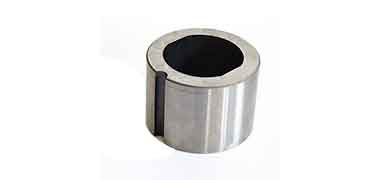

Slotted, Cross-Drilled, Grooved, and Special-Feature Bushings
Axial slots, cross holes, spiral grooves, O-ring seats, retaining-ring grooves, flats, vents, notches, and reliefs are produced by Swiss CNC, mill-turn, or secondary operations. First-piece inspection verifies feature location and burr-free edges.

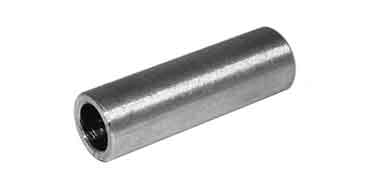

Sleeve Stainless Steel Bushing
Start with a 2D drawing, STEP file, mating dimensions, environment, pressure, temperature, assembly method, or annual usage. We support special threads, thin walls, blind ends, sealing grooves, marking, finishing, clean packaging, and inspection documentation, with a 24-hour quote and 48-hour DFM.
Industries & Applications
For OEM assemblies that need corrosion-resistant threads, clean surfaces, fluid compatibility, repeatable alignment, and packaging ready for manual or automated assembly.
Medical, Pharmaceutical & Laboratory Equipment
316L components for instruments, lab automation, diagnostics, pumps, manifolds, and cleanable housings. Electropolishing, passivation, controlled Ra, clean packaging, burr-free threads, traceability, and dimensional reports are available.
Food & Beverage
Bushings for filling machines, sanitary valves, conveyors, dosing systems, and washdown environments. Grade, passivation, electropolishing, transitions, surface finish, and clean packaging are matched to cleaning chemicals and hygienic requirements.
Automotive & EV
IATF 16949 parts for sensors, thermal modules, battery assemblies, actuators, brackets, and vehicle electronics. PPAP Level 3, Cpk studies, lot traceability, thread records, bar-coded packaging, and scheduled delivery are available.
Robotics
Threaded bushings for manifolds, sensors, hydraulic blocks, fittings, regulators, pumps, valves, and instruments. Metric, BSP, NPT, UNC, UNF, and custom threads can include sealing chamfers, O-ring grooves, and controlled fit; 316L and duplex suit demanding fluids.
Semiconductor, Electronics & Vacuum Equipment
Precision parts for vacuum hardware, wafer equipment, clean dry air systems, enclosures, cable interfaces, and instrument frames. 316L, electropolishing, ultrasonic cleaning, low-burr edges, controlled Ra, clean packaging, marking, and detailed records are supported.
Aerospace, Marine & Industrial Machinery
Custom bushings for aerospace instruments, marine equipment, automation, robotics, outdoor enclosures, and high-cycle machinery. 17-4 PH, 15-5 PH, duplex, 304, and 316L are reviewed for strength, salt exposure, wear, temperature, and weight, with FAIR, C of C, and traceability available.
Materials
Materials for Stainless
Steel Bushings
Select the grade by environment, strength, thread wear, finish, temperature, compliance, availability, and volume. Supported options range from free-machining 303 to corrosion-resistant 316L, PH grades, duplex, and customer-specified alloys.
304 / 304L Stainless Steel
304 and 304L balance corrosion resistance, strength, finish, and cost for equipment, enclosures, food machinery, fixtures, and general fluid applications. Available with internal or external threads, flanges, sleeves, spacers, and passivation.
316 / 316L Stainless Steel
316 and 316L are selected for higher chloride, chemical, marine, pharmaceutical, or washdown exposure. 316L is often preferred for cleanable assemblies and corrosion-sensitive fluid paths. We review environment, temperature, finish, treatment, and mating material before machining.
303 Stainless Steel
303 supports efficient machining and clean chip control for turned sleeves, spacers, threaded standoffs, instruments, and general hardware with moderate corrosion exposure. We confirm suitability and recommend 304 or 316L when more corrosion margin is needed.
17-4 PH / 15-5 PH Stainless Steel
17-4 PH and 15-5 PH provide higher strength, wear resistance, dimensional stability, and load capability than common austenitic grades. Heat-treatment condition, machining sequence, thread class, allowance, distortion, hardness, and final inspection are reviewed before quoting.
Duplex Stainless Steel
Duplex suits corrosion, strength, pressure, and marine applications beyond the margin of 304 or 316L. We review stock form, machinability, heat-treatment state, thread geometry, passivation, and records. Pressure-rated threads, sealing grooves, sleeves, and flanges are supported.
Special Stainless Grades
Drawings may specify 310, 321, 410, 420, Nitronic, 718, or another stainless or nickel-based alloy. We review machinability, supply, heat treatment, finish, thread performance, and cost, with certificates, XRF, hardness reports, and traceability available.
Surface Treatments & Finishing
Choose the finish by corrosion resistance, cleanliness, appearance, friction, sealing, and thread fit. Masking, edge condition, finish growth, cleaning, and inspection are confirmed before release.
Passivation for Corrosion Protection
Nitric or citric passivation removes free iron and supports corrosion resistance. We confirm the standard, masking, rinse, drying, certificate, and post-passivation thread fit.
Electropolishing for Smooth, Clean Surfaces
Electropolishing can reduce roughness, improve cleanability, brighten the surface, and support fluid or hygienic applications. We confirm Ra, dimensional allowance, thread masking, edge rounding, cleaning, and post-process inspection.
Bead Blast and Uniform Matte Finish
Bead blasting creates a consistent matte surface for visible parts, equipment covers, instruments, and cosmetic assemblies. Media, pressure, masking, edges, cleanliness, and protected threads are controlled to preserve fit and sealing surfaces.
Precision Deburring and Thread Lead-In Control
Because stainless steel work-hardens, burrs and lead threads need deliberate control. Deburring, chamfering, brushing, or tumbling is selected by geometry, with bore, sealing, thread, and flange areas protected for smooth assembly.
Ultrasonic Cleaning and Clean Packaging
For medical, semiconductor, vacuum, food, and fluid systems, ultrasonic cleaning, particle-conscious handling, protected threads, and sealed bags, trays, tubes, or compartment packs can match your receiving process.
Laser Marking and Traceable Identification
Part numbers, lot codes, orientation marks, logos, and assembly IDs can be marked with controlled depth, contrast, location, and cleanability, without affecting threads, seals, or mating surfaces.
Our DFM confirms treatment, masking, Ra, post-finish thread gauging, cleaning, marking, and protective packaging for each stainless steel bushing program.
IATF 16949 & AS9100D Quality System for
Stainless Steel Bushings
Four controls protect the program from prototype to repeat supply: alloy identity, thread fit, geometry after finishing, and documentation traceability.
Alloy Verification + Corrosion and Galling DFM
Material certificates and SII XRF can verify incoming lots. DFM confirms grade, thread standard, engagement, wall thickness, mating material, environment, treatment, and post-finish gauge plan before machining.
- XRF and material certificates for standard, PH, duplex, and special grades
- Thread fit, wall thickness, mating alloy, and torque reviewed in DFM
- Treatment, Ra, cleaning, masking, and post-finish gauge plan documented
Swiss CNC and MAZAK Geometry Control
Machine choice follows size, length-to-diameter ratio, grade, and feature complexity. Swiss CNC supports small parts; MAZAK mill-turn controls larger flanges, slots, cross holes, and threaded features. Targets can include ±0.005mm thread pitch diameter, ±0.010mm bore-to-OD concentricity, and 0.010mm/25mm flange perpendicularity.
- Guide-bushing Swiss CNC for miniature bushings
- MAZAK mill-turn single-setup machining for complex geometry
- Optical, CMM, air-gauge, and thread-gauge inspection as required
100% Thread Gauge Before and After Finishing
Calibrated plug gauges check internal threads and ring gauges check external threads. Lead threads, chamfers, surface damage, galling, bore, flange, groove, and finish are inspected, with post-treatment re-gauging when specified.
- 100% plug or ring gauge inspection per bushing
- Post-passivation or post-electropolishing verification when required
- Bore, OD, concentricity, flange, groove, burr, and finish inspection
Documentation — Reports, Certificates, and Traceability
Dimensional, material, XRF, hardness, finish, thread-gauge, RoHS/REACH, C of C, PPAP Level 3, and AS9102 FAIR records are available by program. Traceability links material, machining, finishing, inspection, and packaging lots.
- Dimensional, thread, material, finish, and C of C records
- PPAP Level 3 for automotive and EV programs
- AS9102 FAIR for aerospace and qualified precision programs
Stainless Steel Bushing FAQ
Answers to common questions about design inputs, grade selection, galling prevention, inspection, and lead time.
Send a 2D drawing or STEP file with grade, heat-treatment condition, thread size and class, ID, OD, length, key flange or shoulder dimensions, finish, quantity, and packaging notes. Without a drawing, mating screw or shaft details, host-hole size, environment, assembly method, torque, and annual usage are enough to start.
304 is a common general-purpose choice; 316L suits chloride, chemical, medical, food, marine, and cleanable environments; 303 prioritizes machinability; PH and duplex grades add strength, wear, pressure, or corrosion performance. DFM confirms the best match for the application.
Review the mating alloy, thread fit, engagement, chamfer, surface finish, speed, torque, and lubrication before machining. A dissimilar alloy, controlled clearance, suitable class, or approved lubricant may be recommended, followed by burr control and 100% plug or ring gauging.
Prototypes typically take 5–8 business days after drawing approval and material availability. 316L, PH, duplex, electropolished, or documentation-heavy programs may take 8–15 business days. Volume timing depends on material, cycle time, finishing, inspection, and quantity. Quotes arrive within 24 hours and DFM within 48 hours for most projects.
Get a Quote for Customized Stainless Steel Bushings
Upload a drawing or 3D CAD model, mating screw or shaft details, grade, environment, finish, quantity, or annual usage. Receive a quote within 24 hours and focused DFM feedback within 48 hours.
