CNC Precision Parts: Drawing, Tolerance and Inspection

CNC precision parts are components made to defined dimensional, geometric and surface requirements. The word precision does not specify a single tolerance, and a machine type does not establish the limits that every material and feature can achieve.

For a shaft, pin, bushing or fitting, a useful manufacturing enquiry identifies the features that control fit and function, their datums, the material condition and the method of acceptance. CNCPioneer reviews custom components through Swiss machining and CNC turning and milling; feasibility and inspection scope are agreed for the individual drawing.

Define Precision Through the Drawing

Separate the nominal geometry from the permitted variation and the surface condition. A diameter size limit, a runout requirement and a surface-texture specification describe different characteristics. One should not be used as a substitute for another.

  • Size: define the limits for diameters, lengths, widths and other controlled dimensions.
  • Geometry: identify the required form, orientation or location controls and their datum references.
  • Surface: specify the relevant texture, coating and edge conditions.
  • Acceptance condition: state when and how the part is measured, including any treatment or conditioning that affects the result.

The responsible designer should identify which features are critical. Applying the tightest available number everywhere can increase setup and inspection work without improving the function of the assembly.

A Tolerance Example Is Not a Capability Claim

For a simple arithmetic example, a drawing dimension of 20.00 ±0.02 mm has lower and upper size limits of 19.98 mm and 20.02 mm. This example explains a dimensional interval; it is not CNCPioneer's standard tolerance or an acceptance rule for a particular product.

The example alone says nothing about a shaft's straightness, a bore's position, a surface finish or how measurement uncertainty will be handled. Those requirements need to be defined and reviewed separately. A supplier should confirm feasibility against the actual material, feature and inspection approach.

What Do General Tolerances and GD&T Standards Do?

ISO 2768-1 addresses general tolerances for linear and angular dimensions without individual tolerance indications and provides four tolerance classes. It does not define one universal ±0.001 mm limit for all linear dimensions. The applicable drawing note, class, dimension and contractual edition must be considered together.

ASME Y14.5 provides rules and symbols for stating and interpreting dimensioning and geometric tolerancing requirements. Referring to it does not certify a supplier or guarantee a particular machining accuracy. State the applicable edition and resolve conflicting drawing requirements before production.

Do not replace a missing tolerance with a marketing claim, machine positioning specification or an unrelated example. Ask the designer to define the requirement and the supplier to review how it will be produced and inspected.

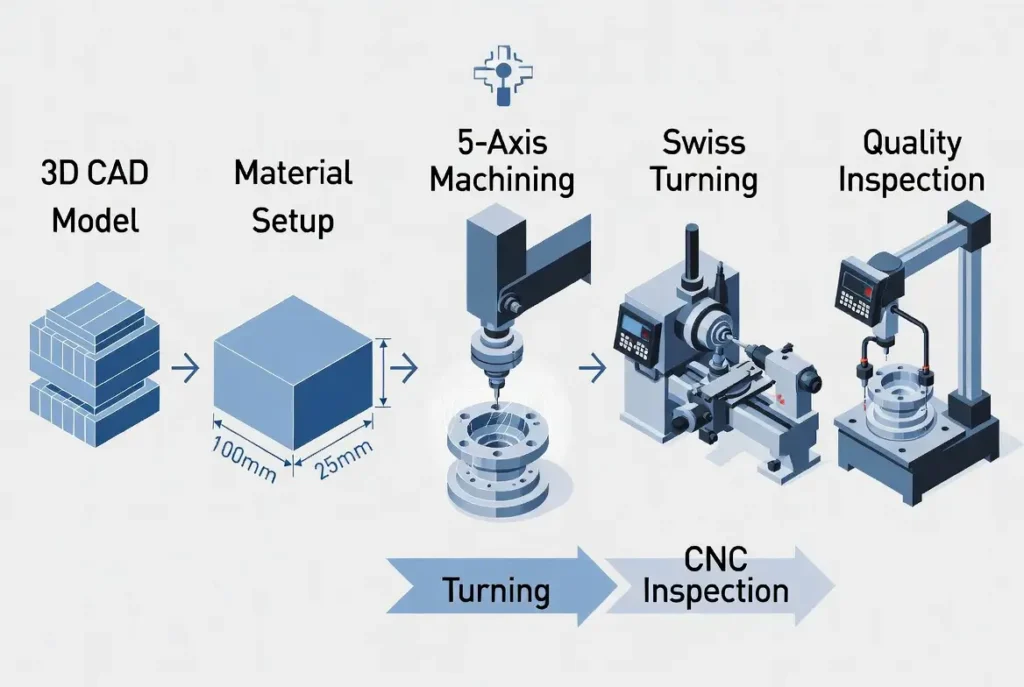

Match the Manufacturing Route to the Features

Swiss machining can be considered for small bar-stock parts with slender sections or repeated fine features. Guide-bushing support close to the cutting area can help control deflection; stock condition, geometry, tool access and inspection still need review. It does not imply that deflection disappears or that every feature can hold a sub-micron tolerance.

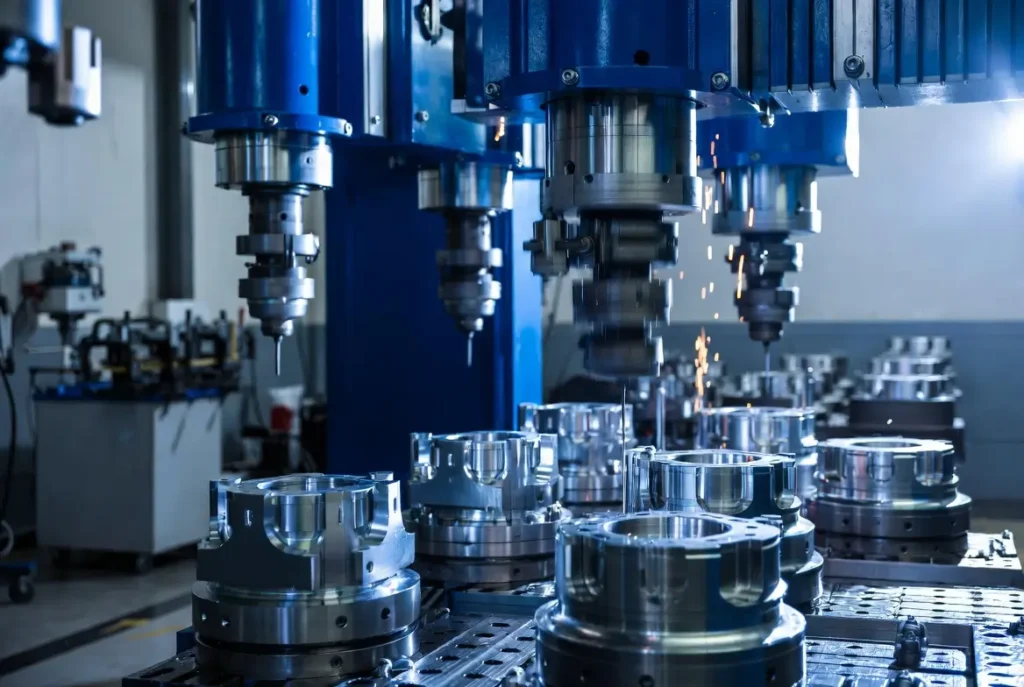

CNC turning and milling can combine cylindrical surfaces with flats, slots, holes or other milled features. Workholding and access determine how much can be combined. Heat treatment, grinding, coating or other secondary operations must be identified and confirmed where required.

Explore drawing requirements for machined pins and turned shafts. These component examples do not establish the acceptance limits for a different drawing.

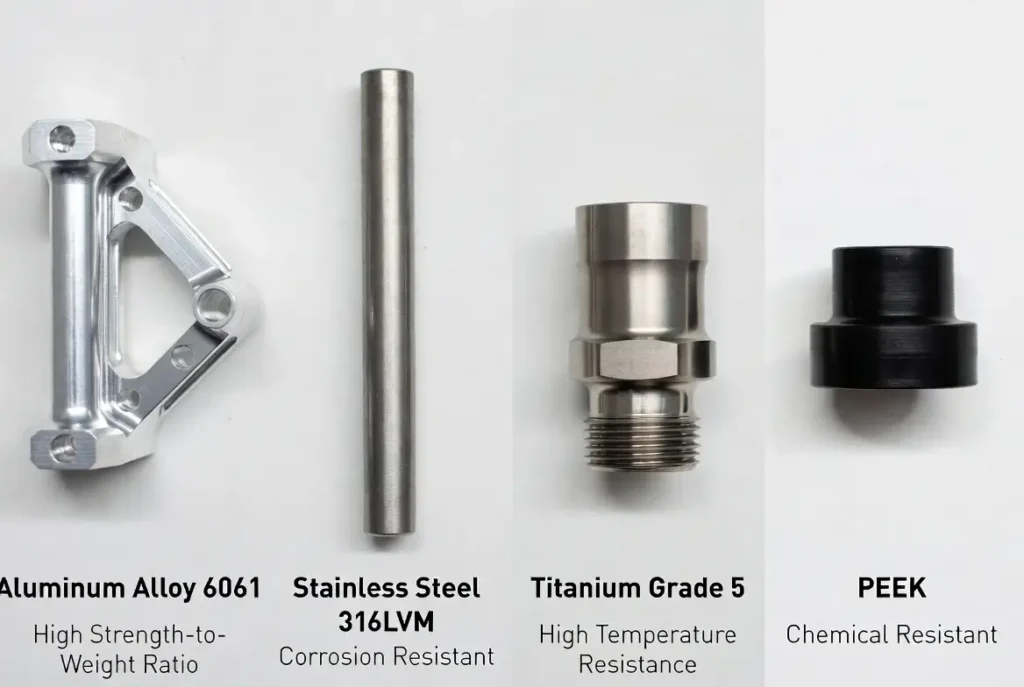

Review Material and Finishing Together

Specify the material grade, stock form and supplied condition. Heat treatment, coating, material stress, thin sections and the measurement environment can affect final acceptance. Define which dimensions apply before and after processing, and identify features that need protection or masking.

The material selection guide helps structure grade and application questions. The surface finish guide explains why a texture requirement should be stated independently of a dimensional tolerance. Approve material or process substitutions through the responsible designer.

Agree How the Part Will Be Measured

An inspection plan should connect each critical feature to a suitable measuring method, datum setup and recording requirement. A small bore, a thread, a locating face and a surface texture may require different methods. The inspection approach must also account for access to the feature.

  • Identify the drawing revision and characteristics to be recorded.
  • Agree inspection condition, method, sampling and any first-article requirements.
  • Clarify how measurement uncertainty and borderline results will be handled.
  • State material records, traceability and the required report format.
  • Distinguish dimensional acceptance from separate functional or assembly validation.

Neither a CMM report nor a supplier certificate replaces the accepted component specification. Confirm the scope and availability of the records needed for your order.

Illustrative Review: A Stepped Shaft

This is a design-review example, not a reported customer result. A stepped shaft may have two bearing journals, a locating shoulder, a thread and a milled flat. First identify the assembly datum axis and the locating face. Then define the size and geometric relationships needed at the journals and the position of the flat.

Next review the material condition, finish and any operations after turning. Finally agree the measurement setup and records. The result is a clearer manufacturing specification, not a claim of a particular yield, cost saving or accuracy without supporting production evidence.

Quote the Required Precision, Quantity and Inspection

Pricing depends on the material, geometry, setup, quantity, finishing and inspection scope. A tighter requirement may change the process and verification effort. There is no universal price range or fixed percentage saving for all precision parts.

Send the drawing revision, available model, material condition, quantity, finish, critical features, required records and target date. Use the CNC machining cost guide when comparing quotations, and request a drawing-based machining review.

CNC Precision Parts Questions

What tolerance can CNCPioneer guarantee?

The accepted drawing and quotation define the requirements for each order. Send the material, geometry, datums and inspection requirements so feasibility can be reviewed feature by feature.

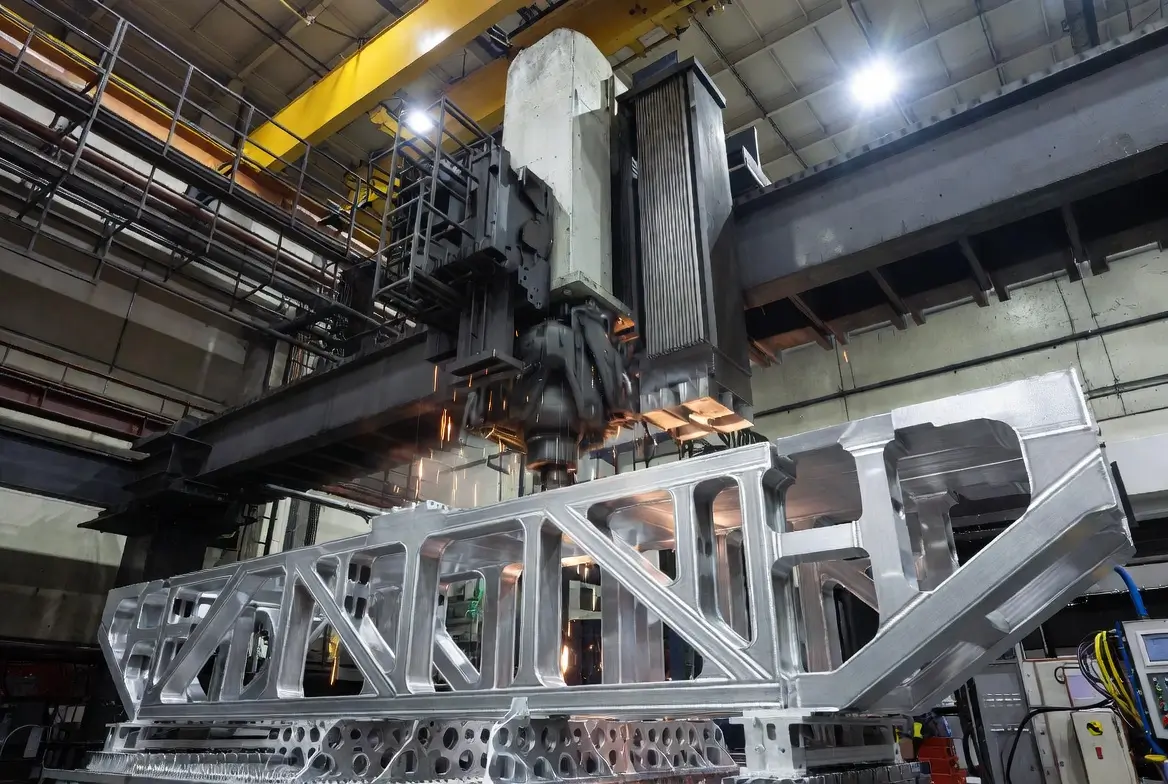

Does a five-axis or Swiss machine guarantee a specific accuracy?

No. Machine configuration is only one part of the process. The material, setup, tooling, feature geometry, finishing and measurement method affect the result.

Is a prototype approval enough for every later batch?

Record the drawing revision and the production acceptance plan. Repeat orders still need the agreed process and inspection controls; any changes should be reviewed before release.
