In 2026, prototype CNC machining remains the gold standard for engineers, product designers, and manufacturers who need functional, high-precision parts fast. Whether you’re looking for “CNC prototype machining,” or “prototype CNC machining services,” the process is the same: subtractive manufacturing that turns your CAD file into a real, testable component in days — not weeks.
Unlike 3D printing, prototype CNC machining delivers production-grade tolerances (±0.01 mm), real material properties, and surface finishes ready for end-use testing.
In this complete 5-step guide, we’ll walk you through the entire prototype CNC machining workflow so you can go from digital design to physical part in as little as 5–7 days.

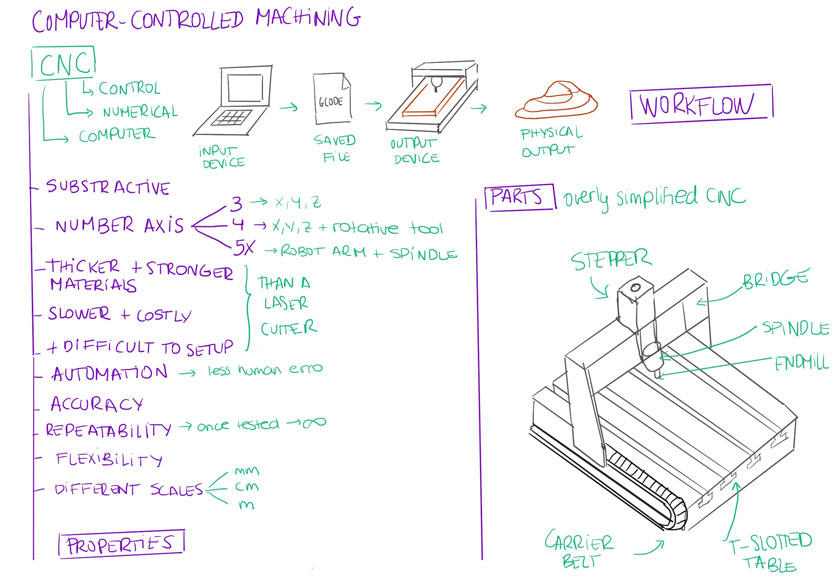

Computer-controlled machining – Carla Molins Pitarch’s FabAcademy site
Above: Simple CNC workflow diagram showing the journey from CAD to finished prototype.
What Is Prototype CNC Machining?
Prototype CNC machining (also called CNC prototype machining or CNC machining prototype) uses computer-controlled mills, lathes, and routers to remove material from a solid block. It’s ideal for:
- Functional prototypes
- Low-volume production runs (1–500 pcs)
- Parts that must match final production material and strength
Popular applications in 2026 include automotive brackets, medical device housings, aerospace fixtures, and consumer electronics enclosures.

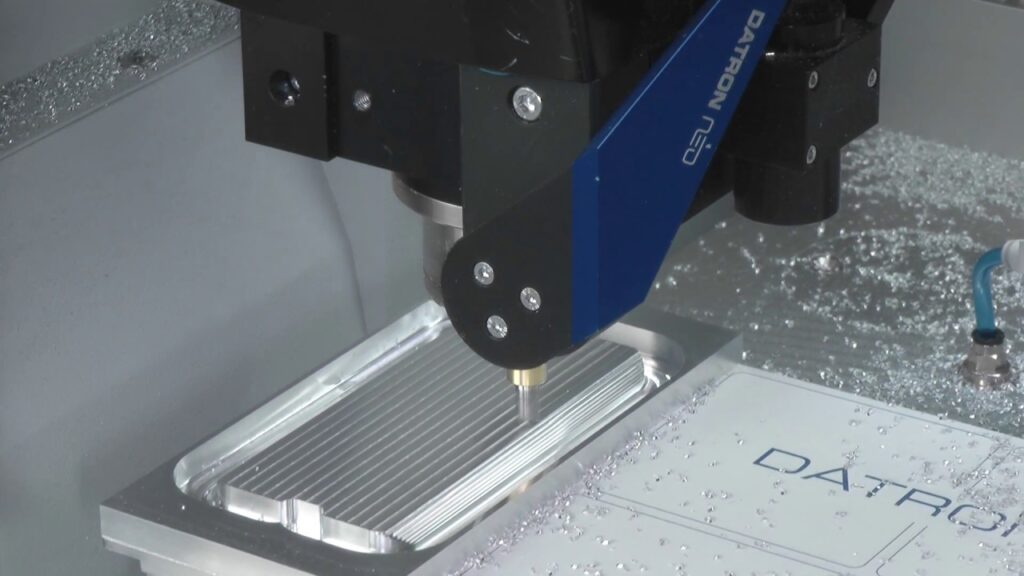

Real-time CNC milling of an aluminum prototype — the heart of the process.
The 5-Step Prototype CNC Machining Process
Step 1: Design & CAD Modeling
Everything starts with a precise 3D CAD model (SolidWorks, Fusion 360, or Onshape). Designers must consider:
- Wall thickness (minimum 0.8 mm for metals, 1.5 mm for plastics)
- Internal features accessible by tool
- Draft angles for easier machining
Pro tip: Upload your file to our instant quoting tool and get DFM (Design for Manufacturability) feedback within minutes.
Step 2: CAM Programming & Toolpath Generation
CAM software converts the CAD model into G-code toolpaths. Engineers choose:
- Cutting tools (end mills, ball mills, drills)
- Speeds & feeds
- 3-axis vs 5-axis strategies
This step is where prototype CNC machining shines — modern CAM in 2026 includes AI-optimized toolpaths that reduce machining time by up to 40%.
Step 3: Material Selection & Machine Setup
Choose the right material for your prototype:
| Material | Strength | Cost | Best For | Typical Lead Time |
|---|---|---|---|---|
| Aluminum 6061/7075 | High | $$ | Structural prototypes | 3–5 days |
| ABS / Delrin | Medium | $ | Fit & function testing | 2–4 days |
| Stainless Steel | Very High | $$$ | Medical & high-wear parts | 5–7 days |
| Brass / Copper | Medium | $$ | Electrical prototypes | 4–6 days |
We stock over 50 materials in-house, so prototype CNC machining services can start the same day you approve the quote.
Step 4: Actual Machining
The CNC machine removes material layer by layer. Modern 5-axis centers can machine complex geometries in a single setup.
Watch this excellent step-by-step video that matches our exact process:
How a Company Used Aluminum & CNC Machining to Manufacture Automotive Reflector Prototypes | Techno FAQ
Step 5: Post-Processing, Finishing & Quality Inspection
- Deburring & cleaning
- Surface finishes (anodizing, polishing, bead blasting, powder coating)
- CMM inspection & full dimensional report
Your part is now ready for functional testing or customer presentation.
Real Case Study: Automotive Sensor Housing Prototype
A Silicon Valley EV startup needed 12 aluminum sensor housings in 6 days. Result: We delivered 12 parts with ±0.02 mm tolerance using 5-axis prototype CNC machining. The customer went straight to road testing — no tooling required. Total cost: $1,850 (including anodizing). Traditional injection molding would have cost $18,000+ and taken 8 weeks.
Cost & Lead Time Comparison Table (2026 US Pricing)
| Part Complexity | Material | Quantity | Price per Part | Total Lead Time |
|---|---|---|---|---|
| Simple bracket | Aluminum 6061 | 1–5 pcs | $65–$120 | 3–4 days |
| Medium enclosure | ABS Plastic | 1–10 pcs | $45–$85 | 2–3 days |
| Complex 5-axis | Stainless 304 | 1–5 pcs | $180–$350 | 5–7 days |
| Multi-part kit | Aluminum + Brass | 5 pcs | $420–$680 | 6 days |
Note: Prices include DFM review, machining, and basic finishing. Volume discounts start at 50+ pcs.
Frequently Asked Questions
What is the difference between prototype CNC machining and 3D printing?
CNC machining gives stronger, more accurate parts with real production materials. 3D printing is faster for very complex internal geometries but often weaker.
How much does prototype CNC machining cost in 2026?
Simple parts start at $45–$80. Complex 5-axis prototypes range $200–$500. Get an instant quote — most customers are shocked how affordable it is compared to 2023 prices.
How long does CNC prototype machining take?
Standard lead time is 3–7 days from order to ship. Rush options (24–48 hrs) available for urgent projects.
What tolerances can prototype CNC machining achieve?
Standard: ±0.05 mm. High-precision: ±0.01 mm (common for aerospace and medical).
Which materials are best for CNC prototypes?
Aluminum 6061 is the #1 choice (light, strong, cheap). ABS/Delrin for quick fit checks. Steel or titanium for high-strength needs.
Can you machine clear or transparent prototypes?
Yes — acrylic and polycarbonate are CNC machinable and can be polished to optical clarity.
What file formats do you accept for CNC machining prototype services?
STEP, IGES, STL, SolidWorks, Fusion 360 — any standard CAD format.
Is prototype CNC machining suitable for low-volume production?
Absolutely. Many clients scale from 1 prototype to 200–500 production parts on the same machines.
How does CNC rapid prototyping compare to injection molding?
CNC is 10x faster and 20x cheaper for prototypes and bridge production. No tooling cost.
Do you offer surface finishes and secondary operations?
Yes — anodizing, plating, painting, threading, heat treatment, and assembly.
Ready to Launch Your Next Prototype?
Stop waiting weeks for parts. With our prototype CNC machining services, you can have functional, production-grade prototypes in your hands in under a week.
Get an instant quote in 30 seconds — upload your CAD file now. Or book a free 15-minute design review with our engineers.
Have questions about prototype CNC machining? Drop a comment or message us directly. We reply within 1 hour during business hours.
Let’s build your prototype faster — together.
