CNCPioneer is an IATF 16949 and AS9100D certified manufacturer specializing in 5-axis CNC machining aerospace component production in China. We machine precision aerospace brackets, actuator parts, flight-control components, UAV structures, instrument bodies, housings, fixtures, clevises, shafts, and complex multi-sided components from stainless steel, alloy steel, tool steel, aluminium, brass, bronze, titanium, and customer-specified materials. Our platform combines 5-axis simultaneous machining, CNC turning, mill-turn machining, grinding, heat treatment, hardening, plating, passivation, laser marking, and dimensional control to ±0.005mm on qualified features. Drawing or STEP-file inquiries receive 24-hour quotes and 48-hour DFM feedback.
What Are 5-Axis
Aerospace Components?
5-axis CNC machining aerospace components are complex parts produced with simultaneous tool access to multiple faces, angled surfaces, compound curves, deep pockets, thin walls, holes, ribs, and precision datums. Typical parts include aerospace brackets, actuator clevises, flight-control fittings, UAV structures, instrument housings, engine and landing-system fixtures, and custom multi-feature components. Five-axis machining reduces setups and preserves positional accuracy across related features defined by the aerospace assembly drawing.
The performance of 5-axis CNC machining aerospace components depends on diameter, roundness, straightness, surface finish, hardness, material, fit class, retention method, shear load, bending load, wear, and mating-hole condition. CNCPioneer reviews the complete pin and hole interface before production, confirming material, turning or grinding route, heat treatment, surface treatment, inspection method, and packaging for reliable assembly and repeatability.
-
Pin and hole DFM — fit class, load, retention, chamfer, and assembly method CNCPioneer reviews pin diameter, hole tolerance, press or slip fit, axial retention, shear and bending load, insertion direction, chamfer, end radius, mating material, and service environment before choosing the machining and finishing route.
-
Swiss CNC, CNC turning, mill-turn, and grinding for precision pin diameters Small cylindrical features can be produced with Swiss CNC support, while 5-axis machining handles angled faces, compound contours, pockets, ribs, cross-drilled features, and multi-sided aerospace components with fewer setups and stable datums.
-
Material, hardness, and wear selection for pins in moving assemblies Stainless steel, alloy steel, tool steel, brass, bronze, aluminium, and titanium options are matched to shear load, wear, corrosion, impact, temperature, lubrication, and required hardness or surface treatment.
-
24-hour 5-axis CNC machining aerospace components quotes from a China precision factory Upload a drawing, STEP file, mating-hole tolerance, load data, material requirement, hardness, plating, heat-treatment, quantity, or annual usage. CNCPioneer returns pricing within 24 hours and DFM feedback within 48 hours.
Why CNCPioneer for
5-Axis Aerospace Components?
Among 5-axis CNC machining aerospace components manufacturers globally, CNCPioneer's Swiss CNC, CNC turning, MAZAK mill-turn, and grinding platform, stainless and alloy steel material options, fit and hardness DFM, heat-treatment and coating support, 100% critical-dimension inspection, and 40–60% China cost advantage make our factory a dependable partner for automotive, aerospace, robotics, medical, tooling, electronics, hydraulic, and industrial OEM programmes.
Pin Diameter, Roundness, and Straightness Control
Pin fit is governed by more than nominal diameter. Roundness, straightness, surface finish, taper, burrs, and hole alignment determine whether a dowel pin locates accurately, a pivot pin rotates smoothly, or a press-fit pin retains its position. CNCPioneer controls turning, sizing, grinding, deburring, and measurement according to the fit class. Qualified production can reach pin diameter capability of ±0.005mm and bore-to-pin concentricity targets matched to the assembly.
Swiss CNC and CNC Turning for Small, Long, and Complex Pins
Small or long slender pins can deflect under cutting pressure, especially in hard stainless steel or alloy steel. CNCPioneer uses Swiss CNC guide-bushing support for miniature and slender parts, CNC turning for standard diameters, and MAZAK mill-turn equipment for shoulders, grooves, cross-holes, flats, threads, and special end profiles. The process is selected according to diameter, length, material, quantity, tolerance, and feature complexity.
Dowel, Shoulder, Clevis, Pivot, and Retaining Pin DFM
Each pin type has different assembly and load requirements. Dowel pins need accurate diameter and chamfers; shoulder pins need controlled step and shoulder height; clevis pins need cross-hole position and retaining clearance; pivot pins need wear and surface-finish control; grooved pins need correct retention-ring or circlip geometry. CNCPioneer reviews the mating hole, load path, retention method, assembly access, and service condition before releasing the CNC programme.
Material and Heat Treatment Matched to Pin Duty
303 or 304 stainless steel can suit general corrosion-resistant pins, 316L supports chemical or marine exposure, 4140 or 4340 alloy steel supports higher mechanical load, tool steels support wear and hardness, and brass or bronze can support conductivity or low-friction interfaces. CNCPioneer reviews hardness, core strength, case depth, corrosion, wear, temperature, and machining allowance before recommending annealing, hardening, tempering, carburising, nitriding, or other treatment.
Grinding, Polishing, Plating, and Surface Protection
Precision 5-axis CNC machining aerospace components may require centreless grinding, cylindrical grinding, polishing, passivation, black oxide, zinc plating, electroless nickel, hard chrome, nitriding, or a dry-film coating. CNCPioneer reviews dimensional allowance, hardness, coating thickness, fit after finishing, corrosion exposure, surface roughness, and masking. Critical pin diameters and retaining grooves are re-inspected after treatment when required.
5-Axis Aerospace Components China Supply with OEM Documentation
CNCPioneer supplies 5-axis CNC machining aerospace components programmes with material certificates, hardness and heat-treatment records, dimensional reports, diameter and roundness results, surface-finish readings, coating certificates, RoHS/REACH documentation where applicable, Certificates of Conformance, PPAP Level 3 for automotive programmes, AS9102 FAIR for aerospace programmes, and lot traceability. Bulk tubes, trays, VCI bags, oil-protected packs, and bar-coded labels are available.
5-Axis Aerospace Components
Product Portfolio
Our 5-axis CNC machining aerospace component factory produces structural brackets, actuator bodies, flight-control fittings, avionics housings, UAV structures, landing-system parts, precision fixtures, shafts, bushings, and complex multi-sided components for aerospace OEM production.
Aerospace Structural Brackets and Fittings

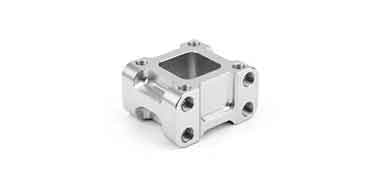

5-axis CNC machined brackets, mounts, ribs, lugs, supports, frames, and structural fittings for aircraft, UAV, defence, and precision aerospace assemblies. CNCPioneer controls datum relationships, hole positions, wall thickness, pocket geometry, mating faces, edge breaks, weight-reduction features, surface finish, and repeatable assembly accuracy.
Actuator Bodies and Flight-Control Fittings

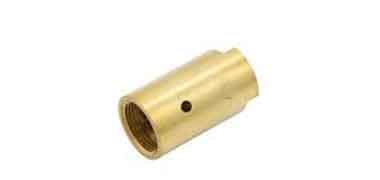

Actuator housings, clevis bodies, yoke components, control linkage fittings, pivot blocks, bearing interfaces, and motion-transfer components for flight-control and actuation systems. CNCPioneer reviews load direction, coaxiality, pin-hole accuracy, bearing fit, lubrication access, fatigue exposure, corrosion resistance, and post-treatment dimensional stability.
Avionics Housings and Instrument Components

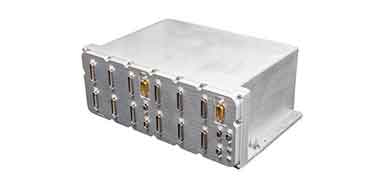

Precision housings, covers, frames, panels, connector bodies, sensor mounts, heat-dissipation structures, and shielded enclosures for avionics, instruments, and aerospace electronics. Requirements can include thin walls, deep pockets, connector cut-outs, sealing faces, threaded inserts, flatness control, cosmetic surfaces, laser marking, cleaning, and protective finishing.
Aerospace Applications
CNCPioneer supports aerospace programmes that require complex 5-axis geometry, lightweight structures, accurate datums, controlled interfaces, corrosion resistance, traceable materials, and documented inspection for flight, UAV, avionics, propulsion-adjacent, landing, and ground-support systems.
Airframe
5-axis machined structural brackets, mounting frames, supports, ribs, lugs, lightweight fittings, cabin hardware, and installation components for airframe and cabin assemblies. CNCPioneer controls datum relationships, hole positions, wall thickness, edge breaks, weight-reduction pockets, mating faces, surface finish, and traceable documentation for repeatable installation.
Flight Control
Components for flight-control linkages, actuator assemblies, yoke mechanisms, pivot interfaces, bearing locations, motion-transfer paths, and control hardware. We review load direction, coaxiality, bearing fit, pin-hole accuracy, lubrication access, fatigue exposure, corrosion resistance, and post-treatment dimensional stability.
Avionics
5-axis machined housings, covers, frames, connector supports, sensor mounts, heat-dissipation structures, shielded enclosures, and instrument hardware for avionics and aerospace electronic systems. Requirements can include thin walls, pockets, connector cut-outs, sealing faces, threaded inserts, flatness control, cosmetic surfaces, marking, cleaning, and protective finishing.
Materials
Materials for CNC
Machined Pins
CNCPioneer's 5-axis CNC machining aerospace components material platform covers corrosion-resistant stainless steel, alloy and tool steel, aluminium, brass, bronze, titanium, and customer-specified materials. Selection is matched to shear and bending load, wear, hardness, corrosion, weight, temperature, fit, and annual quantity.
303 / 304 / 316L Stainless Steel
303 stainless supports efficient machining for general pins; 304 supports broad corrosion resistance; and 316L is selected for marine, chemical, medical, food, and cleanable applications. CNCPioneer produces stainless 5-axis CNC machining aerospace components with turned or ground diameters, passivation, polishing, laser marking, thread or groove features, and material certificate documentation.
17-4 PH / 15-5 PH Stainless Steel
17-4 PH and 15-5 PH stainless are used when a 5-axis CNC machining aerospace component needs higher strength, hardness, wear resistance, or dimensional stability than austenitic stainless. CNCPioneer reviews heat-treatment condition, machining before or after hardening, allowance, distortion, hardness, grinding, and final fit. These grades support aerospace, actuator, industrial, and high-load applications.
4140 / 4340 Alloy Steel
4140 and 4340 alloy steel support heavy-duty 5-axis CNC machining aerospace components, clevis pins, pivot pins, shafts, and hydraulic or construction components. They can be supplied in a specified hardness or heat-treated condition with black oxide, zinc, phosphate, nitriding, plating, or other protection. CNCPioneer reviews core strength, case or surface hardness, machining allowance, grinding, and corrosion requirements.
Tool Steel and Hardened Steel
Tool steel and hardened steel are selected for mould pins, ejector pins, guide pins, tooling, dies, wear surfaces, and high-cycle mechanisms. CNCPioneer reviews hardness, grind allowance, straightness, surface finish, heat treatment, coating, and replacement requirements. Ground diameters and polished or coated surfaces can be included for demanding fit and wear conditions.
Aluminium and Titanium
Aluminium alloys support lightweight pins, spacers, optical components, robotics, electronics, and aerospace assemblies; titanium supports high strength-to-weight ratio and corrosion-sensitive applications. CNCPioneer reviews fit, galling, hardness, anodising or surface treatment, tool wear, thread or groove features, and material certification before production.
Brass, Bronze, and Copper Alloys
Brass, bronze, and copper alloys are used for conductive pins, electrical contacts, low-friction pivots, valve components, and mating interfaces where galling or corrosion behaviour differs from steel. CNCPioneer reviews conductivity, wear, hardness, surface finish, plating, lubrication, and mating material before quoting a non-ferrous 5-axis CNC machining aerospace component.
Surface Treatments for
5-Axis Aerospace Components
Surface treatment for 5-axis CNC machining aerospace components is selected according to hardness, wear, corrosion, friction, fit, lubrication, appearance, and assembly requirements. CNCPioneer reviews dimensional allowance, masking, edge condition, and post-treatment inspection before production.
Passivation for Stainless Steel Pins
Nitric or citric passivation supports corrosion resistance for 303, 304, 316L, and precipitation-hardening stainless 5-axis CNC machining aerospace components. CNCPioneer reviews masking, thread or hole fit, edge condition, cleaning, drying, and certificate requirements. Post-passivation inspection confirms the pin remains ready for press, slip, pivot, or locating assembly.
Black Oxide for Alloy and Tool Steel Pins
Black oxide supports appearance, mild corrosion protection, and oil retention on alloy steel, tool steel, and other ferrous 5-axis CNC machining aerospace components. CNCPioneer reviews dimensional change, oil treatment, masking, hardness, surface finish, and packaging. It is commonly used for tooling pins, pivot pins, shafts, fixtures, and industrial retaining components.
Zinc, Electroless Nickel, and Plated Protection
Zinc, electroless nickel, and other plated finishes can improve corrosion resistance, hardness, appearance, or chemical resistance for 5-axis CNC machining aerospace components. CNCPioneer reviews plating thickness, fit allowance, masking, hydrogen-risk considerations for high-strength steel, groove and thread dimensions, and post-treatment inspection before release.
Centreless Grinding and Polishing for Precision Fits
Centreless or cylindrical grinding is used when a 5-axis CNC machining aerospace component requires tighter diameter, roundness, straightness, or surface-finish control than turning alone can provide. CNCPioneer reviews grinding allowance, heat treatment, chamfer protection, groove position, hardness, and final fit. Polishing can reduce friction and support bearing or pivot applications where specified.
Nitriding, Hardening, and Wear Surface Control
Nitriding, carburising, hardening, and tempering can improve the wear and load performance of alloy or tool steel 5-axis CNC machining aerospace components. CNCPioneer reviews core strength, case depth, hardness, distortion, machining sequence, grinding allowance, and final diameter. This is suitable for high-cycle pivots, tooling pins, ejector pins, shafts, and heavy-duty mechanisms.
Laser Marking, Cleaning, Oil, and Protective Packaging
OEM 5-axis CNC machining aerospace components may require part numbers, lot codes, orientation marks, clean surfaces, rust-preventive oil, VCI bags, tubes, or compartment packaging. CNCPioneer reviews marking location, readability, surface protection, corrosion risk, contact surfaces, and receiving labels so pins arrive identifiable, protected, and ready for assembly.
Passivation, black oxide, zinc, electroless nickel, centreless grinding, polishing, nitriding, hardening, deburring, laser marking, oil or VCI protection, post-treatment diameter inspection, cleaning, and packaging are included in CNCPioneer's DFM review for 5-axis CNC machining aerospace components inquiries.
IATF 16949 & AS9100D Quality System for
5-Axis Aerospace Components
CNCPioneer's 5-axis CNC machining aerospace components quality system focuses on four production risks: material and hardness identity, multi-axis datum and feature accuracy, heat-treatment or coating change, and OEM documentation traceability. This supports prototypes, flight hardware, replacement parts, and repeat production from an aerospace component factory.
Material, Hardness, and Fit DFM Before Machining
Incoming materials are checked against certificates and can receive alloy or grade verification. CNCPioneer's DFM confirms pin type, diameter, fit class, hole tolerance, shear and bending load, retention, hardness, heat treatment, surface treatment, chamfer, radius, material, and inspection plan before machining. This prevents a pin that fits nominally but fails in wear, load, or assembly service.
- Material and certificate review for stainless, alloy steel, tool steel, aluminium, brass, bronze, and titanium pins
- Pin diameter, hole tolerance, press/slip fit, retention, load, hardness, and assembly method confirmed in DFM
- Heat treatment, coating, grinding allowance, surface finish, chamfer, and final gauge plan documented
Swiss CNC, CNC Turning, Mill-Turn, and Grinding Control
Swiss CNC guide-bushing machines, CNC lathes, MAZAK mill-turn centres, centreless grinders, and cylindrical grinding are selected according to pin diameter, length, material, features, quantity, and fit. Small and slender pins receive close support to reduce deflection; shoulders, cross holes, grooves, threads, and special profiles are produced with controlled datums. Targets can include pin diameter ±0.005mm, straightness, roundness, and concentricity matched to the application.
- Swiss CNC guide-bushing support for miniature, long, and slender pins
- CNC turning and MAZAK mill-turn for shoulders, grooves, cross holes, threads, and special ends
- Centreless or cylindrical grinding for tighter diameter, roundness, straightness, and surface finish
100% Critical Pin Feature and Post-Treatment Inspection
5-axis CNC machining aerospace components are inspected for diameter, length, roundness, straightness, shoulder, groove, cross-hole position, thread, chamfer, end radius, surface finish, and hardness according to the drawing. Heat-treated, ground, plated, black-oxide, nitrided, or passivated pins receive post-treatment inspection when the process changes fit or performance. Burrs, sharp edges, coating damage, and retaining-feature condition are checked before shipment.
- 100% critical-dimension inspection for qualified 5-axis CNC machining aerospace components programmes
- Post-heat-treatment, post-grinding, and post-coating diameter and surface review when specified
- Roundness, straightness, hardness, groove, cross-hole, thread, chamfer, and burr inspection included
Documentation — Dimensional Report, Hardness Cert, PPAP, FAIR, and Traceability
CNCPioneer supports dimensional reports, material certificates, hardness and heat-treatment records, grinding or surface-finish results, coating or passivation certificates, thread gauge records, RoHS/REACH documentation where applicable, Certificates of Conformance, PPAP Level 3 for IATF 16949 automotive programmes, and AS9102 FAIR for AS9100D aerospace programmes. Lot traceability is maintained through material batch, machining batch, treatment batch, inspection record, and packaging label.
- Dimensional report, diameter/roundness record, hardness report, treatment certificate, and COC available
- PPAP Level 3 for automotive, EV, tooling, and high-volume 5-axis CNC machining aerospace components programmes
- AS9102 FAIR available for aerospace, UAV, instrument, and precision equipment programmes
5-Axis Aerospace Components FAQ
Common questions from OEM buyers, engineers, and sourcing teams about 5-axis CNC machining aerospace components, dowel and shoulder pin design, pin and hole fit, materials, hardness, grinding, heat treatment, surface finish, prototype lead time, and production quotes.
The fastest quote comes from a 2D drawing or STEP file with material, hardness or heat-treatment condition, pin diameter, length, fit class, mating-hole tolerance, shoulder or head dimensions, groove or cross-hole details, thread, chamfer, surface finish, coating, quantity, and packaging notes. If no drawing is available, CNCPioneer can quote from the mating hole, load, retention method, movement, corrosion environment, and annual usage.
Fit depends on whether the pin is intended to locate, press in, slide, pivot, rotate, or be removed for service. Press fits need controlled interference and chamfers; slip or pivot fits need running clearance based on load, speed, lubrication, temperature, and surface finish; dowel fits need repeatable location and hole alignment. CNCPioneer reviews pin diameter, roundness, hole tolerance, material, hardness, and assembly force in DFM rather than applying one generic tolerance.
Grinding is considered when the pin needs tighter diameter, roundness, straightness, or surface finish than turning alone can provide. Heat treatment is considered when the pin must resist shear, bending, impact, indentation, or wear. CNCPioneer reviews material, hardness, core strength, case depth, distortion, grinding allowance, coating thickness, and final fit before defining the sequence. Stainless, alloy steel, tool steel, brass, bronze, aluminium, and titanium all require different process decisions.
Simple turned or milled aerospace components typically take 3–6 business days after drawing confirmation and material availability. Five-axis contoured, thin-wall, pocketed, heat-treated, ground, plated, or documentation-heavy components commonly take 6–12 business days. Volume lead time depends on material, machining cycle, heat-treatment or grinding schedule, inspection scope, packaging, and quantity. CNCPioneer provides 24-hour quotes and 48-hour DFM for most 5-axis CNC machining aerospace component inquiries.
Get a Quote for 5-Axis Aerospace Components
Upload your 5-axis CNC machining aerospace components drawings, 3D CAD models (STEP, IGES), mating-hole specification, pin and hole fit, material and hardness requirement, heat-treatment notes, surface finish, coating, quantity, or annual usage and receive a competitive quote within 24 hours plus 5-axis CNC machining aerospace components DFM feedback within 48 hours.
