CNC 5-Axis Machining
for Brass Parts
CNCPioneer provides 5-axis CNC machining for brass parts used in electrical contacts, connector components, valve bodies, manifolds, bushings, threaded fittings, cable terminals, sensor housings, pump components, decorative hardware, and complex multi-sided brass components. We machine C36000, C54400, C46400, C48500, C93200, lead-free brass, bronze, and customer-specified copper alloys with 5-axis machining, mill-turn machining, CNC turning, drilling, tapping, reaming, deburring, polishing, plating, laser marking, and dimensional inspection. Qualified features can reach ±0.005mm, with 24-hour quotes and 48-hour DFM feedback for drawings and STEP files.
What Is 5-Axis CNC Machining
for Brass Parts?
5-axis CNC machining for brass parts is used for components that require multi-sided access, angled holes, cross ports, threaded features, deep pockets, sealing faces, thin walls, conductive interfaces, precision bores, and tight datum relationships. Typical parts include brass connector bodies, electrical contacts, terminals, valve bodies, manifolds, bushings, threaded adapters, sensor housings, pump components, and custom multi-face brass parts.
Compared with standard 3-axis milling, 5-axis machining reduces setups and helps maintain accuracy between related features. For brass parts, process planning must also manage burr control, chip evacuation, thread quality, bore finish, contact resistance, sealing surfaces, plating allowance, anti-tarnish protection, and dimensional stability.
-
DFM for conductive, threaded, and fluid-interface brass parts We review contact geometry, bore tolerance, thread class, sealing faces, port position, flatness, wall thickness, burr risk, plating allowance, mating material, and service environment before machining.
-
5-axis machining for complex brass geometries Five-axis tool access supports angled faces, cross holes, ports, pockets, curved surfaces, threaded bosses, sealing lands, undercuts, and multi-sided brass components in fewer setups.
-
Brass alloy selection for conductivity, machinability, and wear C36000, C54400, C46400, C48500, C93200, lead-free brass, bronze, and customer-specified copper alloys are selected according to conductivity, strength, wear, corrosion, machinability, plating response, and assembly needs.
-
24-hour 5-axis CNC machining for brass parts quotes Upload a drawing or STEP file with brass grade, tolerance, thread notes, plating requirements, quantity, and application details. CNCPioneer returns pricing within 24 hours and DFM feedback within 48.
Why CNCPioneer for
5-Axis CNC Machining for Brass Parts?
CNCPioneer combines 5-axis machining, mill-turn machining, CNC turning, reaming, brass alloy DFM, conductive-interface control, thread and bore inspection, polishing, plating support, anti-tarnish packaging, and traceable documentation for complex brass components.
Conductive Feature and Contact Geometry Control
Brass components often depend on contact area, contact pressure, plating thickness, burr-free edges, and stable mating geometry. CNCPioneer reviews conductive faces, terminal features, connector pockets, spring-contact areas, plating allowance, and inspection points before machining and finishing.
5-Axis Accuracy for Ports, Pockets, and Multi-Sided Features
Valve bodies, manifolds, connector bodies, and pump components may include angled ports, cross holes, sealing lands, deep pockets, threaded bosses, and features on several sides. Five-axis machining reduces repeated setups and helps maintain positional accuracy across related interfaces.
C36000, C54400, C46400, C93200, and Lead-Free Brass Support
C36000 supports efficient machining and threaded fittings, C54400 supports spring-contact and wear applications, C46400 supports corrosion-sensitive hardware, C93200 supports bushings and bearing surfaces, and lead-free brass supports regulated applications when specified.
Thread, Bore, and Sealing Surface Control
Brass fittings, bushings, valves, and adapters require stable thread class, bore size, concentricity, sealing face flatness, chamfers, and low-burr transitions. CNCPioneer reviews reaming, tapping, thread gauging, deburring, surface finish, and post-plating fit before production.
Polishing, Plating, and Anti-Tarnish Protection
Brass parts may require polishing, nickel plating, tin plating, silver plating, gold plating, chrome plating, bead blasting, brushing, or anti-tarnish protection. We review coating thickness, masking, contact resistance, solderability, corrosion exposure, appearance, and post-finish inspection.
OEM Documentation and Traceability
Available documentation includes material certificates, dimensional reports, thread-gauge records, surface-finish records, plating certificates, RoHS/REACH documentation, COC, PPAP Level 3 when required, and lot traceability from material to machining, finishing, inspection, and packaging.
5-Axis CNC Machining for Brass Parts
Product Portfolio
We machine brass components that require conductive performance, complex geometry, threaded features, sealing surfaces, controlled bores, clean edges, plating compatibility, and reliable production repeatability.
Brass Electrical Contacts Connector
5-axis machined brass contacts, terminals, connector shells, cable lugs, sockets, conductive blocks, and mounting components for electrical and electronic assemblies. CNCPioneer controls contact geometry, slot position, wall thickness, hole location, burr-free edges, surface finish, plating allowance, and assembly fit.

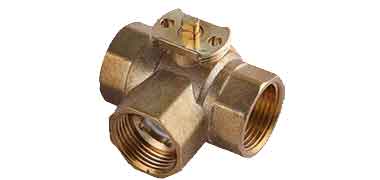

Brass Valve Bodies
Brass valve bodies with angled ports, cross holes, internal passages, sealing faces, threaded features, and multiple datum interfaces. We review port alignment, leak-sensitive surfaces, thread quality, burr removal, internal cleanliness, and corrosion protection.

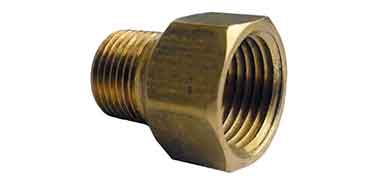

Brass Threaded Adapters
Brass threaded adapters parts requiring controlled bore size, thread fit, shoulder geometry, lubrication behaviour, and low-burr edges. Options include flanges, grooves, flats, knurls, cross holes, and custom profiles.

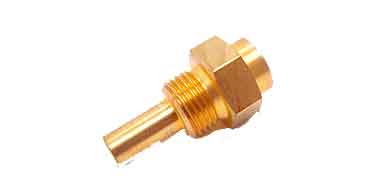

Brass Sensor Housings
Brass sensor housings, protective covers, cable-interface parts, mounting bodies, and thin-wall components with internal pockets, cable passages, sealing lands, threaded areas, and protective edges. CNCPioneer controls wall thickness, pocket depth, flatness, edge condition, plating allowance, and assembly clearance.

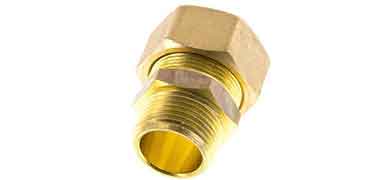

Brass Threaded Interfaces
Brass threaded fittings and complex fluid parts with controlled ports, sealing faces, deep pockets, threads, and mounting datums. CNCPioneer supports metric, UNC, UNF, BSP, NPT, and custom threads with thread class, runout, flatness, wall thickness, and mating fit reviewed during DFM.

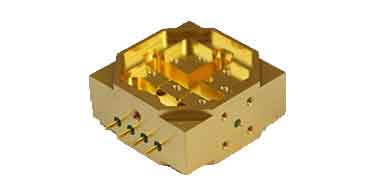

Complex Multi-Sided Brass Components
Complex brass components with angled holes, cross ports, deep pockets, ribs, bosses, sealing faces, threaded inserts, undercuts, conductive surfaces, and multiple datum interfaces. CNCPioneer manufactures these parts from drawings, STEP files, tolerance notes, plating requirements, and assembly needs.
Brass Parts Machining Applications
Our 5-axis CNC machining for brass parts supports industries that need conductivity, corrosion resistance, precise threads, sealing surfaces, low-friction interfaces, clean edges, and repeatable precision.
Electricals
Brass contacts, terminals, sockets, connector shells, cable lugs, grounding parts, conductive blocks, and electronic hardware. Requirements can include conductivity, contact geometry, tin or silver plating, low burrs, solderability, mating stability, and clean packaging.
Fluid Control
Brass valve bodies, manifolds, fittings, pump components, threaded adapters, sealing parts, and pressure-related hardware. CNCPioneer reviews port alignment, sealing faces, thread quality, leak-sensitive surfaces, burr removal, and internal cleanliness.
Automotive
Brass terminals, connector parts, sensor bodies, threaded fittings, bushings, grounding components, and fluid-interface parts for automotive and EV programmes. IATF 16949 support can include PPAP Level 3, Cpk studies, dimensional records, plating certificates, and traceable packaging.
Industrial Machinery
Brass bushings, spacers, wear parts, threaded adapters, lubrication fittings, sensor housings, machine hardware, and corrosion-resistant replacement components. We review wear, fit, lubrication, thread quality, surface finish, and service packaging.
Medical
Brass fittings, housings, threaded components, sensor interfaces, instrument hardware, and compact precision parts for laboratory and measurement equipment. Requirements may include clean surfaces, low burrs, controlled fit, plating, marking, and compartment packaging.
Semiconductor
Polished, brushed, plated, or anti-tarnish brass components for decorative hardware, precision fittings, visible mechanical parts, and premium assemblies. CNCPioneer reviews cosmetic zones, edge condition, colour consistency, plating thickness, marking, and protective packaging.
Brass and Copper Alloy Grades
Materials for 5-Axis CNC Machining
of Brass Parts
Brass alloy selection affects machinability, conductivity, wear resistance, corrosion resistance, plating response, solderability, lead-free compliance, and cost.
C36000 Brass
C36000 is widely used for threaded fittings, adapters, bushings, connector parts, terminals, and precision machined brass components. It offers excellent machinability and supports efficient production of complex turned, milled, and threaded features.
C54400 Phosphor Bronze
C54400 is selected for spring contacts, electrical parts, wear components, and precision interfaces requiring better fatigue and wear resistance. CNCPioneer reviews contact force, plating, burr control, and feature stability before production.
C46400 Naval Brass
C46400 supports marine, corrosion-sensitive, and industrial hardware where strength and corrosion resistance are important. It can be used for fittings, valve components, bushings, pump parts, and exposed brass hardware.
C93200 Bearing Bronze
C93200 supports bushings, sleeves, bearing surfaces, wear parts, and low-friction interfaces. We review bore size, concentricity, lubrication, surface finish, wear allowance, and inspection requirements before machining.
Lead-Free Brass
Lead-free brass is selected when customer standards, regulatory requirements, potable-water applications, or product compliance needs restrict lead content. CNCPioneer reviews machinability, burr behaviour, thread quality, plating response, and documentation needs.
Custom Brass, Bronze, and Copper Alloys
Customer-specified copper alloys can be machined for electrical, fluid-control, instrumentation, decorative, and industrial applications. We review conductivity, hardness, wear, corrosion exposure, plating compatibility, and final inspection plan.
Brass Parts Finishing Options
Finishing is selected according to conductivity, solderability, corrosion resistance, wear resistance, appearance, sealing behaviour, anti-tarnish protection, and inspection requirements.
Nickel Plating
Nickel plating improves corrosion resistance, wear resistance, appearance, and surface durability for brass connector bodies, fittings, housings, and hardware. CNCPioneer reviews plating thickness, masking, fit allowance, contact areas, and post-plating inspection.
Tin Plating
Tin plating supports solderability and electrical contact performance for terminals, contacts, connector parts, and conductive brass components. We review contact resistance, mating surfaces, soldering requirements, plating thickness, and packaging protection.
Silver and Gold Plating
Silver and gold plating can be selected for low contact resistance, stable conductivity, corrosion resistance, or high-reliability electrical interfaces. CNCPioneer reviews contact geometry, plating stack, wear exposure, masking, inspection, and documentation needs.
Polishing and Brushing
Polishing and brushing support decorative appearance, smooth sealing surfaces, controlled roughness, and cleanable surfaces. CNCPioneer reviews cosmetic zones, edge condition, directional grain, surface targets, cleaning, and protective packaging.
Deburring and Edge Control
Brass components often require careful burr removal around cross holes, ports, threads, sealing faces, pockets, and small internal features. We review functional edges, sealing edges, cosmetic edges, contact surfaces, and cleaning requirements before shipment.
Laser Marking and Anti-Tarnish Packaging
Laser marking supports part numbers, lot codes, orientation marks, and traceability. Finished brass components can be packed with VCI bags, anti-tarnish paper, trays, compartment boxes, or custom receiving packs to protect plated, polished, and conductive surfaces.
Quality Control for
5-Axis CNC Machining for Brass Parts
Our inspection process focuses on brass alloy identity, multi-axis feature accuracy, conductive and sealing interfaces, thread and bore quality, plating results, and documentation traceability.
Material and Alloy Review
Incoming brass and copper alloy materials are checked against certificates and drawing requirements. Alloy grade, hardness condition, lead-free requirements, conductivity needs, plating requirements, and finish expectations can be reviewed before machining.
- C36000, C54400, C46400, C48500, C93200, lead-free brass, bronze, and customer-specified alloys
- Material certificate review and lot traceability
- Plating, polishing, deburring, anti-tarnish, and packaging needs checked before release
5-Axis Machining and Interface Control
5-axis machining, mill-turn, CNC turning, drilling, tapping, reaming, and finishing routes are selected according to feature orientation, wall thickness, tolerance, finish, and production volume. Critical datums, holes, bores, ports, pockets, sealing faces, threads, and contact areas are controlled according to the drawing.
- Multi-sided machining for angled ports, pockets, cross holes, threaded bosses, and sealing faces
- Datum strategy, workholding, and burr-control plan reviewed before machining
- Critical features can reach ±0.005mm on qualified programmes
Thread, Bore, Contact, and Post-Finish Inspection
Machined, plated, polished, brushed, marked, or anti-tarnish-protected brass components are inspected for functional and cosmetic requirements. Burrs, edge condition, contact faces, sealing faces, threaded areas, bore size, flatness, wall thickness, and critical interfaces are checked before shipment.
- Bore size, thread fit, hole position, flatness, profile, surface finish, and edge inspection
- Post-plating, post-polishing, and post-brushing review when specified
- Cleaning and packaging checked against receiving requirements
Documentation and Traceability
Available documentation includes dimensional reports, material certificates, surface-finish records, plating certificates, thread-gauge records, RoHS/REACH documentation, COC, PPAP Level 3 when required, and lot traceability from material to machining, finishing, inspection, and packaging.
- Dimensional reports and critical-feature records available
- Material certificate and plating certificate support
- Lot traceability from material to machining, finishing, inspection, and packaging
5-Axis CNC Machining for Brass Parts FAQ
Common questions from OEM buyers and engineers about brass alloy selection, 5-axis geometry, threads, bores, plating, conductivity, surface finish, lead times, and quotes.
Send a 2D drawing or STEP file with brass grade, tolerance, critical dimensions, datum requirements, thread notes, bore requirements, contact or sealing surfaces, plating or finish notes, quantity, inspection requirements, and packaging needs. If the part is still under development, CNCPioneer can review the application, mating interfaces, conductivity needs, fluid interface, and annual usage for DFM feedback.
Common options include C36000 for efficient machining and threaded parts, C54400 for contact and wear applications, C46400 for corrosion-sensitive hardware, C93200 for bushings and bearing surfaces, and lead-free brass for regulated applications. The best alloy depends on conductivity, wear, corrosion, machinability, plating, solderability, and documentation requirements.
5-axis machining is useful when brass parts have angled ports, cross holes, multiple datum faces, deep pockets, sealing surfaces, undercuts, threaded bosses, or complex connector geometry. It can reduce setups, improve positional accuracy, and improve tool access on complex brass components.
Yes. Brass parts can be nickel plated for corrosion and wear resistance, tin plated for solderability, silver or gold plated for electrical contact performance, or polished and protected for appearance. CNCPioneer reviews plating thickness, masking, thread fit, contact faces, sealing surfaces, edge condition, and post-finish inspection before production.
Simple brass machined components typically take 3–6 business days after drawing confirmation and material availability. Complex 5-axis, thin-wall, deep-pocket, threaded, plated, polished, or documentation-heavy parts commonly take 6–12 business days. Volume lead time depends on material, cycle time, finishing, inspection, packaging, and quantity.
Get a Quote for 5-Axis CNC Machining for Brass Parts
Upload your brass machining drawing, STEP file, alloy grade, tolerance notes, thread or bore requirements, conductive interface, plating notes, finish requirements, quantity, or annual usage. Receive a quote within 24 hours and DFM feedback within 48 hours.
