Humanoid Robot
CNC Machining
CNCPioneer is an IATF 16949 and AS9100D certified humanoid robot CNC machining specialist delivering high-reliability humanoid robot structural and motion components — rotary actuator housings, harmonic drive components, planetary gearbox elements, hip/knee/ankle joint assemblies, torso frame structural members, arm and leg limb segments, dexterous hand mechanism hardware, and sensor mounting structures — with tolerances as tight as ±0.002mm on Swiss CNC platforms and ±0.003mm on MAZAK mill-turn centers, with mass verification ±0.1g on weight-critical components, since 2011.
What Is
Humanoid Robot CNC Machining?

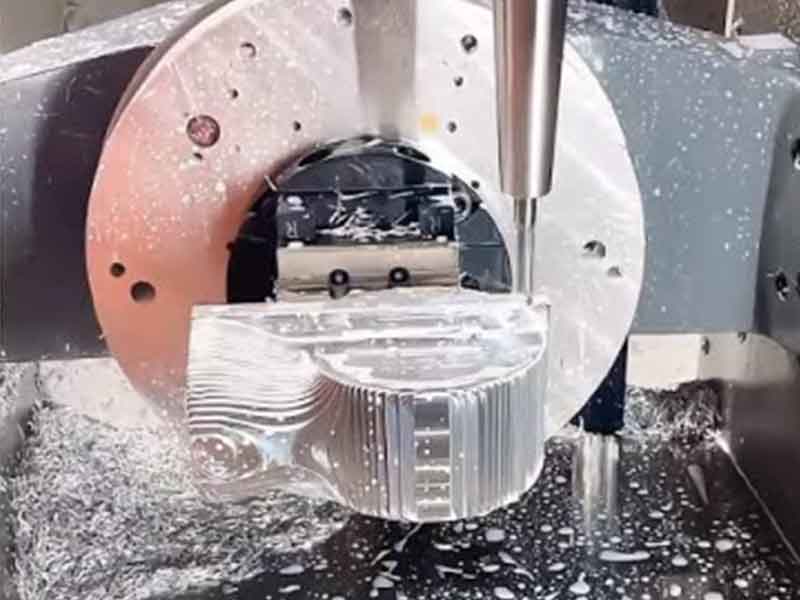

Humanoid robot CNC machining is the precision manufacturing discipline encompassing all turning, milling, drilling, boring, threading, and finishing operations applied to produce the structural, motion, and mechanism components of bipedal humanoid robots — rotary actuator housings, harmonic drive wave generators and flexsplines, planetary gear carriers, joint bearing seats, limb structural segments, torso frame members, dexterous hand mechanism elements, and sensor integration hardware whose dimensional accuracy, mass efficiency, and structural integrity collectively determine whether a humanoid robot achieves the dynamic locomotion stability, manipulation dexterity, payload capacity, and battery endurance its control system design assumes.
Humanoid robot CNC machining is arguably the most demanding precision machining for robotics application category in the modern manufacturing economy — concentrating three challenges into a single product. The precision challenge: 28–60 actuated degrees of freedom, each requiring actuator components at ±0.003mm where accumulated joint errors directly degrade whole-body control accuracy. The mass challenge: every gram in a robot's limbs increases actuator torque requirements, creating a compounding mass spiral — making humanoid robot parts manufacturing a mass-obsessed discipline with components verified to ±0.1g targets. The volume challenge: programs transitioning from research prototypes toward tens of thousands of units — requiring suppliers who carry identical quality from one-off prototype through IATF 16949-grade volume production.
-
Complete humanoid robot component range from one supplier From Ø0.8mm finger joint pivot pins (Swiss CNC ±0.002mm) to 400mm torso frame structural members (MAZAK ±0.003mm), CNCPioneer covers four orders of magnitude in component size within a single humanoid robot parts manufacturing relationship — eliminating multi-supplier qualification burden.
-
Mass-verified lightweight humanoid robot parts manufacturing Every weight-critical humanoid robot component is machined with pocket-optimized geometry and verified on precision balances to ±0.1g against customer mass targets — because limb mass directly determines actuator sizing, battery endurance, and dynamic performance. Mass verification records ship with every weight-critical lot.
-
Prototype-to-volume continuity for scaling programs Humanoid robot programs scaling from tens to thousands of units require precision machining for robotics suppliers who maintain identical machining programs, tooling, and process parameters from prototype through volume — ensuring production parts are dimensionally identical to prototype parts validated in robot testing. IATF 16949 PPAP Level 3 provides the volume manufacturing framework.
-
40–60% China humanoid robot CNC machining cost advantage CNCPioneer's China-based humanoid robot parts manufacturing delivers 40–60% cost reduction versus equivalent precision machining for robotics from US, European, and Japanese suppliers — a decisive economic factor for humanoid robot programs whose commercial viability depends on driving per-robot bill-of-materials cost toward mass-market price targets.
Why CNCPioneer for
Humanoid Robot Parts Manufacturing?
Among humanoid robot CNC machining suppliers globally, CNCPioneer offers the combination of miniature-to-structural component range, mass-verified lightweight machining discipline, actuator component precision, and prototype-to-volume manufacturing continuity that establishes our factory as the preferred precision machining for robotics partner for humanoid robot developers and embodied AI hardware programs.
Complete Humanoid Robot Component Range
A humanoid robot's machined components span four orders of magnitude — from Ø0.8mm finger joint pivot pins to 400mm torso frame structural members. CNCPioneer's combined Swiss CNC (Ø0.5–32mm, ±0.002mm) and MAZAK mill-turn (up to 600×400×300mm, ±0.003mm) platforms cover this complete range within a single humanoid robot parts manufacturing relationship, eliminating multi-supplier qualification and tolerance coordination burden.
Actuator Component Precision as Core Competency
The rotary actuator is the defining component of humanoid robot performance, and its precision-machined elements represent the most demanding humanoid robot CNC machining specifications: harmonic drive wave generator ellipse geometry (±0.003mm), flexspline wall concentricity (±0.003mm on 0.3–0.6mm walls), cross roller bearing seats (±0.002mm), and planet carrier pin bores (±0.003mm position) — all on CNCPioneer's actuator component machining platforms.
Mass-Verified Lightweight Manufacturing
Every weight-critical humanoid robot component is machined with pocket-optimized geometry and verified on precision balances to ±0.1g against customer mass targets — because distal limb mass directly determines actuator sizing, battery endurance, and dynamic locomotion performance. Mass verification records covering hand/wrist components to ±0.1g and limb segments to ±0.5g ship with every weight-critical lot.
Prototype-to-Volume Manufacturing Continuity
Humanoid robot programs scaling from tens to thousands of units require machining suppliers who maintain identical machining programs, tooling, and process parameters from prototype through volume — ensuring production parts are dimensionally identical to the prototype parts validated in robot testing. CNCPioneer's IATF 16949 infrastructure provides PPAP Level 3, Cpk ≥1.67, and 100% CCD sorting as programs scale.
Multi-Material Precision Machining for Robotics
Humanoid robot parts manufacturing spans aluminum 7075-T6 limb structures, magnesium AZ91D distal shells, titanium Ti-6Al-4V high-load joint forks, 17-4PH H900 gear and shaft elements, GCr15 bearing components, and PEEK isolation parts — all processed with material-specific protocols including magnesium fire-safety procedures and titanium surface finish discipline at CNCPioneer's humanoid robot CNC machining factory.
40–60% China Humanoid Robot Cost Advantage
CNCPioneer's China-based humanoid robot parts manufacturing delivers 40–60% cost reduction versus equivalent precision machining for robotics from US, European, and Japanese suppliers — a decisive economic factor for humanoid robot programs whose commercial viability depends on driving per-robot bill-of-materials cost toward mass-market price targets. DFM review, mass verification, and PPAP/FAIR documentation are included in program pricing.
Humanoid Robot Components
We Manufacture
CNCPioneer's humanoid robot CNC machining programs cover the complete kinematic architecture of bipedal humanoid robots — from the actuator components that generate joint motion through the structural members that carry load, to the miniature hand components that enable dexterous manipulation — with Swiss CNC and MAZAK mill-turn capability across all materials and tolerances.
Rotary Actuator & Harmonic Drive Components
Wave generator elliptical cams (±0.003mm form accuracy), wave generator bearing seats (±0.002mm), circular spline body elements (internal tooth datum bore ±0.003mm), planetary carrier planet pin bore arrays (±0.003mm position), sun gear shaft journals (±0.002mm), frameless motor stator seats (±0.005mm), rotor hubs (magnet carrier OD ±0.005mm), cross roller bearing seats (±0.002mm), and actuator housing bodies with paired bearing seats held to 0.005mm coaxiality in single-setup MAZAK mill-turn programs.
Hip, Knee & Ankle Locomotion Components
Hip fork structural bodies (bearing bore pair coaxiality 0.005mm across fork arms), hip cross-members with three actuator interfaces in controlled angular relationship ±0.02°, knee actuator output links (four-bar linkage pivot bores ±0.005mm center distance), ankle differential mechanism components (bevel or linkage differential, pivot bores ±0.003mm), shin and thigh structural tubes with machined end fittings (bonded/bolted interface geometry ±0.010mm), and foot sole frames (force/torque sensor mounting flatness 0.010mm).
Shoulder, Arm & Wrist Components
Three-axis shoulder cluster structural members (actuator interface stack-up ±0.010mm cumulative across yaw-pitch-roll chain), shoulder yoke bearing bores (coaxiality 0.005mm), elbow actuator links (±0.005mm pivot geometry), forearm rotation bearing housings (cross roller seat ±0.003mm), forearm structural shells (thin-wall 1.2–2.0mm in 7075-T6 or AZ91D at ±0.050mm wall uniformity), and 2-DOF/3-DOF wrist differential components including bevel gear blanks and differential cross shafts (Swiss CNC ±0.002mm).
Dexterous Hand Mechanism Components
Finger phalanx bodies (8–30mm links in 7075-T6 or Ti-6Al-4V, ±0.010mm), finger joint pivot pins (Ø0.8–4.0mm Swiss CNC at ±0.002mm with Ra 0.1μm), tendon pulleys and idlers (Ø2–8mm groove-profiled pulleys ±0.005mm groove geometry), tendon routing guides (Ra 0.2μm polished channels), palm structural plates (15–25 precision finger mounting interfaces ±0.010mm position), MCP/PIP/DIP joint housings (miniature bearing seats Ø3–8mm at ±0.002mm), and fingertip tactile sensor pockets (±0.030mm).
Torso Frame & Battery Enclosure
Central frame structural spine and pelvis members (200–450mm, 7075-T6) with datum networks holding hip, shoulder, and spine actuator interfaces in ±0.02mm/±0.02° global relationship — the structural reference from which all limb kinematics derive. Battery enclosure trays and retention frames (±0.1mm with crash-load fastener bosses), and compute module thermal interface pedestals (flatness 0.010mm for onboard AI compute cooling contact).
Head, Sensor Mount & Encoder Integration
Camera and depth sensor mounts (optical axis alignment features ±0.010mm, ±0.05°), neck actuator components (2–3 DOF per actuator component specifications), IMU mounting platforms (flatness 0.005mm, orientation reference features ±0.02° — IMU mounting accuracy directly enters the robot's state estimation quality), absolute encoder disc hubs (±0.003mm concentricity for joint position sensing accuracy), and encoder stator mounts (±0.005mm position).
6 Humanoid Robot Application Scenarios
CNCPioneer delivers precision CNC-machined components that power humanoid robots across the most demanding real-world deployment environments — from factory floors to operating rooms.
Industrial Manufacturing & Smart Factories
Precision-machined joint housings, actuator mounts, and end-effector adapters for humanoid robots deployed on assembly lines, welding stations, and quality inspection posts. CNC components withstand 24/7 operational cycles, repetitive loading, and tight positional tolerances required for collaborative robot- human workflows in automotive, electronics, and heavy machinery sectors.
Logistics & Warehouse Automation
Lightweight yet high-strength CNC-machined limb segments, gripper mechanisms, and sensor integration brackets for humanoid robots performing picking, packing, palletizing, and inventory sorting. Components optimized for rapid acceleration/deceleration cycles, impact resistance, and minimal deflection under dynamic loads in high-throughput distribution centers.
Healthcare & Medical Assistance
Biocompatible-grade CNC-machined structural frames, precision joint assemblies, and sterilizable hand mechanisms for humanoid robots assisting in patient care, rehabilitation therapy, surgical support, and elderly companion services. Materials and surface finishes meet medical-device cleanliness and corrosion-resistance standards.
Retail & Hospitality Services
Aesthetic and functional CNC-machined exterior shells, arm structures, and interactive gesture components for humanoid robots serving as concierges, guides, and customer-service agents in hotels, airports, shopping malls, and exhibition halls. Components balance visual appeal with structural rigidity and long-term wear resistance in public-facing environments.
Hazardous & Extreme Environments
High-performance alloy CNC-machined protective housings, sealed joint assemblies, and thermal-management brackets for humanoid robots operating in nuclear facilities, chemical plants, fire rescue, space exploration, and deep-sea missions. Components engineered for radiation shielding, chemical resistance, extreme temperature stability, and pressure integrity.
Research & Education
Modular, reconfigurable CNC-machined platform frames, standardized joint modules, and rapid-swap end-effector interfaces for humanoid robots used in AI algorithm validation, human-robot interaction studies, STEM education, and robotics competitions. Components designed for easy disassembly, iterative modification, and compatibility with open-source control architectures.
Humanoid Robot CNC Machining
Process & Capabilities
CNCPioneer's humanoid robot parts manufacturing process takes component requirements from initial specification through IATF 16949-qualified volume production in four structured phases — 24-hour DFM review, prototype machining (Week 1–2), first article and mass verification (Week 2–3), production qualification with PPAP Level 3 (Week 3–6) — with manufacturing program continuity from first prototype through volume supply.
Humanoid Robot DFM Review (24 Hours)
Actuator component tolerance feasibility — harmonic drive wave generator, flexspline support, bearing seat, and encoder mount geometry reviewed against Swiss CNC and MAZAK mill-turn capability · Thin-wall machinability — minimum wall and section thickness for structural and hand components · Mass target achievability — pocket geometry analysis vs. customer mass budget · Fatigue-critical fillet and finish requirements · Material selection per component load spectrum and mass budget · Manufacturing sequence for geometric relationship preservation.
Prototype Humanoid Robot Machining (Week 1–2)
78+ Swiss CNC lathes (finger pivot pins Ø0.8–4mm at ±0.002mm, tendon pulley shafts, encoder shafts, bearing seats) and 66+ MAZAK mill-turn centers (actuator housings, hip forks, circular splines, torso frame members at ±0.003mm in single-setup programs) · In-process gauging of bearing seats, actuator bore relationships, and thin-wall geometry · Post-machining mass verification on precision balance · Surface treatment (hard anodize MIL-A-8625, electroless nickel, DLC, passivation).
First Article, Mass Verification & FAIR (Week 2–3)
Complete Mitutoyo CMM dimensional verification (±0.001mm) of all bearing seats, actuator interfaces, structural positions, and kinematic features · Laser micrometer verification on Swiss CNC pins and shafts · Profilometer surface finish verification on bearing and pivot contact surfaces · Precision balance mass verification (±0.1g on hand/wrist; ±0.5g on limb segments) · Optical comparator fillet radius verification on fatigue-critical structures · FAIR per AS9102 for defense/research programs · PPAP Level 3 package for volume programs.
Production & Statistical Control (Week 3–6)
Cpk ≥ 1.67 on all IATF 16949 special characteristics — bearing seats, actuator interfaces, and encoder mount positions · 100% CCD automatic sorting on high-volume actuator component programs · Adaptive offset correction maintaining dimensional compliance across production runs · Matched mass verification for left/right limb pair symmetry (±0.5g) — asymmetric limb mass degrades gait symmetry and wastes control effort · Blanket order programs with monthly releases and dedicated capacity for humanoid robot OEM supply chains.
Humanoid Robot CNC Machining Materials
Aluminum 7075-T6 / 6061-T6 · Magnesium AZ91D (lightest structural; 35% below aluminum) · Titanium Ti-6Al-4V (highest-load fatigue-critical joints) · Stainless 17-4PH H900 / 42CrMo4 (gear blanks, output shafts, planet carriers) · Bearing steel GCr15 HRC 62–65 (bearing races, cam elements, wear surfaces) · PEEK Engineering Grade (tendon guides, electrical isolation, low-friction elements) · Copper C17200 BeCu (slip ring and contact components) — all materials XRF-verified with full mill certificate traceability.
IATF 16949 / AS9100D Documentation
PPAP Level 3 for volume humanoid robot parts manufacturing programs · FAIR per AS9102 for research and defense humanoid programs · CMM dimensional report (all features) · Laser micrometer verification on pins and shafts · Mass verification records (±0.1g or ±0.5g) · Material certifications with heat lot traceability · Surface treatment certifications · Certificate of Conformance · All quality records retained 20 years for IATF 16949 compliance.
Materials for
Humanoid Robot CNC Machining
Humanoid robot parts manufacturing spans the widest material range of any single-product precision machining discipline — from the lightest structural alloys (magnesium AZ91D, 1.81 g/cm³) through premium high-strength alloys (titanium Ti-6Al-4V) and gear-grade steels (GCr15, 17-4PH H900) to engineering polymers (PEEK) — each selected against mass, strength, bearing performance, and cost requirements of its specific robot subsystem.
Aluminum 7075-T6
503 MPa yield · 2.80 g/cm³ · Best widely-machinable strength-to-weight ratio in the humanoid robot material toolkit. Default choice for limb structural segments, actuator housings, hip and knee joint forks, torso frame members, and palm structural plates — 60% of humanoid robot CNC machining programs. Accepts Type III hard anodize (HV400+) for wear surfaces at joint structural contacts and deployment-force-bearing features.
Aluminum 6061-T6
276 MPa yield · 2.70 g/cm³ · Excellent machinability and anodizability at lower cost than 7075-T6. Specified for secondary humanoid robot structural brackets, covers, non-structural housings, and elements where form or assembly clearance is primary and structural optimization is secondary. Type II anodize (standard) or Type III (black, camera-adjacent to suppress reflections).
Magnesium AZ91D
1.81 g/cm³ · 35% lighter than aluminum at comparable structural stiffness. Specified for distal humanoid robot components where mass reduction has maximum dynamic value — forearm shells, hand structures, distal limb covers, and mass-critical actuator housings where limb inertia reduction enables smaller proximal actuators. Requires electroless nickel or chromate conversion for corrosion protection; fire-safety machining protocols at CNCPioneer.
Titanium Ti-6Al-4V
880 MPa yield · 4.43 g/cm³ · Highest specific strength and fatigue resistance in the humanoid robot material set. Reserved for highest-load fatigue-critical humanoid robot elements: hip and knee joint forks in high-payload robots, finger skeleton elements in premium dexterous hands, and actuator output flanges at maximum torque joints where titanium's specific strength justifies 3–5× aluminum machining cost. Shot peening coordination available.
Steel 17-4PH H900
1,310 MPa yield · 7.75 g/cm³ · High-strength stainless steel for humanoid robot gear blanks, output shafts, and high-stress output flanges requiring maximum yield strength in compact cross-sections. H900 condition (precipitation hardened) provides optimal balance of strength, toughness, and corrosion resistance for robot joint hardware in indoor operating environments. Passivation per ASTM A967.
Steel 42CrMo4
950 MPa yield (HT) · 7.85 g/cm³ · Tough, through-hardenable alloy steel for humanoid robot planet carriers, high-torque output shafts, and structural pins in high-load joint mechanisms. 42CrMo4 combines good toughness, moderate fatigue resistance, and lower cost than 17-4PH H900 for elements where stainless corrosion resistance is secondary to cost-per-torque efficiency in robot actuator design.
Bearing Steel GCr15
HRC 62–65 (through hardened) · 7.80 g/cm³ · Standard bearing steel for integrated bearing race elements, wave generator cam surfaces, and wear-critical humanoid robot mechanism components. GCr15 (equivalent to AISI 52100) through hardening and superfinishing achieves Ra 0.05–0.1μm bearing contact surface finish for minimum rolling contact fatigue and maximum bearing life across the 10⁷–10⁸ load cycles of humanoid robot service.
Tool Steel D2 / H13
HRC 58–62 (D2 air-hardened) · For humanoid robot actuator cam elements and locking mechanism components requiring case hardness with dimensional stability. D2 for wear-critical cam profiles and locking pawls; H13 for hot-work tool steel applications in robot end-of-arm tooling and gripper mechanism wear surfaces. Precision grinding after heat treatment to ±0.003mm on critical profiles.
PEEK Engineering Grade
1.32 g/cm³ · Excellent electrical insulation · Low friction coefficient · Low density. Used in humanoid robot hand mechanisms for tendon routing guides (Ra 0.2μm polished channels minimizing tendon friction and wear), isolation spacers between electrically-active and structural elements, and slide elements in finger joint mechanisms where PEEK's combination of light weight, self-lubrication, and machinability enables parts not achievable in metal at equivalent cost.
Copper C17200 BeCu
8.25 g/cm³ · Highest spring strength among copper alloys · Good electrical conductivity · Beryllium copper C17200 for humanoid robot slip ring contact elements, conductive spring contacts in electrical pass-through joint hardware, and retention spring elements in actuator mechanisms requiring combined conductive and spring function that neither steel nor standard copper alloys can match simultaneously at miniature scale.
Surface Treatments for
Humanoid Robot Components
Humanoid robot component surface treatment selection is governed by wear resistance at joint contact interfaces, friction coefficient at tendon-adjacent surfaces, corrosion protection for magnesium components, cosmetic finish for exposed shell elements, and electrical isolation or conductivity as required by robot electrical architecture. Surface treatments are coordinated as part of CNCPioneer's complete humanoid robot parts manufacturing service.
Type III Hard Anodize — MIL-A-8625
Primary wear-resistance treatment for aluminum 7075-T6 and 6061-T6 humanoid robot joint components and tendon-adjacent structures. HV 400+ surface hardness at 15–25μm typical thickness provides 10⁷+ cycle wear life at structural contact interfaces. Black hard anodize standard for camera-adjacent structural elements suppressing optical reflections in robot vision systems. Type II anodize for standard corrosion and cosmetic protection on aluminum structural shells and covers where thinner coating minimizes dimensional impact on precision bearing interface features.
Electroless Nickel — MIL-C-26074
Essential corrosion protection for magnesium AZ91D humanoid robot components — forearm shells, hand structures, and mass-critical covers — where magnesium's 35% density advantage over aluminum is only accessible if its corrosion vulnerability is managed. Mid-phosphorus electroless nickel (8–10% P, HV 500+) on magnesium substrates after zincate activation provides uniform coverage on complex geometry including internal pockets and cross-holes inaccessible to line-of-sight plating. Also applied to gear blank elements and bearing housing bores where dimensional stability across temperature is critical.
DLC Coating — Diamond-Like Carbon
Ultra-low-friction (μ 0.05–0.15) surface treatment for humanoid robot pivot pins, cam surfaces, and tendon pulleys in high-cycle hand and wrist mechanisms. DLC coating (2–5μm) on hardened steel and titanium substrates reduces friction-induced tendon wear and mechanism energy loss across 10⁷–10⁸ actuation cycles of dexterous hand service — the most demanding wear environment in the robot. Applied to finger joint pivot pins (Ø0.8–4mm), tendon routing guide channels, cam profile surfaces, and locking sleeve engagement features where standard hard anodize or electroless nickel friction coefficients would cause unacceptable tendon tension losses.
Passivation — ASTM A967
Mandatory surface treatment for all stainless steel humanoid robot components — 17-4PH H900 gear blanks, output shafts, and actuator housings; 42CrMo4 planet carriers; and GCr15 bearing elements. ASTM A967 passivation removes free iron and machining surface contamination from stainless components, enhancing the passive chromium oxide layer for corrosion resistance in the humanoid robot's indoor operating environment where perspiration, cleaning agents, and humidity exposure can initiate pitting corrosion on insufficiently passivated surfaces. Test A (nitric acid) or Test B (citric acid) per customer preference.
Type III Hard Anodize Black — Camera & Sensor Suppression
Black hard anodize MIL-A-8625 Type III for humanoid robot sensor mounting structures, camera brackets, head structural elements, and any aluminum component in the robot's optical system field of view. Black hard anodize surface reflectance <5% eliminates internal reflections in robot vision system that would create false detections or reduce depth perception accuracy in stereo and structured-light 3D perception systems. Thickness 15–25μm standard; surface finish Ra 0.8–1.6μm after anodize maintains dimensional tolerance on precision camera mounting interface features.
Micro-blast + Anodize — Cosmetic Shell Finish
Micro-bead blasting followed by Type II anodize for a uniform matte surface finish on exposed humanoid robot shell and structural cover components — producing the consistent satin appearance used on commercial humanoid robot external surfaces. Micro-blasting Ra 0.8–1.2μm removes machining witness marks and tool-path steps before anodize, delivering cosmetic finish quality compatible with the consumer and professional humanoid robot product visual standard. Color: black, silver, or custom anodize color per customer specification. Dimensional impact: anodize thickness ±5μm, accommodated in component design allowance.
All humanoid robot component surface treatments — Type III hard anodize MIL-A-8625, electroless nickel MIL-C-26074, DLC coating, ASTM A967 passivation, and micro-blast + anodize — are documented with treatment certifications in the shipment documentation package for every humanoid robot parts manufacturing program. Surface treatment selection guidance — including DLC vs. hard anodize for wear surfaces, electroless nickel for magnesium AZ91D components, and black anodize for optical system adjacency — is included in CNCPioneer's 24-hour DFM review at no additional cost.
Quality Assurance for
Humanoid Robot Parts Manufacturing
Humanoid robot CNC machining quality requirements span actuator component precision (bearing seats and gear datums at ±0.002–0.003mm), mass verification discipline (±0.1g on weight-critical components), and structural interface accuracy (±0.010mm for kinematic calibration quality) — with IATF 16949 statistical control for volume programs and AS9100D documentation for research and defense humanoid programs.
DFM & Engineering Review
Actuator component tolerance feasibility, thin-wall machinability, mass target achievability, fatigue-critical fillet and finish requirements, and material selection per load spectrum and mass budget — reviewed within 24 hours of inquiry. Prototype machining programs are written to production-intent standards from the first part, ensuring clean prototype-to-volume transition without requalification discontinuity.
Material Verification
SII XRF composition confirmation on every material lot (7075-T6, Ti-6Al-4V, AZ91D, 17-4PH, GCr15, 42CrMo4). Hardness verification post heat treatment for gear steel and bearing steel components. BeCu hardness verification for spring contact elements. Full mill-certificate-to-shipment lot traceability on all humanoid robot CNC machining programs — material traceability is the foundation of PPAP Level 3 qualification.
First Article & Mass Verification
Mitutoyo CMM (±0.001mm) full dimensional verification of all bearing seats, actuator interfaces, structural positions, kinematic bores, and encoder mounting features. Laser micrometer on Swiss CNC pins and shafts. Profilometer surface finish verification on bearing and pivot contact surfaces. Optical comparator fillet radius verification on fatigue-critical structural members. Precision balance mass verification (±0.1g hand/wrist; ±0.5g limb segments; ±2g torso members). FAIR per AS9102 for defense/research programs.
In-Process Statistical Control
SPC control charts on bearing seats, pin bores, and interface positions with Cpk ≥ 1.33 standard (≥ 1.67 on IATF special characteristics). 100% CCD automatic sorting on high-volume actuator component programs. Adaptive offset correction maintaining dimensional compliance across production runs. Matched mass verification for left/right limb pair symmetry (±0.5g) — asymmetric limb mass degrades gait symmetry and wastes control effort in humanoid robot locomotion.
Mass Verification & Final Inspection
Precision balance mass verification on all weight-critical components against customer mass targets. Full Mitutoyo CMM dimensional report. Surface treatment certification verification. Thread gauge verification. Laser micrometer confirmation on Swiss CNC pins and shafts. Visual inspection for surface defects, sharp internal corners (fatigue initiation risk), and tool-path steps in load-bearing pocket geometry. All weight-critical components individually labeled with part number, lot, and verified mass.
Documentation Package
Certificate of Conformance · CMM dimensional report (all features) · Mass verification records (±0.1g or ±0.5g per subsystem) · Material certifications with heat lot traceability · Surface treatment certifications · Profilometer surface finish reports on bearing and pivot surfaces · PPAP Level 3 package for volume humanoid robot parts manufacturing programs · FAIR per AS9102 for research and defense programs · All quality records retained 20 years.
IATF 16949 Quality System for
Humanoid Robot Parts Manufacturing
CNCPioneer's IATF 16949 and AS9100D dual-certified humanoid robot CNC machining quality system provides the statistical control, PPAP Level 3 documentation, mass verification discipline, and prototype-to-volume manufacturing continuity that humanoid robot OEM supply chains increasingly require as programs transition from research to production.
PPAP Level 3 & FAIR Documentation
PPAP Level 3 documentation package for volume humanoid robot parts manufacturing programs — design records, engineering change documentation, process flow diagrams, PFMEA, control plan, MSA Gage R&R studies, initial process capability studies (Cpk ≥ 1.67 on special characteristics), part submission warrant, and appearance approval. FAIR per AS9102 for research and defense humanoid robot programs. All documentation generated on the same machining programs used in volume production — no requalification discontinuity.
- PPAP Level 3 for volume programs
- FAIR per AS9102 for defense/research
- Cpk ≥ 1.67 on special characteristics
Actuator Component Precision Verification
Mitutoyo CMM (±0.001mm) on bearing seats (±0.002mm target), wave generator ellipse profiles, circular spline bores, planet carrier pin bore arrays, and encoder mounting features. Laser micrometer on Swiss CNC pivot pins and shafts (±0.002mm). Profilometer on bearing and pivot contact surfaces (Ra 0.1μm target). Optical comparator on fatigue-critical fillet radii (±0.05mm). These are the actuator dimensions whose accuracy determines joint-level backlash, friction, and end-effector positioning accuracy across the robot kinematic chain.
- CMM bearing seats ±0.002mm verified
- Laser mic on Swiss CNC pins
- Profilometer Ra 0.1μm bearing surfaces
Mass Verification ±0.1g
Precision balance mass verification on all weight-critical humanoid robot components against customer mass targets — ±0.1g on hand and wrist components; ±0.5g on forearm and shin/thigh structural segments; ±2g on torso frame members. Left/right limb component pairs verified for mass symmetry (±0.5g) — asymmetric limb mass degrades gait symmetry and introduces control asymmetry in bipedal locomotion. Mass verification records documented individually per component and retained in shipment documentation package.
- ±0.1g hand/wrist components
- ±0.5g limb segments, L/R symmetry
- Mass records shipped with every lot
Prototype-to-Volume Continuity
Prototype humanoid robot parts manufacturing programs are written to production-intent standards from the first part — the same NC programs, tooling, and fixturing used for first-off prototypes are retained and scaled through pilot production into IATF 16949-qualified volume programs. Process capability data accumulates from prototype through production without program discontinuity. The ten-thousandth actuator housing is machined by the same programs under tighter statistical control than the first prototype — dimensional identity across the scaling curve is the foundation of CNCPioneer's humanoid robot parts manufacturing model.
- Same programs: prototype → volume
- Capability data continuous across phases
- No requalification for volume transition
Humanoid Robot CNC Machining FAQ
Common questions from humanoid robot OEMs, embodied AI startups, robot actuator manufacturers, legged robot developers, and dexterous manipulation researchers about CNCPioneer's humanoid robot CNC machining capabilities, actuator component precision, mass verification discipline, and prototype-to-volume manufacturing continuity.
Three component categories set the precision ceiling in humanoid robot CNC machining. First, harmonic drive components: the wave generator elliptical cam (±0.003mm form accuracy) and flexspline thin-wall cup (±0.003mm concentricity on 0.3–0.6mm walls) directly govern gear tooth engagement — form error produces transmission torque ripple that appears as joint torque noise the force controller must fight, and wall non-uniformity concentrates cyclic strain that initiates fatigue failure in the flexspline, the life-limiting element of the joint. Second, bearing seats throughout the robot (±0.002–0.003mm): seat diameter and coaxiality errors preload or misalign the cross roller and thin-section bearings at every joint, adding friction that wastes battery energy across 28–60 joints and runout that degrades end-effector accuracy through the kinematic chain. Third, encoder integration features (±0.003–0.005mm): joint position sensing is the foundation of whole-body control, and encoder disc hub concentricity error appears directly as cyclic position measurement error at that joint. Structural interfaces, by contrast, tolerate ±0.010–0.020mm because kinematic calibration can absorb small static geometric offsets — but it cannot absorb the dynamic errors that actuator component imprecision creates.
Through deliberate manufacturing continuity across four phases. Phase 1, prototype humanoid robot parts manufacturing: 5–14 day component delivery with full CMM documentation, supporting rapid design iteration — critically, prototype machining programs are written to production-intent standards rather than one-off shortcuts. Phase 2, pilot production (10–100 robot sets): the same programs and tooling produce pilot quantities while process capability data accumulates, and DFM refinements identified during prototyping are incorporated under engineering change control. Phase 3, production qualification: PPAP Level 3 qualification on the already-proven processes — capability studies (Cpk ≥ 1.67 on special characteristics), MSA Gage R&R, PFMEA, and control plans — without the requalification discontinuity that switching from a prototype shop to a volume supplier would impose. Phase 4, volume humanoid robot parts manufacturing: dedicated capacity, SPC monitoring, 100% CCD sorting on critical actuator components, and monthly blanket releases aligned to robot assembly schedules. The result: the ten-thousandth hip actuator housing is machined by the same programs, on the same platforms, under tighter statistical control than the first prototype.
For limb and torso structures, aluminum 7075-T6 is the default — its 503 MPa yield at 2.80 g/cm³ delivers the best widely-machinable strength-to-weight ratio, and it accepts hard anodize for wear surfaces. Magnesium AZ91D (1.81 g/cm³, 35% lighter than aluminum) is specified for distal components — forearm shells, hand structures, covers — where mass reduction has the highest dynamic value because distal mass dominates limb inertia; AZ91D requires electroless nickel or conversion coating for corrosion protection and carries machining fire-safety protocols that CNCPioneer's magnesium programs implement as standard. Titanium Ti-6Al-4V is reserved for the highest-load fatigue-critical elements — hip and knee joint forks in high-payload robots, and premium hand skeletons — where its fatigue strength and specific strength justify 3–5× aluminum machining cost. For actuator internals: 17-4PH H900 or 42CrMo4 for gear blanks, planet carriers, and output shafts; GCr15 bearing steel for integrated race and cam surfaces at HRC 62–65; and the actuator housing itself in 7075-T6 or AZ91D. PEEK serves tendon guides and electrical isolation elements in hand mechanisms. CNCPioneer's DFM review includes material recommendation per component against the customer's mass budget, load spectrum, and cost targets.
Prototype lead times: aluminum structural and housing components — 5–7 business days; Swiss CNC pins, shafts, and miniature components — 5–7 business days; titanium components — 8–12 business days; magnesium components — 7–10 business days; complete actuator machined component sets (housing, wave generator, circular spline, output flange, carrier) — 10–14 business days; complete single-robot machined part kits (200–500 unique components) — 3–5 weeks coordinated delivery. Surface treatments add 2–4 business days. Production: pilot quantities (10–100 robot sets) — 4–6 weeks; PPAP Level 3 qualification — 6–8 weeks from prototype approval; volume monthly blanket releases — 2–3 weeks per release with dedicated capacity. For humanoid robot OEMs on aggressive scaling timelines, CNCPioneer offers concurrent-phase programs where pilot production proceeds in parallel with PPAP qualification, compressing the prototype-to-volume transition by 4–6 weeks versus sequential phasing.
Get a Quote for Humanoid Robot CNC Machining
Upload your humanoid robot component drawings or CAD files and receive a free DFM review and competitive humanoid robot CNC machining quotation within 24 hours. CNCPioneer's precision machining for robotics engineering team will review your designs for actuator component tolerance feasibility, thin-wall and mass-target achievability, fatigue-critical feature compliance, material and surface treatment selection, and prototype-to-volume manufacturing strategy — and provide complete pricing from single-prototype humanoid robot parts manufacturing through volume production supply.
