Custom Aerospace
Connector Pins

CNCPioneer manufactures AS9100D certified aerospace connector pins for flight-critical avionics and wiring harnesses — from crimp contacts to PCB pins, with gold/silver plating, full FAIR documentation and material traceability.

IATF 16949 & AS9100D quality systems
Material and inspection scope reviewed with your drawing
Prototype and repeat-production enquiries
Finishing and documentation agreed with the order
Custom Aerospace Connector Pins
DFMDrawing & process review
QCAgreed inspection plan

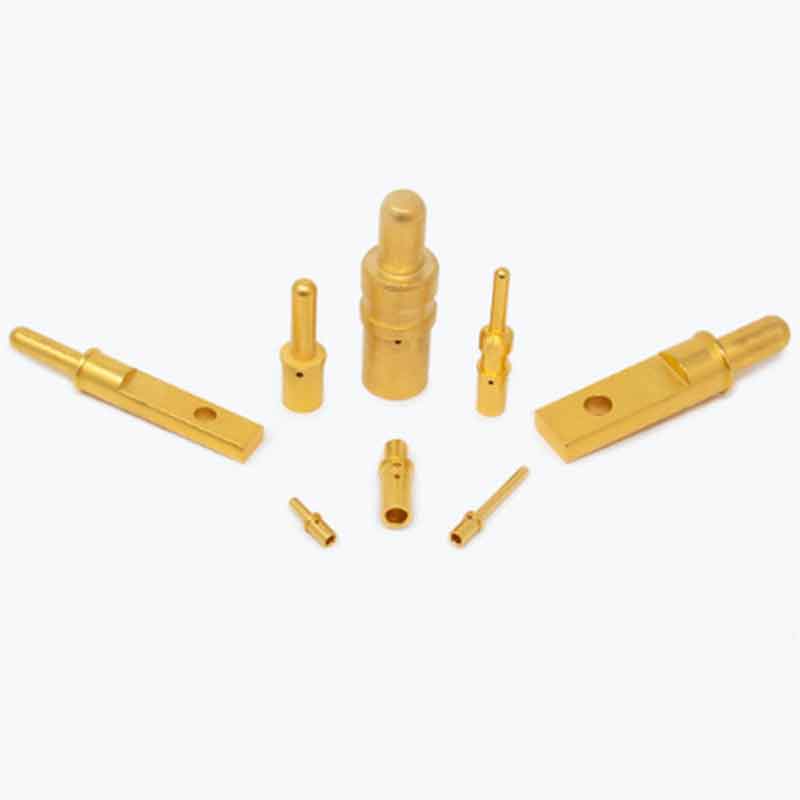

Custom Aerospace Connector Pins: Product Overview

Aerospace connector pins are precision-machined electrical contact components used in aircraft wiring harnesses, avionics systems, and flight control electronics.

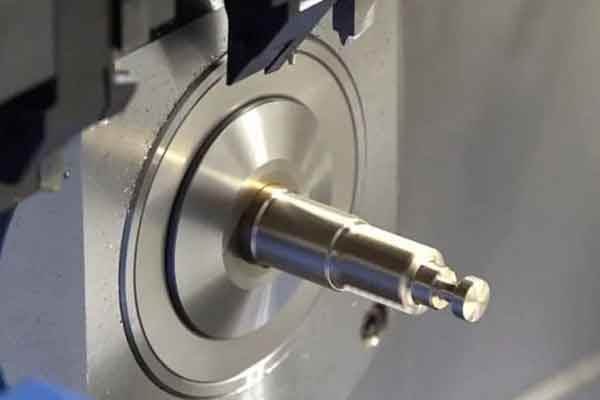

Swiss CNC machining is the preferred process for aerospace connector pins.

  • Contact diameter precisionSwiss lathes hold contact diameters to ±0.003mm roundness — ensuring reliable mating and consistent contact resistance.
  • Single-setup complexityPin body, tip geometry, crimp barrel, and retention features completed in one setup — eliminating cumulative positional errors.
  • Surface finish controlRa 0.4μm and finer on contact surfaces — essential for reliable plating adhesion and electrical contact performance.
  • Plating compatibilityPrecise dimensional control ensures uniform gold, silver, and nickel plating thickness on all contact surfaces.
Custom Aerospace Connector Pins

Why CNCPioneer for Custom Aerospace Connector Pins?

Coordinate geometry, material, finishing and inspection around the part's intended function.

Small diameter precision

Swiss lathes machine connector pin contact diameters from Ø0.5mm to Ø8mm with roundness of ±0.002mm , ensuring reliable mating and consistent contact resistance across millions of cycles.

Single-setup complete machining

Pin body turning, tip geometry, retention features, crimp barrels, and back-end details are completed in one setup, eliminating cumulative positional errors that arise from multiple operations on conventional lathes.

Surface finish control

Achieves Ra 0.4μm and finer on contact surfaces , essential for reliable plating adhesion and consistent electrical contact performance across thousands of mating cycles.

High-volume consistency

Swiss machining delivers identical dimensional output from the first pin to the millionth , supporting the statistical process control requirements of aerospace connector qualification programs.

Material versatility

Machines the full range of connector pin base materials — beryllium copper, phosphor bronze, brass, stainless steel, and Kovar — with dedicated tooling and parameters for each alloy.

Plating compatibility

Precise dimensional control and surface finish quality ensure uniform precious metal plating thickness distribution on gold, silver, and nickel plated contact surfaces.

Custom Aerospace Connector Pins We Manufacture

Explore representative configurations and share your drawing for a product-specific review.

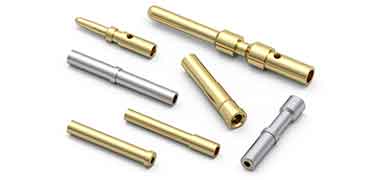

Crimp Contact Pins

Crimp Contact Pins

The most common aerospace connector pin type, featuring machined contact tip, cylindrical body, and crimp barrel for wire termination.

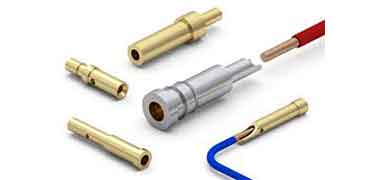

Solder Cup Contact Pins

Solder Cup Contact Pins

Precision pins with machined solder cup at the wire termination end, used in hermetically sealed connectors.

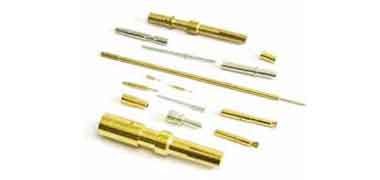

PCB Pin Contacts

PCB Pin Contacts

Straight and right-angle pin contacts for printed circuit board mounting in avionics rack systems and module connectors.

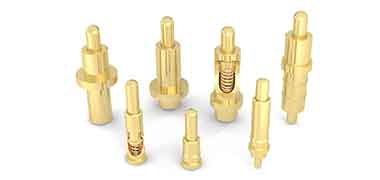

Pogo Pin Contacts

Pogo Pin Contacts

Spring-loaded contact pins for test, maintenance, and removable panel connector applications.

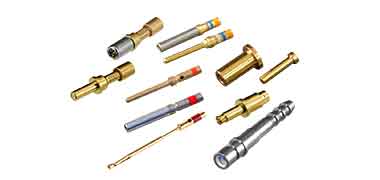

Coaxial & Micro Contacts

Coaxial & Micro Contacts

Center conductor and outer shield contact pins for RF and microwave connector applications.

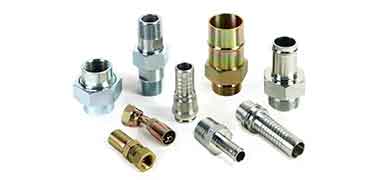

Engine Fittings & Actuation Components

Engine Fittings & Actuation Components

Heat-resistant engine compartment fittings and actuation system linkage pins in Waspaloy and Inconel 718 for turbine and high-temperature aerospace hardware.

Industries & Applications

Match the component to its operating environment, assembly interfaces and documentation requirements.

Explore machining capabilities, material options and quality support for aerospace components.

Explore aerospace machining

Materials

Materials for Custom Aerospace Connector Pins

Confirm the exact grade, delivery condition and finish compatibility with your drawing.

Special Alloy

Beryllium Copper C17200

Preferred for high-reliability aerospace crimp contacts · High yield strength · Excellent spring-back properties

Copper Alloy

Phosphor Bronze C51000

Good spring properties · Excellent corrosion resistance · Solderable · General purpose crimp contacts and PCB pins

Brass

Brass C3604

Excellent machinability · Good conductivity · High-volume standard contacts · Solder cup pins

Copper Alloy

Copper C11000 (ETP)

Highest electrical conductivity · Power contact applications · Large-size contacts in high-current connectors

Stainless Steel

Stainless 303 / 304

High strength · Non-magnetic options · Structural pin contacts · Harsh environment connectors

Stainless Steel

Stainless 316L

Superior corrosion resistance · Marine aerospace connectors · MIL-spec harsh environment applications

Inconel

Inconel 718

AMS 5662 · High-strength turbine fasteners · Oil & gas fittings · Age-hardenable

Special Alloy

Invar 36

Ultra-low thermal expansion · Precision optical connector pins · Dimensional reference contacts

Finish selection

Surface Treatments for Custom Aerospace Connector Pins

Select the finish around the specified material, functional surfaces and service conditions. Confirm process details and acceptance requirements with your drawing.

Plating selection

Gold Plating

The aerospace industry standard for high-reliability electrical contacts.

Best for
Contact, appearance or barrier requirements
Specify
Coating stack, thickness & masking
Plating selection

Silver Plating

Preferred for high-current power contacts where silver's superior electrical and thermal conductivity reduce resistive heating.

Best for
Contact, appearance or barrier requirements
Specify
Coating stack, thickness & masking
Plating selection

Nickel Plating

Used as underplate beneath gold and silver to prevent base metal diffusion into the precious metal layer.

Best for
Contact, appearance or barrier requirements
Specify
Coating stack, thickness & masking
Appearance & protection

Anodizing Type II & Type III

MIL-A-8625 compliant standard and hard coat anodizing for aluminum aerospace parts.

Best for
Specified material and service conditions
Specify
Process, color sample & thickness
Plating selection

Nickel Plating & PVD Coating

AMS 2403 compliant electroless and electrolytic nickel for aerospace connectors.

Best for
Contact, appearance or barrier requirements
Specify
Coating stack, thickness & masking
Finish selection

Chromate Conversion & Bead Blasting

MIL-DTL-5541 compliant chromate conversion coating (Alodine) for aluminum, maintaining electrical conductivity for avionics.

Best for
Drawing-specific surface requirements
Specify
Process, functional surfaces & acceptance

Production Capacity

Machining resources for drawing review, prototypes and repeat-production programs.

Swiss CNCPrecision turned components
Mill-turnCombined machining

Inspection & documentation

Quality Control for Custom Aerospace Connector Pins

Review material identity, machining datums, functional dimensions and production records for your component.

IATF 16949AS9100D
To drawingCritical dimensions
As agreedInspection scope

Final tolerances, inspection coverage and acceptance criteria are confirmed against your drawing, material and geometry.

Material Verification

Check
Specified grade, material condition and lot identity.
Verify
Material certificates and agreed identification checks.
Records
Material certificates and required traceability records.

Machining Process Control

Check
Contact geometry, mating diameters and plating allowance.
Verify
Drawing datums, setup planning and in-process inspection.
Records
Agreed critical-feature and process inspection records.

Dimensional Inspection

Check
Functional dimensions, mating features and surface condition.
Verify
Suitable measuring equipment and drawing-specific gauges.
Records
Dimensional reports and specified finish results.

Production Documentation

Check
First-piece approval, production records and delivery requirements.
Verify
The inspection plan and customer approval process.
Records
Agreed document pack, including PPAP or FAIR when required.

Agree Your Quality Document Pack

Confirm the certificates, inspection reports and production records needed for your order when sharing your drawing.

Request quality documents

Custom Aerospace Connector Pins FAQ

Which Custom Aerospace Connector Pins designs can you manufacture?

The product range includes Crimp Contact Pins, Solder Cup Contact Pins, PCB Pin Contacts. Custom geometry is reviewed against the approved drawing.

  • Include the mating interfaces, critical datums and expected order quantity.
Which materials can I specify?

Material options include Beryllium Copper C17200, Phosphor Bronze C51000, Brass C3604. The exact grade and condition should be confirmed for your application.

  • Include material certificate, finish and any restricted-substance requirements with your enquiry.
What should I include in the drawing?

Define contact geometry, mating diameters and plating allowance, together with datums, tolerances and required surface condition.

  • Include a 2D drawing and 3D model where available.
  • Identify the dimensions that affect assembly or function.
What finishing and inspection records can be requested?

Finishing options include gold plating, silver plating, nickel plating. Applicability is reviewed against the specified material and geometry.

  • Agree material certificates, dimensional reports and any PPAP or FAIR requirements with the order.
How are pricing and lead time confirmed?

Pricing and delivery are confirmed after reviewing the drawing, material availability, quantity, machining route, finishing and inspection scope.

  • Prototype and repeat-production schedules are quoted for the specific order.

CUSTOM CNC PARTS

Get a Quote for Custom Aerospace Connector Pins

Share your drawing or 3D model, material, critical dimensions, finish and order quantity. We’ll review the machining route, inspection scope and delivery requirements.

Please provide your 2D drawings and 3D CAD models so we can quote more accurately.
PDF, STEP, STP, IGES, IGS, STL, DXF, DWG or ZIP · Maximum 50 MB
