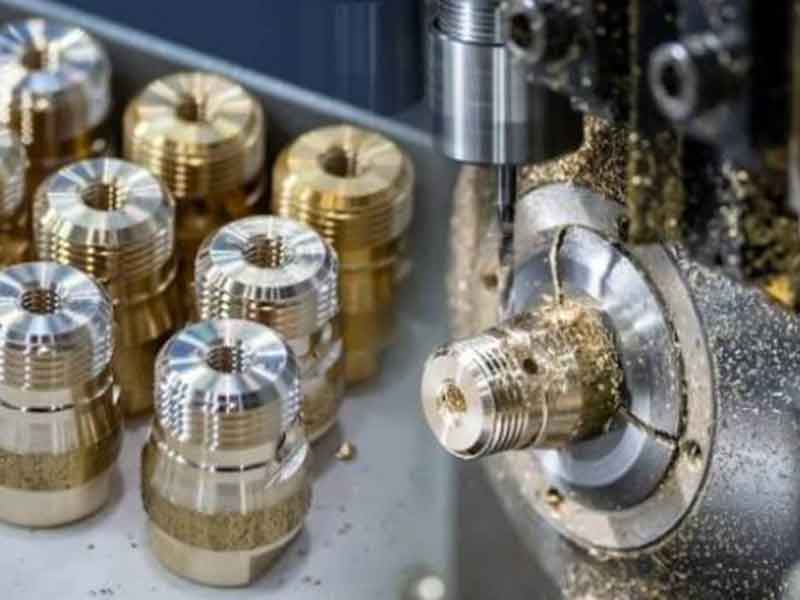

CNC Machined
Brass Parts

Consistent knurl quality at high production volume requires controlling three distinct mechanisms. First, knurl pattern tracking: for a diamond knurl pattern to track perfectly, the workpiece circumference must be an exact multiple of the knurl wheel tooth pitch. For a 0.8mm pitch diamond knurl, Ø7.64mm (circumference = π × 7.64 = 24.00mm = 30 × 0.8mm) tracks correctly; Ø7.70mm (circumference = 24.19mm = 30.24 × 0.8mm) produces a wandering "drunken knurl" pattern from 0.24 tooth-pitch non-closure after 30 teeth. CNCPioneer calculates the workpiece OD target from the knurl pitch for each new program — when the customer's designed OD is not a tracking circumference, CNCPioneer calculates the nearest tracking OD (typically within ±0.15mm of nominal) and confirms it falls within dimensional tolerance before proceeding. Second, knurl depth consistency: servo-controlled radial force on Swiss CNC and MAZAK mill-turn live tooling knurl programs ensures repeatable depth versus spring-loaded approaches that vary from setup to setup; material hardness verification per lot allows knurl force compensation for C36000 HRB 55–80 hardness variation that would otherwise produce 20–30% depth variation. Third, knurl wheel wear management: wheels replaced at defined wear intervals (sharp teeth: flat-to-peak profile with sharp peak; worn: rounded peak and reduced effective depth); in-process visual inspection every 50 pieces; depth spot measurement every 100 pieces. Pre-knurl OD is calculated from post-knurl diameter target incorporating C36000 brass diameter growth of approximately 0.05–0.15mm per 0.1mm knurl depth from material displaced outward — preventing the common error of targeting post-knurl OD at the pre-knurl turning OD and delivering parts 0.05–0.15mm oversized after knurling. Knurl acceptance: depth ±0.050mm precision; 100% visual per lot for pattern regularity, clean start/stop zones, and absence of micro-cracking at knurl peaks.

CNCPioneer's brass pipe fitting thread programs cover the complete international thread standard portfolio. NPT (National Pipe Taper, ASME B1.20.1): 1/8"–4" taper at 1:16 on diameter, 60° thread angle; L1 hand-tight engagement length per ASME B1.20.1 Table 2; NIST-traceable NPT thread gauge verification. BSP parallel (G thread, ISO 228/EN 10226-2): G1/8–G4 parallel; O-ring or washer face seal — standard for European, UK, and most Asian non-North American markets. BSP taper (R thread, ISO 7-1/EN 10226-1): R1/8–R4 tapered at 1:16 with Whitworth 55° thread angle; self-sealing like NPT but with Whitworth form — UK, Australia, many Asian and Middle East markets. DIN 2999: German/ISO tapered pipe thread for German machinery and European industrial plumbing. ISO metric M3–M100 external and internal; JIC 37° and SAE 45° flare; UNF/UNC. Thread quality verification: 100% calibrated GO/NO-GO gauge per production lot on every threaded brass part — no sampling exceptions. This is non-negotiable for pipe fitting programs where thread quality determines hydraulic sealing: a GO gauge confirms the thread is not undersized (thread will engage properly); a NO-GO gauge confirms the thread is not oversized (thread will not engage past the designed stop point). Gauge calibration per ISO 10012:2003 with NIST-traceable calibration records; gauge wear monitoring with replacement at defined intervals. Post-plating 100% thread re-gauging confirms plating thickness did not close threaded bores below minimum engagement.

Prototype lead times: standard precision brass spacer or standoff (25-piece, bright nickel plate) — 3–5 business days; brass pipe fitting body (25-piece, BSP G3/4 thread, 100% gauge) — 4–6 days; knurled brass adjustment body (25-piece, nickel plate) — 4–5 days; brass lock cylinder housing (10-piece, ±0.005mm bore) — 5–7 days; precision micro brass pin Ø1.5mm (25-piece) — 3–4 days; powder-coated brass body (10-piece, RAL color) — 5–7 days. Wholesale blanket order lead time from established programs: 2 weeks per weekly kanban release from safety stock. Volume economics: simple brass spacer Ø12×20mm — $0.39–0.58 at 100,000/year; $0.12–0.18 at 2,000,000+/year. BSP pipe fitting G3/4 body — $1.02–1.50 at 100,000/year; $0.31–0.46 at 2,000,000+/year (machined only; add plating if specified). Three-market comparison at 500,000/year for M5×20mm hex standoff bright nickel plate: European precision brass turning (Czech, German, Italian) — $0.75–$1.20/piece; Taiwanese brass precision turning — $0.42–$0.65/piece; CNCPioneer China (Shenzhen, IATF 16949) — $0.25–$0.38/piece. The 0.30× China-to-Europe ratio reflects: China precision machining operator labor ($8–14/hour versus European $35–55/hour); lower facility/equipment amortization costs; domestic Chinese brass bar at 80–85% of LME copper price versus European brass bar at 95–105%; and CNCPioneer's 78+ Swiss CNC fleet producing 50M+ parts annually providing setup cost amortization versus smaller European shops at 5M–20M. DZR brass (CW602N) premium: +8–12% over C36000 at equivalent geometry. Standard plating additions at volume: bright nickel 5μm +$0.08–0.18; tin 5μm +$0.05–0.12; gold 0.3μm on signal contacts +$0.12–0.25.

CNCPioneer's IATF 16949 automotive OEM brass parts PPAP Level 3 documentation package includes: Part Submission Warrant (PSW) signed by CNCPioneer quality manager; Design Records (customer drawing with CNCPioneer DFM engineering review comments); Engineering Change Documents (any drawing revisions incorporated since last PSW); Process FMEA covering thread gauging failure modes, alloy substitution risk (XRF incoming as prevention control), knurl depth variation (servo force control and wear monitoring as prevention), and plating thickness closing threaded features (post-plate 100% re-gauging as detection control); Process Flow Diagram (bar stock receiving → incoming XRF inspection → Swiss CNC turning → in-process gauging → thread gauging → deburring → plating dispatch → plating receipt → XRF plating verification → dimensional final inspection → packaging → delivery); Control Plan (measuring equipment, frequency, and reaction plan for every critical characteristic); MSA Gage R&R study ≤10% for laser micrometer OD measurement and thread gauge measurement from production operators on production gauges; Initial Process Capability (30-piece pilot dimensional data with Cpk for all critical dimensions; Cpk ≥1.33 minimum for PPAP approval; ≥1.67 for IATF special characteristics on production release); 8 sample parts from PPAP pilot lot; Material Test Reports (SII XRF composition per lot including As-content for DZR programs; EN 10204 3.1 mill certificate; hardness); and Appearance Approval Report where specified. The complete PPAP Level 3 package is prepared within 4–6 weeks of pilot production completion — the automotive supply chain qualification timeline that makes CNCPioneer a viable IATF 16949 brass parts supplier for automotive program timelines.
