Precision
Connector Contacts
CNCPioneer produces turned circular, crimp, socket, signal, power, cable, and custom conductive contacts for OEM assemblies. Swiss CNC turning, crimp-tail control, selective plating, low-burr finishing, and clean packaging support brass, copper, beryllium copper, phosphor bronze, stainless, and more. Qualified features reach ±0.005mm diameter and ±0.010mm concentricity; quotes arrive in 24 hours.
What Are
Connector Contacts?
Connector contacts are precision conductive components for electrical connectors, cable assemblies, sensors, test equipment, medical devices, aerospace systems, and industrial electronics. They include pins, sockets, crimp and solder contacts, spring interfaces, signal contacts, and power terminals. CNC machining forms the mating zone, retention features, insulator seat, and wire or terminal interface from controlled stock.
Reliable performance depends on geometry, alloy, conductivity, plating, contact force, crimp retention, mating cycles, burr control, and cleanliness. CNCPioneer aligns the electrical function with the machining route, critical dimensions, finish, inspection, and packaging before release.
-
Contact DFM for mating, crimp, retention, insulation, and plating We review diameter, nose profile, socket or spring interface, wire barrel, retention, insulator clearance, mating force, finish, and assembly direction before machining.
-
Swiss CNC turning for circular connector contacts Guide-bushing Swiss CNC supports small pins and sockets. CNC turning and MAZAK mill-turn centres produce larger power contacts, flanged terminals, and complex components from controlled datums.
-
Crimp contacts with controlled wire-barrel geometry DFM covers wire gauge, barrel ID and length, insulation support, pull-out target, crimp height, finish, burr control, and approved tooling.
-
24-hour quotes from a China precision factory Send a drawing or STEP file with mating data, wire size, electrical requirement, plating, tooling, and quantity. We return pricing within 24 hours and DFM feedback within 48.
Why CNCPioneer for
Connector Contacts?
Our Swiss CNC and mill-turn platform combines conductive-alloy expertise, connector and crimp DFM, selective finishing, clean packaging, and traceable documentation for OEM contact programmes. China production can provide a 40–60% cost advantage.
Conductive Material Selection for Pin, Socket, and Crimp Contacts
We balance conductivity, strength, spring force, wear, corrosion, machinability, and plating response. C14500 supports conductivity and turning; C17200 serves resilient contacts; C11000 suits high-current paths; C36000 enables economical terminals; stainless suits guide and retention features.
Circular Connector Contacts with Mating-Zone Control
We review diameter, nose, shoulder, socket or spring interface, insulation clearance, retention, depth, and mating force as one connector stack-up. This helps prevent interference, incomplete engagement, and poor alignment.
Crimp Connector Contacts with Wire Barrel and Crimp-Tool DFM
Wire barrel dimensions, conductor stop, insulation support, plating, material temper, and approved tooling are aligned to wire size, pull-out target, crimp height, and terminal retention. Checks can include insertion, crimp height, pull-out, and mating fit.
Swiss CNC Turning for Miniature High-Volume Connector Contacts
Guide-bushing Swiss CNC supports small diameters, long noses, grooves, and fine crimp tails. CNC turning and MAZAK mill-turn centres produce larger power terminals, threaded contacts, flanges, and multi-feature pins to the required tolerance.
Selective Gold, Nickel, Tin, and Silver Plating
Nickel provides a barrier, tin suits selected solderable terminals, silver supports power contacts, and gold suits signal interfaces. We review thickness, underlayer, wear, masking, dimensional allowance, corrosion, and post-plate inspection for each zone.
Connector Contacts China Supply with Clean Packaging and Documentation
Programmes can include material and plating certificates, dimensional reports, crimp or pull-out records, contact-resistance documentation, RoHS/REACH support, COC, PPAP Level 3, AS9102 FAIR, and lot traceability. Trays, tubes, reels, clean packs, and bar-coded labels are available.
Connector Contacts
Product Portfolio
We produce pins, sockets, circular and crimp contacts, signal and power terminals, solder contacts, guide contacts, and custom connector components for OEM production.

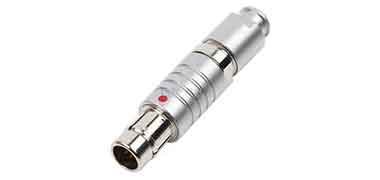

Circular Connector Contacts
Contacts for cable plugs, receptacles, medical equipment, test systems, industrial controls, and rugged assemblies. Pins, sockets, spring interfaces, insulator seats, flanges, and retention features are reviewed for diameter, mating depth, tip profile, force, clearance, and plating.

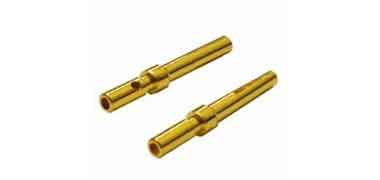

Crimp Connector Contacts
Crimp contacts for cable assemblies, sensors, industrial controls, automotive systems, and instrumentation. We control barrel ID and length, wire stop, insulation support, retention, plating, and burrs around the specified wire, tooling, pull-out target, crimp height, and mating fit.

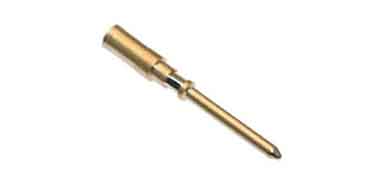

Male Pin and Female Socket Contacts
Male pins and female sockets for signal, control, power, sensor, and test connectors. Solid, hollow, slotted, spring, split-beam, and receptacle contact zones are machined to the approved design, with mating force, retention, resistance, plating, insulator fit, and cleaning reviewed.
Industries & Applications
We support OEM programmes that need stable electrical contact, repeatable mating, controlled crimp retention, clean assembly, and traceable components.
Automotive
IATF 16949 crimp contacts for sensors, battery modules, harnesses, ECUs, charging connectors, and power distribution. Programmes can include PPAP Level 3, pull-out results, plating records, geometry reports, bar-coded packaging, and scheduled delivery.
Aerospace
Contacts for aerospace connectors, avionics, flight equipment, test systems, defence electronics, cable assemblies, and rugged instruments. High-strength copper alloys, stainless, gold or nickel plating, crimp or solder interfaces, AS9102 FAIR, certificates, reports, and lot traceability are available.
Semiconductor
Contacts for circular connectors, servo systems, robots, sensors, encoders, control cabinets, and automation equipment. We review electrical function, mating cycles, vibration, force, wire gauge, tooling, plating, clean packaging, and assembly access.
Materials
Materials for
Connector Contacts
Our material platform covers brass, copper, tellurium copper, beryllium copper, phosphor bronze, stainless, nickel alloys, and customer-specified conductive materials. Selection considers current, contact force, mating cycles, heat, wear, corrosion, plating, crimp performance, and volume.
C36000 Free-Machining Brass
C36000 provides efficient turning, stable dimensions, good conductivity, and economical plating for contacts, pins, sockets, crimp terminals, and signal parts. We review the mating or wire-barrel function, plating, burr control, tooling, and electrical requirements before approval.
C11000 / C10200 Copper
C11000 or oxygen-free copper suits high-conductivity current paths. We review machinability, burr and chip control, pressure, heat, finish, oxidation protection, and crimp or solder interfaces. Parts can include solid or hollow zones, busbar seats, grooves, and selective plating.
C14500 Tellurium Copper
C14500 balances conductivity and machinability for turned contacts, crimp terminals, and power interfaces. It supports complex small features with practical chip control; current path, resistance, plating, corrosion, heat, crimp force, and stability are reviewed.
C17200 Beryllium Copper
C17200 suits spring sockets, resilient contacts, high-cycle interfaces, and crimp contacts that need strength with conductivity. Heat treatment, machining sequence, hardness, contact force, plating, safety controls, and inspection are reviewed before release.
Phosphor Bronze and Copper Alloys
Phosphor bronze and related copper alloys suit spring contacts, sockets, resilient terminals, low-friction interfaces, and corrosion-sensitive components. We review conductivity, spring force, hardness, wear, mating cycles, plating, crimpability, and availability.
303 / 304 / 316L Stainless and Special Alloys
Stainless supports guide contacts, retention features, hardware, mechanical interfaces, and corrosion-resistant parts with a separate conductive zone. 303 improves machinability, 304 suits general corrosion, and 316L suits demanding chemical or marine exposure. Other special alloys can be reviewed.
Surface Treatments for
Connector Contacts
Finishing is selected for resistance, current, mating cycles, crimp or solder performance, corrosion, wear, and cleanliness. We review thickness, masking, dimensional allowance, protection, cleaning, and post-finish inspection before production.
Nickel Plating for Barrier and Corrosion Protection
Nickel provides a barrier layer, corrosion protection, wear resistance, and a stable base for selected systems. We review thickness, resistance, mating wear, masking, crimp or solder zones, dimensional growth, and post-plate inspection.
Tin Plating for Solderable and Crimp Terminals
Tin suits solderable contacts, crimp tails, wire terminals, and selected low-resistance interfaces. We review thickness, solderability, wear, wire interface, masking, dimensional allowance, storage needs, and post-plate fit.
Silver Plating for High-Conductivity Contacts
Silver is used for high-conductivity power contacts, busbar interfaces, specialised terminals, and high-cycle surfaces. We review thickness, resistance, wear, anti-tarnish protection, masking, mating material, and packaging. Required conductivity records are available.
Gold Plating for Signal and Low-Level Contacts
Gold suits signal contacts, circular pins, pilot contacts, instrumentation, and low-level interfaces that need stable performance and corrosion resistance. We review thickness, nickel underlayer, force, mating cycles, masking, crimp or solder zones, and dimensional allowance.
Low-Burr Deburring and Contact-Zone Cleaning
Contacts need controlled edges, clean mating noses, burr-free crimp tails, and debris-free grooves. Deburring, brushing, washing, specified ultrasonic cleaning, drying, and visual inspection protect contact, spring, insulator, and crimp zones through packaging.
Laser Marking and Clean Connector Packaging
Part numbers, lot codes, orientation marks, trays, tubes, sealed bags, reels, or compartment packs can protect contacts and prevent mixed lots. We review marking, contrast, protection, cleanliness, traceability, and receiving labels for manual or automated assembly.
DFM can cover nickel, tin, silver, gold, selective plating, masking, deburring, cleaning, laser marking, resistance records, post-plate dimensions, and clean packaging.
IATF 16949 & AS9100D Quality System for
Connector Contacts
Our quality system controls four key risks: alloy identity, mating and crimp geometry, plating and cleanliness, and traceable documentation. It supports prototypes, validation, and repeat production.
Conductive Alloy, Wire, and Contact DFM
Incoming copper, brass, stainless, and special-alloy lots are checked against certificates and can receive alloy verification. DFM confirms electrical function, wire gauge, crimp barrel, mating zone, spring interface, plating, environmental needs, clearance, assembly sequence, and inspection plan before machining.
- Certificate review for C36000, C14500, C17200, C11000, phosphor bronze, stainless, and special alloys
- Contact force, cycles, wire size, tooling, plating, masking, and insulation interface reviewed
- Specified resistance or conductivity records and post-plate gauge plan defined
Swiss CNC and CNC Turning Contact Geometry Control
Swiss CNC, CNC lathes, and MAZAK mill-turn centres are selected for contact diameter, length, material, mating profile, crimp tail, features, quantity, and tolerance. Small contacts are supported close to the cutting zone; larger power contacts and flanged terminals use stable datums. Targets can include ±0.005mm diameter and ±0.010mm concentricity.
- Swiss CNC for miniature pins, sockets, signal, and circular contacts
- CNC turning and MAZAK mill-turn for power contacts, barrels, flanges, and special features
- Specified first-piece optical, CMM, pin-gauge, crimp-feature, and finish inspection
100% Critical Contact and Post-Plating Inspection
Contacts are inspected for diameter, length, nose, shoulder, groove, barrel, wire stop, retention, concentricity, burrs, and finish to the drawing. Specified plated parts receive post-plate review for thickness, contact area, appearance, dimensions, masking, and mating fit. Cleanliness and packaging condition are checked before shipment.
- 100% critical-dimension inspection for qualified programmes
- Specified post-plating diameter and contact-zone review
- Crimp, contact, insulation, burr, cleanliness, and finish checks included
Documentation — Dimensional Report, Plating Cert, Crimp Records, PPAP, and FAIR
Available documentation includes dimensional reports, material and plating certificates, alloy verification, specified pull-out or resistance records, finish readings, RoHS/REACH, COC, PPAP Level 3, and AS9102 FAIR. Lot traceability follows material, machining, plating, inspection, cleaning, and packaging records.
- Dimensional reports, contact records, certificates, and COC available
- PPAP Level 3 for automotive, EV, cable, and high-volume terminal programmes
- AS9102 FAIR for aerospace, medical, test, and precision equipment programmes
Connector Contacts FAQ
Answers for connector buyers and engineers on contact design, materials, plating, crimp performance, lead times, and quotes.
Send a 2D drawing or STEP file with contact function, material, pin or socket dimensions, mating data, wire and tooling details, plating, retention, quantity, and packaging. Without a drawing, we can review samples or photos with electrical requirements and expected volume.
Circular connector contacts are turned pins, sockets, spring interfaces, power or signal contacts, and retention parts used inside circular plugs and receptacles. Their geometry must match the insulator, mating contact, force, insertion depth, retention method, and full connector stack-up.
Crimp contacts are matched to conductor size, insulation diameter, entry, barrel dimensions, tooling, crimp height, pull-out target, retention, plating, and mating contact. DFM uses approved wire and tooling data; specified checks can include pull-out, crimp height, conductor insertion, and mating.
Yes. We support rugged circular and aerospace interfaces plus battery modules, charging systems, power distribution, and energy storage. Simple turned contacts typically take 5–8 business days after drawing confirmation; complex, plated, high-current, or documentation-heavy parts commonly take 8–15. Quotes arrive in 24 hours and DFM in 48.
Get a Quote for Connector Contacts
Upload a drawing, 3D CAD model, mating data, wire and tooling details, electrical requirement, plating, cleanliness target, quantity, or annual usage. Receive a quote within 24 hours and DFM feedback within 48.
