Spray angle accuracy specification for single-wafer spin etch nozzles derives from the geometric relationship between spray angle, nozzle standoff distance, and the spray footprint width variation that etch rate uniformity can tolerate. In a typical single-wafer spin etch tool with 10mm nozzle-to-wafer standoff: spray footprint width = 2 × standoff × tan(half_angle). For a 25° fan spray nozzle at 10mm standoff: footprint width = 2 × 10 × tan(12.5°) = 4.4mm. A ±1° spray angle error changes the footprint to 4.1mm or 4.8mm — a ±9% footprint width variation. The consequence for etch uniformity: the radial scan speed is typically tuned to the designed footprint width to achieve designed etch dose per unit wafer area. If the footprint is 9% narrower than designed (from −1° angle error), the etch dose delivered per unit area of wafer is 9% higher than designed (same flow rate covering smaller area), producing a radial etch rate signature where zones scanned by this nozzle are over-etched by approximately 9%. For a 10 nm/min HF oxide etch rate, this produces 0.9 nm/min systematic etch rate deviation — approximately 50Å (5nm) etch depth variation over a 5-second dwell time, larger than the etch non-uniformity specification of most modern single-wafer etch tools (±3% or ±3 nm for typical 100 nm oxide etch). CNCPioneer's ±1° spray angle specification from nozzle orifice geometry (V-groove angle ±0.5°; entry bore convergence angle ±0.5°) combined with spray pattern shadow verification on first-article nozzles ensures that installed nozzles produce etch rate uniformity within the tool's designed specification rather than requiring scan algorithm adjustment to compensate for nozzle spray angle manufacturing variation.

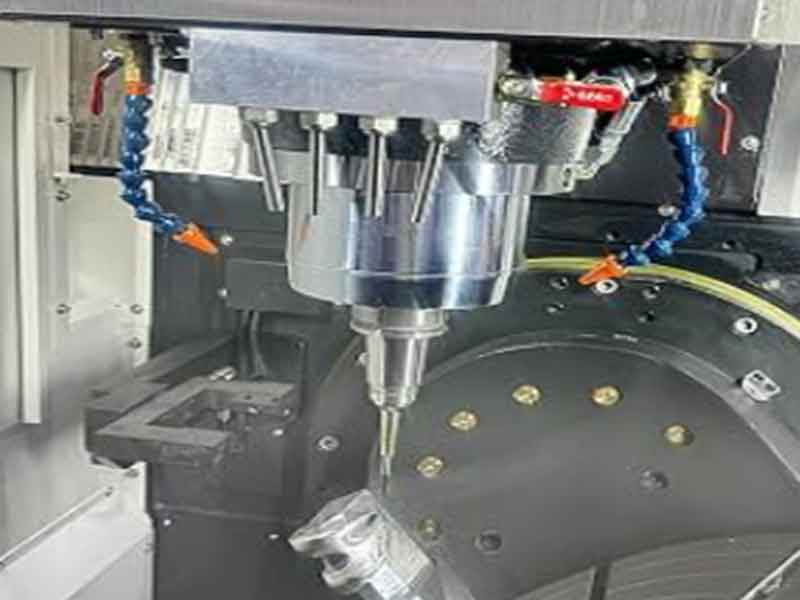

Particle generation from semiconductor wet etch spray nozzles occurs through three mechanisms. First, PTFE or fluoropolymer machining chips remaining in the orifice bore after machining — chips smaller than 0.5μm that escape visual inspection and CMM measurement are carried into the etch chemistry stream on first spray activation and deposit on the wafer surface as organic particles that produce lithography defects. CNCPioneer's post-machining ultrasonic cleaning in 18 MΩ·cm DI water at 40°C for 10 minutes removes these submicron chips from all internal bore surfaces; the ultrasonic cleaning efficiency is verified by 1L flush particle count on UHP nozzle programs. Second, orifice edge burrs — burrs at the orifice entry or exit edge created during the final orifice boring pass intermittently break off during spray operation, generating particles in the 0.1–5μm size range that contaminate the wafer as defects. CNCPioneer's orifice deburring protocol under 40× magnification with PCD deburring tool removes all burrs ≥0.005mm from the orifice edge; post-deburr 40× visual inspection confirms edge cleanliness around complete 360° circumference. Third, chemical dissolution of nozzle body material over service lifetime — fluoropolymer nozzle bodies in hot HF or piranha gradually release sub-nanometer surface layers that contribute sub-ppb fluoropolymer fragments to the etch chemistry. This mechanism is minimized by using semiconductor-grade virgin (unfilled) PTFE or PFA resins without plasticizer or colorant additives that have higher dissolution rates than the pure fluoropolymer backbone. CNCPioneer specifies and verifies semiconductor-grade virgin unfilled fluoropolymer resin — not industrial-grade filled PTFE with glass fiber or carbon fiber additives that dissolve into semiconductor chemistries as particle contaminants — for all semiconductor wet etch spray nozzle programs.

Prototype lead times: standard PFA fan spray nozzle (Ø1.0mm, 25° fan, G1/4 thread) — 5–7 business days from bar stock; PTFE full cone nozzle with integral swirl insert — 5–7 days; PVDF two-fluid atomizing nozzle body — 5–7 days; quartz nozzle with USM orifice — 8–10 days (USM machining coordination); multi-orifice array body (6-hole PTFE) — 6–8 days; Hastelloy C-276 metal nozzle body — 7–9 days; titanium ultrasonic nozzle body — 6–8 days. Spray pattern verification (flow test + angle measurement) adds 2 business days. Particle count (UHP programs) adds 1 day. Volume OEM nozzle programs: at 1,000–5,000 nozzles annually (typical consumable volume for a 3–4 tool semiconductor fab with 6-month replacement cycle), 30–45% unit cost reduction from prototype; 2–3 week monthly release with material safety stock. At 5,000–20,000 nozzles annually (regional OEM consumable supply program), 45–58% reduction; 2-week blanket releases; PPAP Level 3 qualification. At 20,000–100,000 nozzles annually (large semiconductor equipment OEM spare parts program), 58–66% reduction; dedicated Swiss CNC capacity; 4-week finished goods safety stock. Representative economics: a PFA precision fan spray nozzle (Ø1.0mm orifice, 25° fan, G1/4 thread, flow-rate-verified) that costs $45 from a US specialty fluoropolymer nozzle machining facility costs approximately $24 at CNCPioneer's prototype — and $8–12 at 10,000 annual units in semiconductor wet etch spray nozzle China production. For a semiconductor equipment OEM supplying 15,000 replacement nozzles annually, China wet etch spray nozzle manufacturer savings of $18–24 per nozzle produce $270,000–$360,000 annual spare parts program cost reduction.
