CNCPioneer delivers IATF 16949:2016 certified automotive swiss machining for high-volume precision components — from fuel system parts to EV drivetrain hardware, with full PPAP documentation and SPC monitoring.

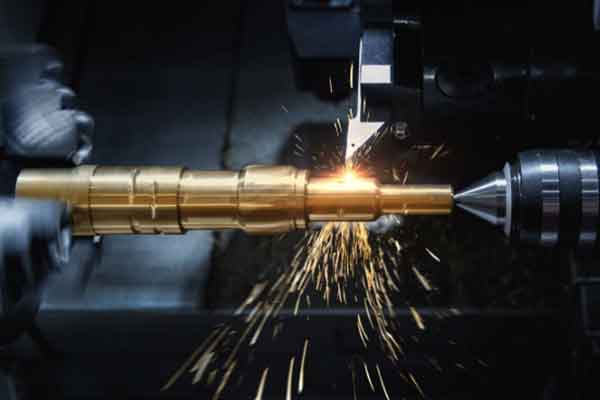

Automotive swiss machining is the production of precision components on Swiss-type CNC lathes for automotive powertrain systems, transmission assemblies, fuel systems, braking systems, sensor housings, and electric vehicle drivetrain components. The workpiece is fed through a guide bushing that supports the material immediately at the cutting zone — eliminating deflection on long, slender components and maintaining dimensional consistency throughout the cut.
Automotive programs demand IATF 16949:2016 quality management, APQP planning, FMEA risk analysis, PPAP submission, and ongoing SPC monitoring. These are not documentation exercises — they are the operational framework governing every automotive swiss-type CNC machining part CNCPioneer produces, from prototype through multi-million piece production runs.
High volumes, tight tolerances, complex geometries, and the need for absolute dimensional consistency across millions of production cycles define the automotive supply chain's expectations of its precision machining suppliers.
Swiss machining delivers identical dimensional output from the first part to the ten-millionth, supporting the Cpk ≥ 1.67 statistical process capability requirements of IATF 16949 automotive supply chain qualification.
Automotive swiss-type machining steel, brass, and aluminum parts machine significantly faster on Swiss-type lathes than conventional CNC turning, reducing per-part cost at high volumes where material and machining cost drive program profitability.
Multi-axis Swiss lathes complete turning, milling, drilling, threading, knurling, and grooving in one setup, eliminating re-fixturing errors and additional handling that add cost and variation to multi-operation automotive component production.
CNCPioneer's CCD automatic sorting systems provide 100% dimensional verification of critical automotive features at production speeds, eliminating manual inspection bottlenecks on high-volume programs.
Our certified quality management system meets automotive Tier 1 supplier qualification requirements, including APQP, FMEA, MSA, SPC, and PPAP capability for new automotive program launches.
Swiss machining's precision and material versatility position CNCPioneer to supply terminal pins, sensor components, and drivetrain hardware demanded by the rapidly growing electric vehicle market.
CNCPioneer manufactures precision automotive swiss-type machining parts across the full spectrum of vehicle systems — from conventional powertrain hardware to electric vehicle drivetrain and charging system components.
Precision fuel injector components, fuel rail fittings, high-pressure fuel pump shafts, and valve bodies in stainless steel and brass with 100% CCD sorting for leak-critical dimensions.
Precision shafts, selector forks, valve body spool valves, and transmission sensor components for automatic, dual-clutch, and continuously variable transmissions.
Precision housings for wheel speed, crankshaft, camshaft, knock, oxygen, and pressure sensors throughout the vehicle — consistent O-ring grooves and thread geometry for reliable sealing.
ABS sensor components, brake caliper pins, master cylinder components, and electrohydraulic brake actuator parts with 100% dimensional verification and full material traceability.
High-precision rotor shaft components, resolver sensor targets, motor position encoder hardware, and power electronics mounting components for BEV and HEV drivetrain systems.
Precision terminal pins, socket contacts, and connector hardware for CCS, CHAdeMO, and proprietary OEM EV charging connector designs — supplied to Harman, Bose, and JBL supply chains.
CNCPioneer supplies IATF 16949 certified automotive swiss machined components to OEMs, Tier 1 suppliers, and electric vehicle manufacturers across the full automotive supply chain.
Swiss machining supports the high-precision, high-volume demands of powertrain and fuel system production — delivering consistent component quality across OEM production schedules with full PPAP qualification support.
EV programs demand ultra-precision machining for drivetrain and motor positioning hardware, where dimensional accuracy directly affects motor efficiency, noise levels, and vehicle range..
Ultra-precision swiss machined drivetrain components, resolver targets, motor position hardware, and EV charging terminal pins for battery electric and hybrid electric vehicle programs.
Precision housings, mounts, and mechanical interface components for radar sensors, LiDAR units, camera modules, and ultrasonic parking sensors for ADAS and autonomous driving systems.
Precision valve spools, shafts, synchronizer components, and hydraulic control hardware for automatic, DCT, and CVT transmission system manufacturers.
Replacement automotive components with full documentation, certificate of conformance, and RoHS/ELV compliance for automotive aftermarket and MRO supply chain programs.
CNCPioneer's Swiss machining facility in Shenzhen operates with dedicated automotive production protocols, IATF 16949 quality system compliance, and SPC-driven process control. Our capability envelope covers the complete range of automotive swiss machining requirements.
78+ Swiss CNC lathes: Star SR-32J, Citizen A20/A16, Tsugami B206, Nomura. Up to 9-axis simultaneous Swiss turning with high-pressure coolant for steel and stainless steel automotive parts.
Standard ±0.01mm · High-precision ±0.005mm · Roundness ±0.002mm · Concentricity ±0.003mm · Surface finish Ra 0.4μm achievable; 100% CCD sorting for safety-critical dimensions.
Ø1mm – Ø32mm diameter range covering the full automotive component size envelope from EV charging terminal pins to transmission valve spool bodies and fuel system fittings.
Prototype quantities for PPAP sample runs through multi-million piece annual production programs. Blanket orders with scheduled release quantities available for high-volume automotive programs.
SPC real-time monitoring with Cpk ≥ 1.67 targets · APQP launch planning · Process FMEA · MSA/Gage R&R studies · 100% CCD automatic sorting for safety-critical features.
PPAP Levels 1–5 supported · Dimensional results (30-piece min.) · Process capability studies (Cpk) · Control plans · PFMEA · RoHS/ELV compliance certificates with every shipment.
CNCPioneer machines all primary automotive alloys on our Swiss lathe fleet — from brass C3604 and stainless 303/304 for sensor bodies and fuel fittings, to 17-4PH stainless and alloy steels for EV drivetrain and high-load applications.
Most-machined automotive grades · Sensor housings · Fuel system fittings · Brake components
Enhanced corrosion resistance · Fuel system components · Brake fluid hardware · Road salt environments
H900 condition · EV drivetrain shafts · High-strength fuel system high-pressure components
High hardness, wear resistant · High-wear valve components · Bearing shafts · Turbocharger hardware
Excellent machinability · Fuel fittings · Sensor bodies · EV charging terminals · Most-machined brass
Cartridge brass · Good corrosion resistance · Fluid system connector bodies · Valve seats
Highest conductivity · High-current EV power terminals · Grounding hardware · DC fast charging contacts
High-temperature strength · Turbocharger shafts · Exhaust system components · Extreme heat environments
Lightweight sensor housings · Weight-critical components · Good machinability · Common automotive aluminum
High fatigue resistance · Structural automotive hardware · Weight-critical powertrain components
Die-cast grade · Good fluidity · Transmission housings · Engine component bodies
Case-hardening grades · Gear shafts · Transmission components · Bearing races · Excellent wear resistance
Free-machining grades · High-volume turned components · Sensor bodies · Maximum machinability
High toughness · Excellent fatigue life · High-load drivetrain components · Structural fasteners
Automotive swiss-type machining parts require surface treatments that meet specific corrosion resistance, wear resistance, and RoHS/ELV environmental compliance requirements within automotive cost constraints. CNCPioneer provides a full range of automotive-qualified finishing options.
Most cost-effective corrosion protection for automotive steel parts. Electrolytic zinc per ISO 4042 with trivalent chromate passivation — RoHS and ELV compliant. Salt spray resistance 120–500 hours.
ASTM A967 compliant passivation for stainless steel automotive sensor housings, fuel system components, and brake hardware operating in corrosive fuel, brake fluid, and road salt environments.
Uniform hardness coating for complex automotive component geometries including valve spools, sensor bodies, and fluid system fittings. AMS 2404 and OEM specification compliant. Excellent corrosion and moderate wear resistance.
MIL-A-8625 and OEM specification compliant anodizing for aluminum automotive components. Type III hard coat for maximum wear resistance on structural parts; Type II for sensor housings and electronic enclosures.
Matte tin plating for EV charging terminal pins and automotive connector contacts — RoHS compliant with minimized tin whisker risk. Hard chrome (HRC 70) for maximum wear resistance on transmission valve spools and actuator shafts.
Manganese phosphate for automotive steel parts requiring corrosion resistance and improved lubricant retention in sliding contact applications. Black oxide provides cost-effective protection with minimal dimensional change for steel fasteners and pins.
Automotive surface finishing certifications — including passivation, zinc plating, and anodizing certifications — are provided with every automotive shipment. RoHS and ELV compliance certificates accompany all finishing operations as part of our IATF 16949 quality documentation package.
CNCPioneer's IATF 16949:2016 certification is the operational framework that governs every automotive swiss machining part we produce — from contract review and APQP planning through PPAP submission and ongoing production control.
Engineering and quality review of automotive drawing requirements, critical characteristics, special characteristics (SC/CC), PPAP submission level, and customer-specific requirements before program launch.
SII XRF composition verification on incoming bar stock; hardness testing; dimensional verification; material certifications and RoHS/ELV compliance documentation retained with full lot traceability.
Complete PPAP package preparation including dimensional results, material certifications, process capability studies (Cpk), MSA/Gage R&R, process flow, PFMEA, control plan, and appearance approval as required by customer submission level.
Real-time SPC monitoring of critical automotive dimensions; control charts maintained with Cpk ≥ 1.67 targets; 100% CCD automatic sorting for safety-critical dimensions; immediate containment response to out-of-control signals.
Mitutoyo CMM (±0.001mm) full dimensional report; surface roughness verification; thread gauge verification; visual inspection; AQL sampling per customer control plan requirements for non-critical features.
Certificate of Conformance, dimensional report, material certifications, RoHS/ELV compliance certificates, and PPAP approval reference with every automotive shipment as standard practice.
CNCPioneer's IATF 16949:2016 certification confirms our quality system has been independently audited and approved to meet automotive supply chain requirements — delivering the PPAP documentation, SPC data, and process discipline that automotive programs demand.
Full PPAP submission capability for Levels 1–5. Level 3 packages include dimensional results (30-piece min.), material certifications, process capability study, MSA/Gage R&R, process flow, PFMEA, control plan, and appearance approval.
Real-time SPC monitoring of critical automotive dimensions with Mitutoyo gauging integrated with SPC software. Control charts maintained for critical characteristics with Cpk targets of ≥ 1.67 for safety-critical automotive features.
CCD automatic sorting systems provide 100% dimensional verification of critical automotive features at production speeds — eliminating manual inspection bottlenecks on high-volume programs and ensuring zero escape on safety-critical dimensions.
Certificate of Conformance, CMM dimensional report, material certifications, RoHS/ELV compliance certificates, and PPAP approval reference packaged with every automotive shipment as standard practice.
Common questions from automotive OEMs, Tier 1 suppliers, and electric vehicle manufacturers about our IATF 16949:2016 certified automotive swiss machining service.
IATF 16949:2016 is the international quality management standard for automotive production and service part organizations. CNCPioneer's certification confirms our quality system has been independently audited and approved to meet these automotive supply chain requirements — including APQP, FMEA, PPAP, MSA, and SPC. For customers, it means we can deliver the PPAP documentation, SPC data, and process discipline that automotive programs require without extensive customer-funded supplier development activities.
CNCPioneer supports PPAP submission levels 1 through 5 as defined in the AIAG PPAP manual. Level 3 full PPAP — the most commonly required level for new automotive component programs — includes design records, process flow diagram, process FMEA, control plan, MSA/Gage R&R study, dimensional results for a minimum of 30 parts, material test results, initial process capability study (Cpk), and appearance approval. Our quality team prepares complete PPAP packages and manages customer portal submission for Tier 1 and OEM customers.
For automotive special characteristics and safety-critical dimensions, CNCPioneer targets Cpk ≥ 1.67 as required by IATF 16949 for new program PPAP approval. Our CCD automatic sorting systems provide 100% verification of critical dimensions at production speeds, and our SPC monitoring maintains real-time process capability visibility throughout production. Initial capability studies during PPAP are conducted on minimum 30-piece sample runs with full dimensional measurement and capability index calculation.
Automotive swiss-type machining parts are precision components produced on Swiss-type CNC lathes featuring a guide bushing support system that eliminates workpiece deflection at the cutting zone. This process delivers the dimensional consistency, complex geometry capability, and high-volume repeatability that automotive OEM and Tier 1 supply chain requirements demand. CNCPioneer produces the full range of parts — from fuel system components and transmission hardware to EV drivetrain parts and sensor housings — in materials from brass and aluminum to steel and stainless steel alloys.
CNCPioneer accepts orders from prototype quantities through multi-million piece annual production programs. For automotive PPAP programs, we typically produce a minimum of 30–300 pieces for initial capability studies. Production programs have no minimum order quantity restriction, though per-part economics favor volumes of 1,000 pieces and above. Long-term blanket orders with scheduled release quantities are available for high-volume automotive programs.
Yes. CNCPioneer verifies RoHS and ELV restricted substance compliance using our SII X-ray fluorescence analyzer, which measures lead, cadmium, mercury, hexavalent chromium, and other restricted substance levels in base materials and surface coatings. RoHS and ELV compliance certificates are provided with every automotive swiss-type machining part shipment. For plating and surface treatment processes, we work with qualified finishing suppliers who maintain their own RoHS compliance documentation for inclusion in the shipment package.
CNCPioneer manufactures precision terminal pins, socket contacts, and connector hardware for CCS (Combined Charging System), CHAdeMO, and proprietary OEM EV charging connector designs. EV charging terminals require tight contact diameter tolerances for reliable connector mating, precise surface finishes for uniform plating distribution, and material selection optimized for the high current densities of DC fast charging applications. We supply EV charging terminal components to Harman, Bose, and JBL automotive electronics supply chains.
For prototype and PPAP sample quantities using in-stock materials (brass C3604, stainless steel 303/304, aluminum 6061), we deliver first samples in 3–5 days. Full PPAP submission packages including capability studies require 2–3 weeks to complete after first sample approval. Production releases under approved PPAP programs are completed in 2–4 weeks depending on quantity, with dedicated capacity programs offering shorter scheduled lead times for high-volume blanket orders.
Upload your automotive component drawing or CAD file and receive a free DFM review and competitive quote within 24 hours. CNCPioneer's automotive engineering team will review your component for manufacturability, confirm IATF 16949 quality system applicability, identify special characteristics requiring SPC and 100% sorting, and provide a complete quotation including PPAP documentation requirements for your program launch.
