Precision Swiss Machined Parts
for OEM Applications
CNCPioneer manufactures small, complex, tolerance-critical metal components using Swiss-type CNC machining — from prototype to high-volume production.
What Are Swiss
Machined Parts?

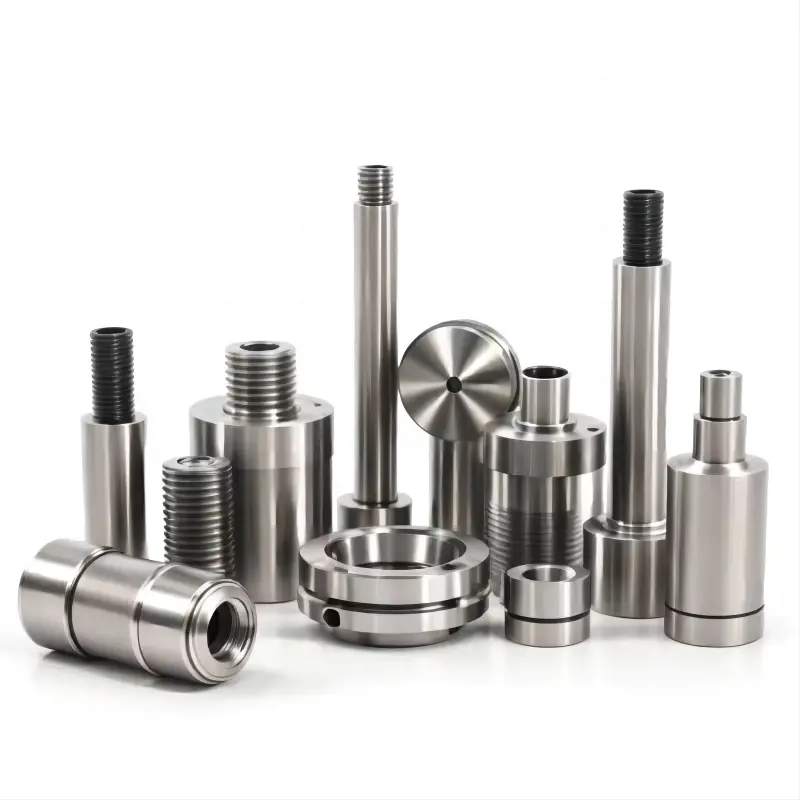

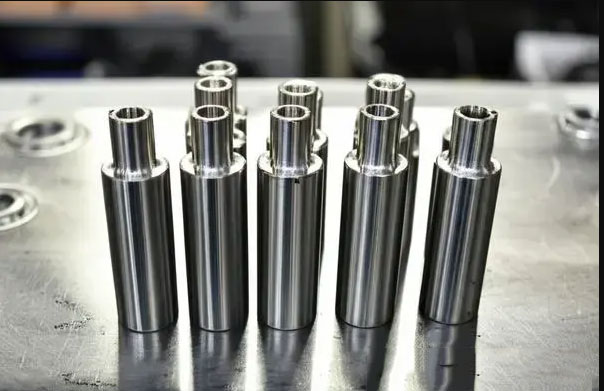

Swiss machined parts are precision turned components produced on Swiss-type CNC machines. Unlike conventional turning, Swiss machining supports the material close to the cutting point — reducing deflection and improving stability when machining small, slender, or complex geometries.
This process is especially suitable for parts with tight tolerances, long length-to-diameter ratios, and multiple features such as threads, grooves, cross-holes, flats, and milled details.
-
Guide-bushing support Material held close to the cut — minimises deflection on small diameters.
-
Tight tolerances Down to ±0.005 mm across full production runs.
-
Multi-feature in one cycle Threads, grooves, cross-holes, and flats — no re-fixturing needed.
-
Long L/D ratios Ideal for slender shafts and pins that challenge conventional lathes.
Is Swiss Machining Right
for Your Part?
Swiss machining solves specific problems that conventional CNC turning struggles with. If your part matches any of the criteria below, it's a strong candidate for the Swiss process.
Small diameter
Part diameter under Ø25 mm — especially under Ø6 mm where conventional lathes lose rigidity and dimensional control.
High length-to-diameter ratio
Slender shafts or pins where L/D > 3:1 — guide-bushing support keeps the part stable at the cutting point, preventing deflection.
Tight tolerances required
Applications demanding ±0.01 mm or tighter on diameter, runout, or position — Swiss machining maintains this across full production runs.
Multiple features on one part
Parts with threads, grooves, cross-holes, or flats that would need re-fixturing on a conventional lathe — completed in a single cycle here.
High repeatability across batches
OEM components where dimensional consistency from piece to piece and batch to batch is critical to downstream assembly.
Difficult-to-hold materials
Brass, stainless, titanium, or free-machining alloys where chip control and surface finish are harder to manage at small diameters.
Swiss Machined Parts We Commonly Produce
Our Swiss machining capability is best suited for small, precise, feature-rich components used in demanding assemblies and systems.

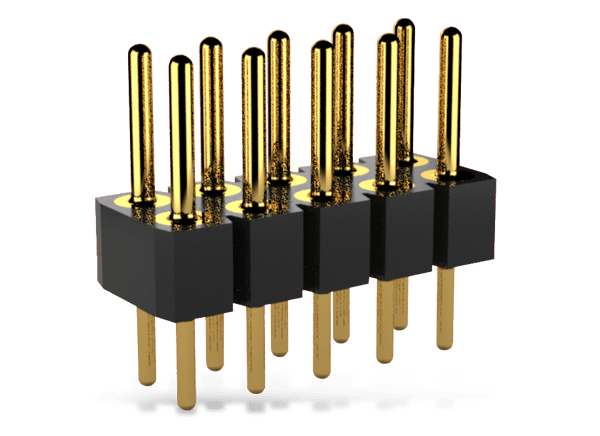

Connector Pins & Contact Pins
Custom connector pins, terminal pins, spring contact components, and precision electrical contacts for electronics, automotive, and interconnect applications.

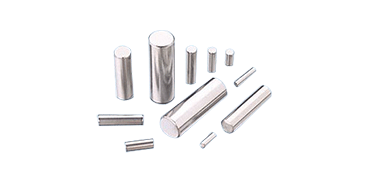

Precision Shafts
Small-diameter shafts, stepped shafts, eccentric shafts, and turned shaft components requiring stable concentricity and repeatable dimensions.

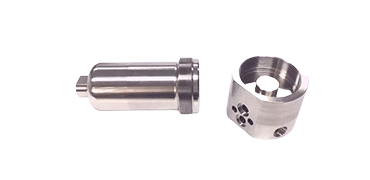

Valve Components
Precision valve bodies, miniature valve sleeves, spool-related components, and turned fluid-control parts for technical applications.

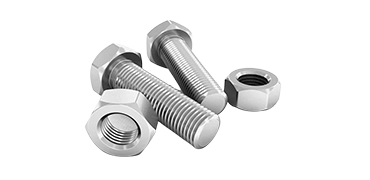

Threaded Fittings & Fasteners
Custom threaded parts, fittings, inserts, miniature fasteners, and machined joining components for mechanical and fluid systems.

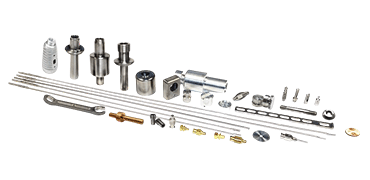

Medical Precision Components
Small turned parts for medical devices and assemblies where dimensional control, material traceability, and clean finishing may be required.

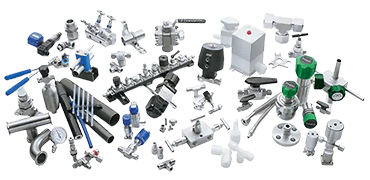

Semiconductor & Clean-Application Parts
Precision contact parts, guide elements, and high-cleanliness machined components used in sensitive equipment environments.
Industries We Support
CNCPioneer supplies Swiss machined parts for a wide range of applications where precision, consistency, and part reliability are essential.

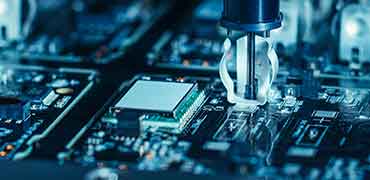

Electronics & Interconnect
Precision pins, contacts, and miniature turned components for electronic assemblies and connector systems.

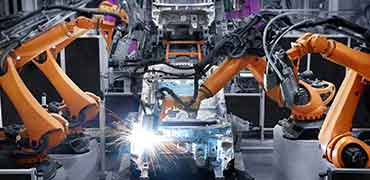

Automotive & New Energy
High-volume precision parts for connectors, terminal systems, sensor-related assemblies, and other demanding vehicle applications.

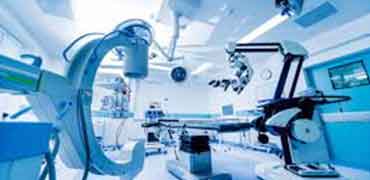

Medical Devices
Small machined components for instruments, assemblies, and technical device applications requiring stable dimensional control and material consistency.

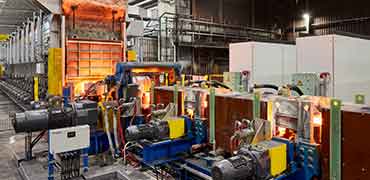

Industrial Equipment
Custom turned parts for automation, robotics, fluid systems, and precision mechanical assemblies.

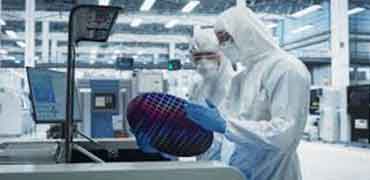

Semiconductor Equipment
High-precision parts for equipment systems that demand clean finishes, stable geometry, and reliable performance.
Aerospace & Advanced Engineering
Specialized machined components for applications where traceability, consistency, and engineering review are especially important.
Swiss Machining Capabilities
at CNCPioneer
We support custom Swiss machined part programs from prototype through repeat production. Our capability focus is on small, high-precision metal components that require tight control, consistent geometry, and scalable manufacturing support.
Diameter Range
Ø0.5 mm to Ø25 mm, covering connector pins, miniature shafts, and small valve components.
Tolerance Capability
Down to ±0.005 mm depending on geometry, material, and feature requirements.
Part Categories
Shafts, connector pins, contact pins, valve components, fittings, fasteners, and precision turned parts.
Production Mode
Prototype, pilot run, and volume manufacturing. Scalable from first article to repeat orders.
Process Type
Swiss-type CNC turning with integrated secondary features — threading, grooving, cross-drilling, milling.
Engineering Support
DFM review, manufacturability input, and quote review based on drawings or samples.
Materials for Swiss Machined Parts
We support a range of commonly specified materials for Swiss machined parts, allowing us to match performance needs across conductivity, corrosion resistance, strength, wear resistance, and surface requirements.
303
Free-machining grade · Good corrosion resistance · Ideal for complex turned parts
304 / 304L
General-purpose grade · Weldable · Widely used in industrial and food applications
316 / 316L
Enhanced corrosion resistance · Marine & medical grade · Molybdenum-bearing
410 / 440C
Martensitic grades · Hardenable · Good wear resistance for mechanical components
C3604 Brass
Excellent machinability · Most common brass for Swiss turning · Connector pins & fittings
C3602 Brass
High-speed machining · Good dimensional stability · Widely used in precision hardware
C11000 Copper
High electrical & thermal conductivity · Used in contacts, busbars, and connectors
Beryllium Copper
High strength + high conductivity · Springs, contacts, connectors requiring fatigue resistance
6061-T6
Excellent strength-to-weight ratio · Good anodizability · General-purpose precision parts
2024
High strength aerospace grade · Good fatigue resistance · Structural applications
7075
Highest-strength aluminum · Aerospace & defense · Excellent machining characteristics
Titanium Alloys
Ti-6Al-4V · Biocompatible · High strength-to-weight · Medical & aerospace applications
Tool & Bearing Steel
High hardness · Wear-resistant · Precision mechanical components and tooling inserts
POM (Delrin) · PTFE
Low friction · Chemical resistance · Lightweight alternatives for non-metallic requirements
Finishing Options for
Swiss Machined Parts
In addition to machining, we support finishing and secondary processes that improve corrosion resistance, conductivity, cleanliness, wear performance, and appearance.
Deburring & Polishing
Removes sharp edges and surface burrs from machined parts. Improves handling safety and prepares surfaces for downstream finishing or assembly.
Passivation
Electrochemical treatment for stainless steel parts. Removes free iron from the surface and enhances the natural oxide layer for improved corrosion resistance.
Electropolishing
Electrochemical process that removes a thin surface layer, resulting in ultra-smooth, bright finishes. Commonly specified for medical and semiconductor components.
Plating
Electroplated coatings including nickel, tin, and gold. Improves conductivity, corrosion protection, solderability, and contact reliability for connector and electronic parts.
Anodizing
Electrochemical surface treatment for aluminum parts. Builds a hard, corrosion-resistant oxide layer. Available in natural and colored finishes depending on project requirements.
Black Oxide & Other Finishes
Black oxide for mild corrosion protection and appearance on steel parts. Additional project-specific finishes available — confirm requirements at the quoting stage.
Surface finish requirements often affect part performance as much as machining quality. We review finishing specifications together with geometry, tolerance, and material during the quote stage.
From Drawing Review to Finished Parts
Our workflow is designed to help customers move from concept to qualified production with fewer surprises and better engineering communication.
Drawing Review & Feasibility Assessment
Send your 2D drawing, 3D file, or physical sample. Our team reviews geometry, material, tolerances, and critical features to confirm process fit.
Quotation & Engineering Feedback
We provide a quote based on part requirements, quantity, material, and finishing needs. We also suggest DFM improvements when needed.
Sample or First Article Production
For new projects, we provide sample parts or first articles for dimensional review and approval before moving into larger quantities.
Swiss-Type CNC Production
Parts are produced using Swiss machining for controlled turning performance, stable dimensional output, and efficient processing of feature-rich geometries.
Finishing & Secondary Operations
Parts move into finishing steps such as deburring, polishing, passivation, anodizing, plating, or other specified treatments.
Inspection, Documentation & Shipment
Parts are inspected per project requirements, packed appropriately, and delivered with supporting quality documents when specified.
Quality-Focused Manufacturing
for Precision Parts
At CNCPioneer, quality planning begins at the drawing review stage and continues through production, finishing, inspection, and shipment — not as an afterthought, but as part of the process.
Engineering Review
Every project begins with a structured review of your drawing, tolerances, material, and critical features before production is confirmed.
- Geometry & tolerance review
- DFM feedback when needed
- Material & process confirmation
In-Process Control
Dimensional stability is maintained throughout the run with process monitoring, first-article checks, and operator inspection at key stages.
- First-article verification
- In-process dimensional checks
- Batch consistency monitoring
Inspection
Parts are inspected against drawing requirements using appropriate measurement tools. Scope is planned based on feature criticality and project needs.
- CMM & optical measurement
- Critical dimension reporting
- Surface finish verification
Documentation & Delivery
Parts ship with supporting quality documents where specified. Packaging is planned to protect critical surfaces and dimensions during transit.
- Inspection records on request
- Material certificates available
- Protective packaging for precision parts
Swiss Machined Parts FAQ
Common questions from engineers and buyers about our Swiss machining service.
Swiss machined parts are precision components made on Swiss-type CNC machines, which are especially suitable for small, slender, and complex turned parts that require tight tolerances and strong repeatability.
Swiss machining is often the better choice when your part has a small diameter, a long length-to-diameter ratio, or multiple precision features that would be difficult to control with standard turning.
Common materials include stainless steel, brass, copper alloys, aluminum, titanium, and selected engineering plastics. Material choice depends on the application, tolerance, finish, and cost target.
Tolerance capability depends on material, geometry, part size, and feature type. For many Swiss-machined applications, we support tolerances down to ±0.005 mm after engineering review.
Connector pins, shafts, valve parts, fittings, miniature fasteners, and other small, feature-rich turned components are ideal candidates for Swiss machining.
Yes. We support prototype samples, pilot runs, and ongoing production programs depending on your project requirements and quantities.
Yes. Depending on the project, we can support deburring, polishing, plating, anodizing, passivation, electropolishing, and other finishing processes.
Send us your drawing, material requirement, quantity, and any key tolerance or finish notes. Our team will review the part and provide a quote based on manufacturability and production needs.
Need a Reliable Supplier for Swiss Machined Parts?
Send your drawing or sample to CNCPioneer for engineering review. We help OEMs and buyers develop custom Swiss machined parts for demanding applications with a focus on precision, consistency, and production readiness.
